80 cm Induction Hob
Verified by manufacturer 1 day ago
Flex induction plus hob with dual light slider and home connect for maximum flexibility.
Application
For domestic applications.
Description

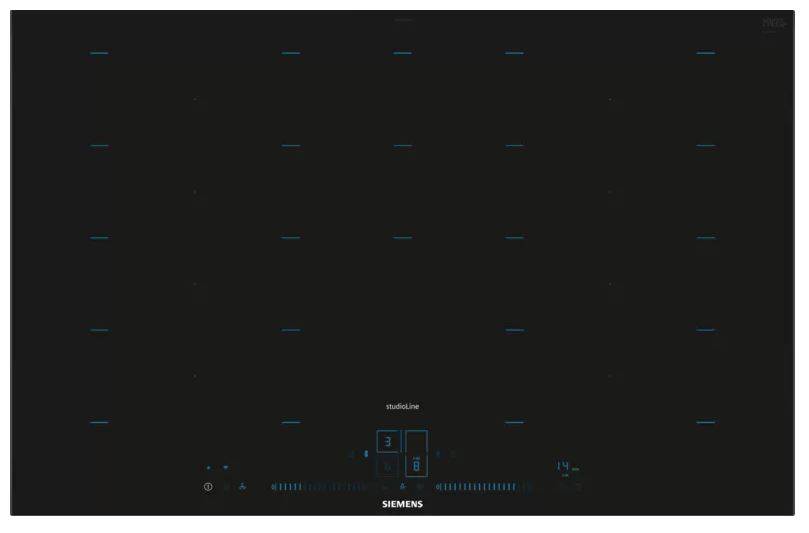

Induction hob, 80 cm in black.
Features and benefits:
- activeLight – sleek blue light bars move with each pots.
- flexInduction Plus – smart, extendable cooking zone adapts to the users cookware.
- Dual light slider – touch and slide to control the hob.
- Home Connect: integrate the hob into a intelligent kitchen.
- Control different functions of the hood, like power level or light, directly from the cooktop (with matching hood) - cookConnect system.
Model:
- EX878LYV5E: 80 cm zone light hob, blue zone light user guidance, blue dual light slider control, two Flex Plus zones, frying sensor plus, cookConnect, home connect, studioLine black steel trim, 7.4 kW.
General information
Color | Black |
Material | Ceramic Steel Glass |
Shape | Rectangle |
Length | 520 mm |
Width | 812 mm |
Height | 51 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N12/330 Cooking equipment N12/330 Cooking equipment N11/360 Appliances N11/40 Appliances |
Specification data - Built-in electric hobs
Hob arrangement | Ceramic hob with two extended flex cooking zones.Guidance for specification option: Cooking zones will be automatically joined or separated based on the shape and size of the cookware placed. Two extended flex induction zones: use cookware of any shape or size anywhere within the 40 cm long zone or even place it laterally.
|
Dimensions | |
Width (maximum) | 812 mm. |
Depth (maximum) | 520 mm. |
Rating | 7.4 kW. |
Electrical supply | 220–240 V. |
Material and finish | Ceramic black. |
Features | Automatic safety cut-out. |
Frequency | 50-60 Hz. |
Cable length | 110 cm. Manufacturer guidanceLength electrical supply cord. |
Control | Dual light slider blue. |
Heating element | Power of second heating element: 3.3 kW. |
Integral accessories | Adjustment strip 750–780 mm. |
Accessories | Not required. HZ9TY010: Teppan Yaki. HZ9SE060: Six pieces set. HZ9SE040: Four pieces set. HZ9SE030: Set of two pots and one pan. |
Sustainability data
Material | Ceramic Steel Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

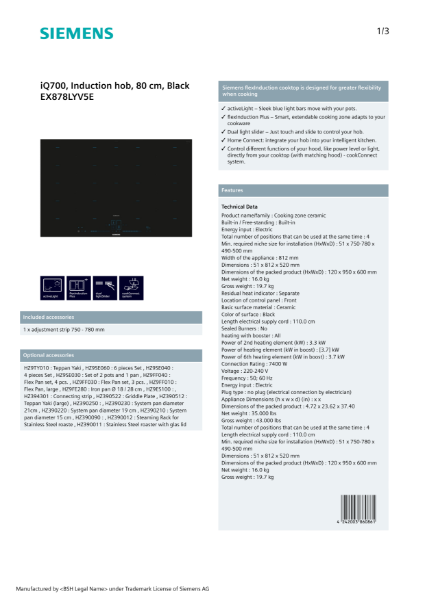

iQ700, Induction hob, 80 cm, Black EX878LYV5E
