NBS Source
I'm a manufacturer

3D Ceiling Tile S-5.28

Verified by manufacturer 3 days ago

Autex Acoustics Ltd Third party certifications:
  • Declare

    Declare

    Certificate type

  • HPDC Certification

    HPDC Certification

    Certificate type

  • EPD

    EPD

    Certificate type

Moulded ceiling tile

Jump to:
BOS
 +44 (0)1422 418 899 Website

Application

Ceiling mounting - for residential, office, education, retail, hospitality and commercial interiors.

Description

Three-dimensional acoustic ceiling tiles that provide an alternative to traditional composite ceiling tiles. Project new landscapes in suspended ceiling grid systems with 3D Ceiling Tiles.


Features and benefits:

  • Control noise in interior environments and create unique sculptural features
  • The hollow design creates an air gap, improving acoustic performance
  • These can be scattered throughout a ceiling to add depth and texture
  • Match the ceiling colours and other soft finishes
  • Lightweight
  • Easily retrofittable
  • Available in five designs
  • Easily customisable
  • Carbon neutral
  • Made locally

General information

Color

Beige

Black

Blue

Cream

Gold

Show more

Manufacturer guidance

Wide range of colours available.

Finish

Smooth

Material

Polyester fibre (PET)

Shape

Square

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary
Ss_30_25_22_01 Acoustic baffle suspended ceiling systems

CAWS

K10/215 Suspended ceiling system

K40/115 Unit/ modular suspended ceiling system

K40/105 Suspended ceiling system

K40/265 Infill units

K45/120 Existing suspended ceiling system

K45/160 Board-suspended ceiling system alterations

Specification data - Sound attenuator infill units

Form

Panel.

Rigidity

Semi rigid.

Application

Ceiling mounting.

Guidance for specification option:

For residential, office, education, retail, hospitality and commercial interiors.

Material

Polyester fibre (PET).

Material density

Guidance for specification option:

Consult manufacturer.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class A to BS EN ISO 11654.

Guidance for specification option:

With Autex AAB backing.

Class C to BS EN ISO 11654.

Guidance for specification option:

Without Autex AAB backing.

Fire performance

-

Reaction to fire

B-s1, d0.

VOC emissions

0.01 mg/m³.

Dimensions

-

Size (length x width)

575 x 575 mm.

Profile

Geometric profile.

Edges

Square.

Surface pattern

Solid.

Finish

Smooth.

Colour

Avocado.

Guidance for specification option:

Light reflectance value: 11.

Bark.

Guidance for specification option:

Light reflectance value: 5.

Blazing red.

Guidance for specification option:

Light reflectance value: 8.

Blush.

Guidance for specification option:

Light reflectance value: 10.

Brilliant orange.

Guidance for specification option:

Light reflectance value: 15.

Charcoal.

Guidance for specification option:

Light reflectance value: 3.

Civic.

Guidance for specification option:

Light reflectance value: 57.

Electric blue.

Guidance for specification option:

Light reflectance value: 12.

Fawn.

Guidance for specification option:

Light reflectance value: 20.

Granny smith.

Guidance for specification option:

Light reflectance value: 20.

Noir.

Guidance for specification option:

Light reflectance value: 1.

Porcelain.

Guidance for specification option:

Light reflectance value: 22.

Silver.

Guidance for specification option:

Light reflectance value: 23.

Stately.

Guidance for specification option:

Light reflectance value: 3.

Stonewash.

Guidance for specification option:

Light reflectance value: 19.

Moisture Absorption (ASTM D570)

0.4%.

Guidance for specification option:

 By weight (ASTM C1104: 49°C at 95%RH, 4 days).

Weight

1680 g/m².

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Polyester fibre (PET)

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.90 kg CO₂ eq/kg

Certified

Lower emissions

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Guidance for specification option:

Contains minimum 55% recycled polyester fibre.

Third party certifications

Certified

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

1

IFC
 -

1

Third party certifications

Declare

Declare

Declare - 3D Tiles and 3D Ceiling Tiles

HPDC Certification

HPDC Certification

Health Product Declaration - 3D Tiles and 3D Ceiling Tiles

EPD

EPD

Environmental Product Declaration - Cascade™, Cube™, Frontier™, Groove, Horizon™, Lanes™, Lattice™, 3D Ceiling Tiles, 3D Tiles, Grid Ceiling Tiles, Quietspace® Panel, and Vicinity™

Literature

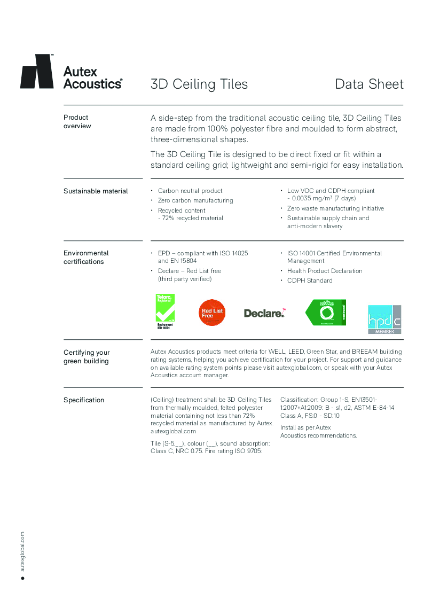

3D Ceiling Tiles Datasheet

3D Ceiling Tiles Datasheet

3D Ceiling Tiles Install Instructions

3D Ceiling Tiles Install Instructions

3D Ceiling Tiles Lookbook

3D Ceiling Tiles Lookbook

3D Ceiling Tiles Manufacturers Warranty

3D Ceiling Tiles Manufacturers Warranty
