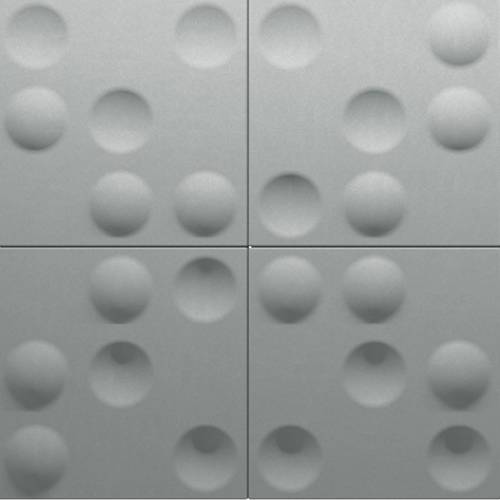

3D Wall Tile S-5.34

Verified by manufacturer 2 months ago

Autex Acoustics Ltd Third party certifications:
  • Declare

    Declare

    Certificate type

  • HPDC Certification

    HPDC Certification

    Certificate type

Moulded wall tile

Jump to:
BOS
+44 (0)1422 418 899 Website

Application

  • Commercial/office spaces
  • Retail
  • Education
  • Hospitality spaces

Description

Equal parts form and function, 3D Tiles are sculptural acoustic tiles designed for interior wall application. Moulded into abstract, three-dimensional shapes, 3D Tiles provide acoustic absorption across the mid to high-frequency range.


Features and benefits:

  • Control noise in interior environments and create unique sculptural features
  • The hollow design creates an air gap, improving acoustic performance
  • Lightweight
  • Includes mounting clips for easy install
  • Available in eight designs
  • Easily customisable
  • Carbon neutral
  • Made locally

General information

Color

Beige

Black

Blue

Cream

Gold

Show more

Manufacturer guidance

Range of colours available.

Finish

Smooth

Material

Polyester fibre (PET)

Shape

Square

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary
Ss_25_25_75_05 Acoustic panel lining systems

CAWS

K40/265 Infill units

K40/10 Unit/ modular suspended ceilings

Specification data - Sound attenuator infill units

Form

Panel.

Rigidity

Semi rigid.

Application

Wall mounting.

Guidance for specification option:

For residential, office, education, retail, hospitality and commercial interior.

Material

Polyester fibre (PET).

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class A to BS EN ISO 11654.

Guidance for specification option:

With Autex AAB backing.

Class C to BS EN ISO 11654.

Guidance for specification option:

Without Autex AAB backing.

Fire performance

-

Reaction to fire

To BS EN 13501-1, Class B-s1,d2.

VOC emissions

0.01 mg/m³.

Dimensions

-

Size (length x width)

575 x 575 mm.

Thickness (overall)

58 mm.

Profile

Geometric profile.

Edges

Square.

Surface pattern

Solid.

Finish

Smooth.

Colour

Avocado.

Guidance for specification option:

Light reflectance value: 10.87.

Bark.

Guidance for specification option:

Light reflectance value: 5.04.

Blazing red.

Guidance for specification option:

Light reflectance value: 7.85.

Blush.

Guidance for specification option:

Light reflectance value: 10.30.

Brilliant orange.

Guidance for specification option:

Light reflectance value: 15.31.

Charcoal.

Guidance for specification option:

Light reflectance value: 3.17.

Civic.

Guidance for specification option:

Light reflectance value: 57.28.

Electric Blue.

Guidance for specification option:

Light reflectance value: 12.15.

Fawn.

Guidance for specification option:

Light reflectance value: 20.30.

Granny smith.

Guidance for specification option:

Light reflectance value: 19.72.

Noir.

Guidance for specification option:

Light reflectance value: 1.16.

Porcelain.

Guidance for specification option:

Light reflectance value: 21.64.

Silver.

Guidance for specification option:

Light reflectance value: 23.37.

Stately.

Guidance for specification option:

Light reflectance value: 3.24.

Stonewash.

Guidance for specification option:

Light reflectance value: 18.94.

Noise reduction coefficient

0.75.

Moisture Absorption (ASTM D570)

0.03 %.

Guidance for specification option:

(50˚C at 90% R.H.).

Light fastness (to BS EN ISO 105 B02)

Class 3.

Sound absorption

To ISO 354, Class C.

Guidance for specification option:

Sound Absorption Coefficient according to ISO 354. University of Auckland Testing Service Quietspace 3D S-5.34 - Test No. T0712, NRC 0.75 Class C.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Polyester fibre (PET)

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.87 kg CO₂ eq/kg

Self declared

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Guidance for specification option:

>60% post-consumer recycled material.
