3W LED Recessed IP65 Wall Light 68068 - Circular Indoor/ Outdoor Luminaire 3000K
Verified by manufacturer 1 day ago

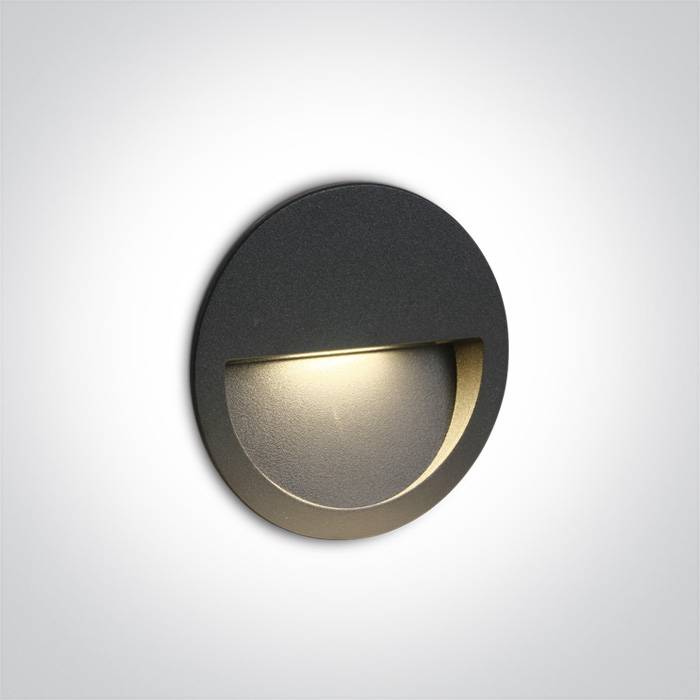

68068/AN Anthracite 3W LED wall recessed light
68068/AN Anthracite 3W LED wall recessed light
Certificate of Approval
Certificate type

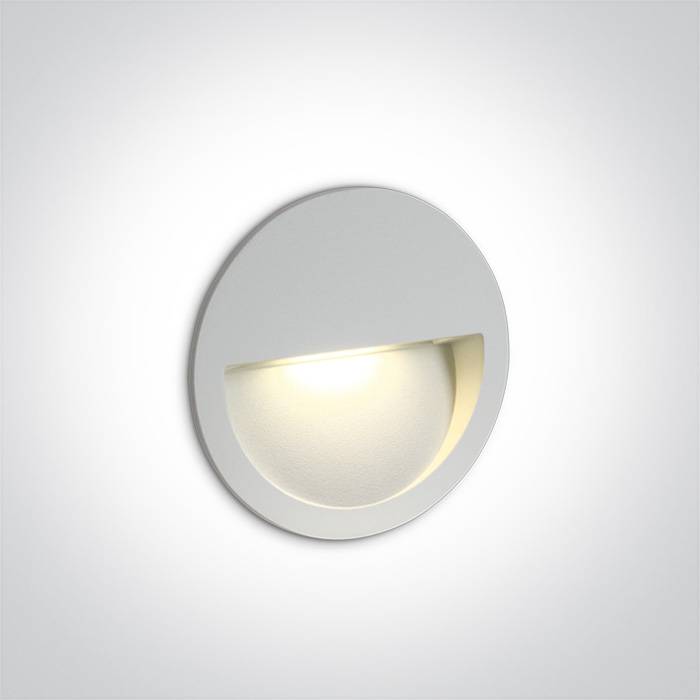

3 W LED recessed circular wall light, IP65, suitable for both indoor and outdoor installation.
Application
Recessed wall luminaire suitable for both indoor and outdoor installation including concrete installation.
Description
3 W LED recessed circular wall light, IP65, suitable for both indoor and outdoor installation.
Features and benefits:
- Complies with EN 60598-1 and any other specific standards.
- Complete with 350 mA driver.
- IP65.
- 3000 K.
- 'Dark light'.
- Three housing colours.
- Supplied with box for concrete installation.
General information
Color | White Grey Guidance for specification option: Including Anthracite. Other |
Material | Metal Guidance for specification option: Die cast. |
Shape | Circle |
Length | 35 mm Guidance for specification option: Depth. |
Width | 114 mm Guidance for specification option: Diameter. |
Height | 114 mm Guidance for specification option: Diameter. |
Warranty description | Two year |
Uniclass | |
CAWS | V90/510 General purpose luminaires V90/510 Luminaires |
Specification data - Recessed luminaires
Standards | To EN 60598-1.Guidance for specification option: And any other specific standards; consult manufacturer for details. |
Luminaire description | Circular recessed LED wall light with anthracite grey housing.Guidance for specification option: Requires 110/ 100 mm-diameter cut-out hole (concrete/ gypsum), 60 mm deep. Osram SMS 2835 LED as standard. |
Classification | |
Ingress protection (minimum) | IP65. |
Circumstances of use | Normal.Guidance for specification option: Indoor or outdoor use. |
Controlgear position | Integral within luminaire.Guidance for specification option: LED driver, IP20. |
Nominal voltage | 100–240 V a.c.Guidance for specification option: 50/ 60 Hz. |
LED luminaires | |
Initial LED luminaire efficacy (minimum) | 100 lm/W. |
Wattage | 3 W. |
Colour temperature | 3000 K. |
Colour rendering index (Ra) | 80. |
Beam angle | Manufacturer's standard.Guidance for specification option: Fixed, down light. |
Output | 300 lm. |
Third party certifications
Certificate of Approval

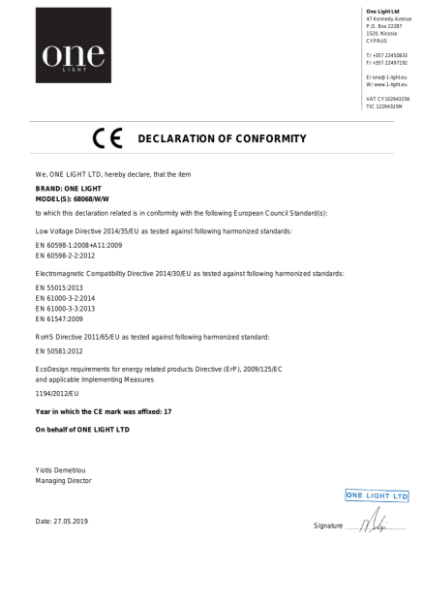

DECLARATION OF CONFORMITY 68068
