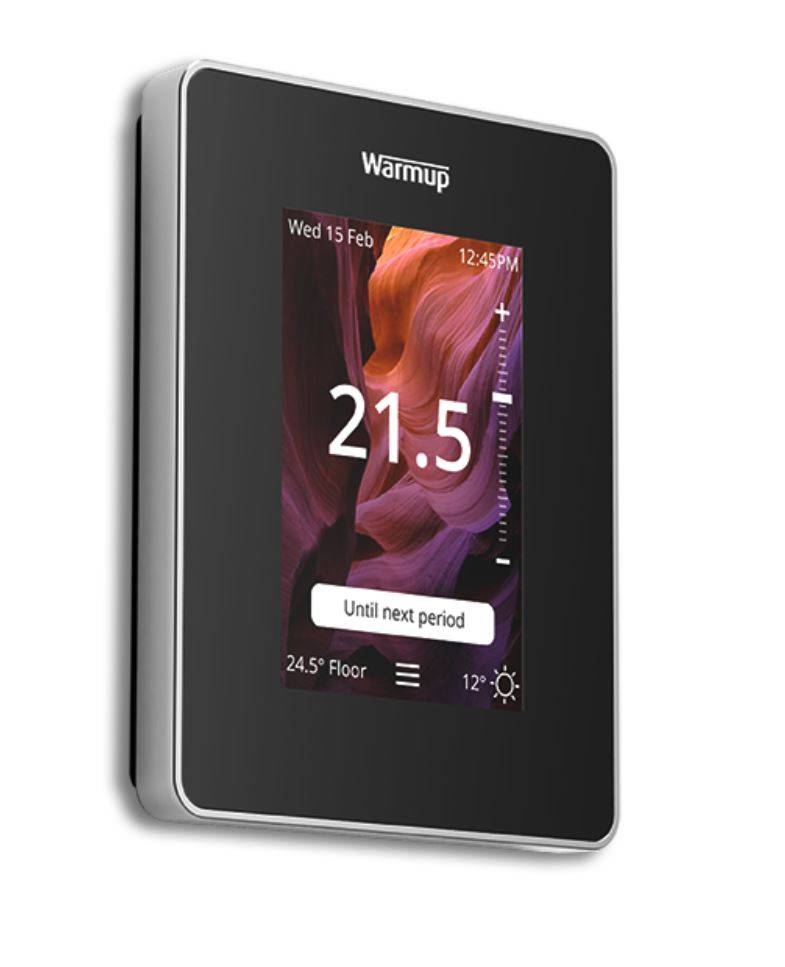

6iE Thermostat - Underfloor Heating Thermostat

Verified by manufacturer 2 months ago

Warmup plc Third party certifications:
  • BEAB

    BEAB

    Certificate type

Smart WiFi Thermostat

Jump to:
+44 345 345 2288 Website

Application

  • Electric underfloor heating.
  • Hydronic Underfloor.
  • Heating Central Heating Systems (Combi and system boilers with switch live, 230V AC input).

Description

The 6iE Smart WiFi Thermostat is the world’s first underfloor heating controller with a Smartphone touchscreen. It features advanced technology to maximise on the energy-efficiency of a Warmup system – helping to reduce energy bills. The 6iE does not require programming.


Kit includes:

6iE (Display and Power Base) with installation manual and 3 m NTC10K Sensor (plus fixings).


Features and benefits:

  • Premium ultra-thin design (16 mm from the wall) with the world’s first smartphone touchscreen providing effortless control at your fingertips.
  • Personalise the 6iE with photo backgrounds, the only underfloor heating thermostat with this ability.
  • Easy to setup. Simply scan the QR code which will appear on the 6iE using the MyHeating app and it will automatically connect to your WiFi network.
  • Automatic control of your heating. SmartGeo learns your routines and location through background communication with your smartphone and lowers temperatures when you are away, only rising them up to your ideal comfort temperature in time for your arrival home saving you money and energy.
  • Reduce energy use by up to 25% with energy efficient MyHeating app technology.
  • Reduce energy bills by using less energy and switching to a cheaper tariff with Warmup AutoSwitch. Save money by switching to renewable energy suppliers easily
  • Weather based Early Start. Turns the heating on at just the right time to be warm when you scheduled - no overheating or wasted energy. Takes into account the weather forecast for warmth just when you wanted, even on cold days and no wasted energy overheating on warm days.
  • Energy Monitoring; Energy + cost graphs on mobile, tablet and desktop.
  • 12 Year warranty when installed with a Warmup heater
  • CE and UKCA marked. BEAB approved.


General information

Color

Black

White

Shape

Rectangle

Length

115 mm

Width

90 mm

Height

16 mm

Warranty description

12 year

Guidance for specification option:

12 Year warranty when installed with a Warmup heater.

Uniclass

Pr_75_50_76_03 Air temperature sensorsPrimary

CAWS

T90/475 Underfloor heating systems

T90/485 Thermostats

T90/485 Thermostats

Specification data - Air temperature sensors

Application

Room.

Equipment interconnectivity

-

Radio-based

-

Communications protocol

Wi-Fi.

Colour

Bright Porcelain (Light chrome band).

Onyx Black (Dark chrome band).

Voltage

230 V AC : 50 Hz.

Load

Maximum load 16A (3680W).

Ambient temperature

Maximum 40°C.

RelativeHumidity

80%.

Ingress protection

IP33.

TouchScreen

3.5in.

Sensors

Air & Floor (Ambient). NTC10k 3 m long.

Guidance for specification option:

 (Can Be extended to 50 m).

Frequency

2401 - 2484MHz.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Recyclability

Recyclable under WEEE regulations

Third party certifications

BEAB

BEAB

21031502HKG-001

Literature

6IE Installation Manual

6IE Installation Manual

6IE Technical Specification

6IE Technical Specification
