Element Thermostat - Thermostat

Verified by manufacturer 3 months ago

Warmup plc Third party certifications:
  • BEAB

    BEAB

    Certificate type

WiFi Thermostat

Jump to:
+44 345 345 2288 Website

Application

  • Electric underfloor heating
  • Hydronic Underfloor
  • Heating Central Heating Systems (Combi and system boilers with switch live, 230V AC input).

Description

Warmup’s Element WiFi Thermostat has been designed with simplicity and stylish functionality in mind. It brings energy-efficient heating control to all Warmup floor heaters. Combining smart technology with simple, contemporary design, the Element WiFi Thermostat is the perfect all-rounder to control Warmup heating systems. The Element WiFi Thermostat utilizes simple touch buttons for accurate control of your underfloor heating system. Its sleek, unobtrusive design will suit any home décor.


Installation and set up is done in a matter of seconds, simply scan the QR code on the Element thermostat using the MyHeating app and it will automatically connect to your WiFi network.


The Element works with all of our advanced energy saving features in the MyHeating app such as SmartGeo. SmartGeo is a unique technology developed by Warmup and built into the MyHeating App that uses an advanced algorithm to understand the most efficient heat settings for any home.

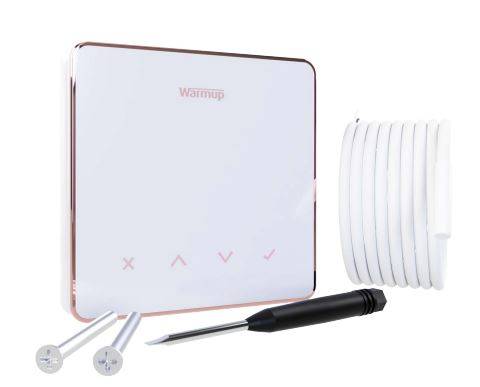

Kit includes:

Element (Display and Power Base) with installation manual and 3 m NTC10K Sensor.


Features and benefits:

  • Simple touch buttons for accurate control of your underfloor heating system. Its sleek, unobtrusive design will suit any home décor.
  • Easy to setup. Simply scan the QR code on the Element thermostat using the MyHeating app and it will automatically connect to your WiFi network.
  • Automatic control of your heating. SmartGeo learns routines and location through background communication with any smartphone and lowers temperatures when away, only rising the temperature for ideal comfort in time for users arrival home saving you money and energy.
  • Reduce energy use by up to 25% with energy efficient MyHeating app technology.
  • Reduce energy bills by using less energy and switching to a cheaper tariff with Warmup AutoSwitch. Save money by switching to renewable energy suppliers easily
  • Weather based Early Start. Turns the heating on at just the right time to be warm when you scheduled - no overheating or wasted energy. Takes into account the weather forecast for warmth just when you wanted, even on cold days and no wasted energy overheating on warm days.
  • Energy Monitoring; Energy + cost graphs on mobile, tablet and desktop.
  • 12 Year warranty when installed with a Warmup heater.
  • CE and UKCA marked. BEAB approved.

General information

Color

Black

White

Shape

Square

Length

86 mm

Width

86 mm

Height

16 mm

Warranty description

12 year

Guidance for specification option:

12 Year warranty when installed with a Warmup heater.

Uniclass

Pr_75_50_76_03 Air temperature sensorsPrimary

CAWS

T90/475 Underfloor heating systems

T90/485 Thermostats

T90/485 Thermostats

Specification data - Air temperature sensors

Application

Room.

Equipment interconnectivity

-

Radio-based

-

Communications protocol

Wi-Fi.

Colour

Light housing (Rose gold band).

Dark housing (Dark chrome band).

Voltage

230 V AC : 50 Hz.

Load

Maximum load 16A (3680W).

Ambient temperature

Maximum 40°C.

RelativeHumidity

80%.

Ingress protection

IP33.

TouchScreen

1.8in.

Sensors

Air & Floor (Ambient). NTC10k 3 m long.

Guidance for specification option:

 (Can Be extended to 50 m).

Frequency

2401 - 2484MHz.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Recyclability

Recyclable under WEEE regulations

Third party certifications

BEAB

BEAB

21031502HKG-001

Literature

Element Thermostat Technical Specification

Element Thermostat Technical Specification
