7500 Series (Aluminium) Multipart - Medium duty floor access cover

Verified by manufacturer 28 days ago

Access 360

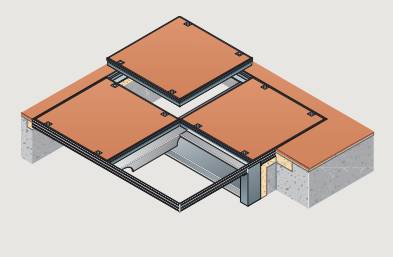

Aluminium, multipart floor access covers for cars and light delivery vehicles up to 5 tonne pneumatic tyre wheel load.

Jump to:
+44 (0)1827 718222 Website

Application

Suitable for interior and exterior hard floors.

Description

Aluminium medium duty floor access covers for up to 5000 kg pneumatic tyre wheel loads (cars and light delivery vehicles) on hard floor surfaces.


Features and benefits:

  • Covers can be fitted quickly and unobtrusively into all types of hard floor finish: ceramic tiles, marble, terrazzo, concrete, resin, wood or parquet.
  • Unique patented cover sections are tapered for easy removal, frame sections give a good key to bedding mortar.
  • Covers are precision-made to avoid distortion.
  • Top edge seal on aluminium covers helps prevent dirt, grout or grinding waste penetrating joint between cover and frame.
  • Double seals available.
  • Lifting blocks are anchored to the inner frame. Stainless steel securing bolts are stiletto heel proof.
  • Aluminium, brass or coloured high impact PVC show edge is continuously secured; there are no fasteners to rust or break.
  • Provides easy access to under floor services using lifting keys.
  • Quick to install, ensuring minimum disruption.
  • Manufactured in accordance with BS EN ISO 9001.
  • Steel baseplate and reinforcement. Galvanized carbon steel support beams and pockets.
  • Weight (when filled): 155 kg/m².

General information

Color

Silver

Finish

Galvanized

Guidance for specification option:

Hard floor finish - ceramic tiles, marble, terrazzo, concrete, resin, wood or parquet floors.

Material

Aluminium

Shape

Square

Length

Bespoke

4000 mm

Guidance for specification option:

Maximum.

Width

Bespoke

3000 mm

Guidance for specification option:

Maximum.

Uniclass

Pr_65_52_01_02 Access covers, gratings and framesPrimary

CAWS

P30/301 Access covers, manhole tops and frames

P31/370 Access covers/ gratings

R12/471 Access covers and frames

Product range

Medium Duty Floor Access Covers

Specification data - Access covers, gratings and frames

Standards

To BS EN ISO 9001.

Certification

CERTIFIRE fire rated.

Guidance for specification option:

To BS 476 Part 22 for integrity and insulation. Certificate No. CF5967.

Configuration

Multipart.

Finish

Hard floor finishes.

Clear opening (minimum)

Guidance for specification option:

As required. Consult manufacturer and insert requirements.

Frame size: (Overall dimensions) Aluminium: clear opening plus 120 mm.

Load class (minimum)

Up to 5 tonne pneumatic tyre wheel load.

Frame or support

Steel baseplate and reinforcement.

Guidance for specification option:

Galvanized carbon steel support beams and pockets (where necessary).

Integral accessories

None.

Cover skate lifting device.

Sets of combined lifting/ securing keys.

Recessed support beam pockets.

Guidance for specification option:

For use where support beams are required.

Surface mounted support beam pockets.

Guidance for specification option:

For use where support beams are required.

Base plate

Galvanized steel.

Guidance for specification option:

Standard.

Stainless steel, grade 1.4301 (304).

Stainless steel, grade 1.4401 (316).

Show edge

Aluminium.

Guidance for specification option:

Standard, matching lifting blocks.

Brass.

Guidance for specification option:

Matching lifting blocks.

Colouredge high impact PVC, Black.

Guidance for specification option:

Aluminium matching lifting blocks.

Colouredge high impact PVC, Forest green.

Guidance for specification option:

Aluminium matching lifting blocks.

Colouredge high impact PVC, Sandstone.

Guidance for specification option:

Aluminium matching lifting blocks.

Show more

Sealing

Double sealed with socket head securing bolts.

Unsealed with blanking bolts.

FireRating

None.

Two hours.

Guidance for specification option:

To BS 476-20.

Depth

75 mm.

Weight

155 kg/m².

Dimensions

4 x 3 m.

Guidance for specification option:

Maximum.


Sustainability data

Material

Aluminium
