Absorber Ceiling Tile
Verified by manufacturer 5 months ago
Acoustic Sound Absorbent Ceiling Tile
Application
Suitable for schools, offices, music studios, lecture theatres and multi-purpose halls.
Description

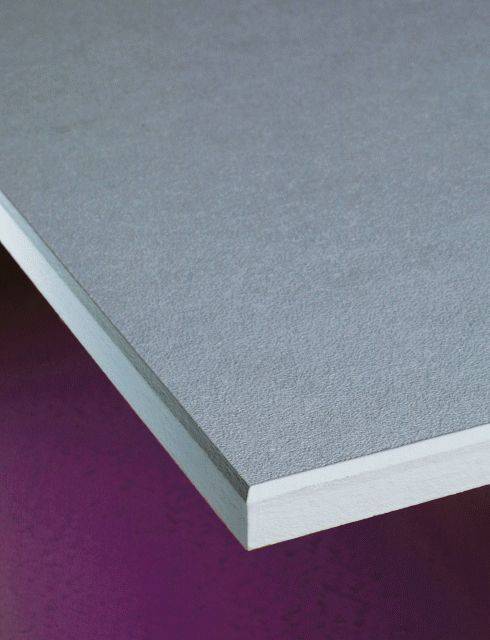

An acoustic panel which adheres to walls and ceilings, absorbing noise and providing an excellent performance rating.
It has a glass mineral fibre core with a white speckled surface finish and includes bevelled edges.
General information
Color | White |
Material | Mineral fibre |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 20 mm |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/265 Infill units |
Product range |
Specification data - Sound attenuator infill units
Form | Tile. |
Application | Ceiling mounting.Wall mounting. |
Material | Mineral fibre. |
Fire performance | |
Reaction to fire | Class 0. |
Dimensions | |
Size (length x width) | 600 x 1200 mm. |
Thickness (overall) | 20 mm. |
Edges | Bevelled. |
Finish | Speckled. |
Colour | White. |
Product Reference | Absorber Ceiling Tile - 1101 |
Weight | 2.5 kg/m². |
Sound absorption coefficient | 0.10. Guidance for specification option: 125 Hz. 0.30. Guidance for specification option: 250 Hz. 0.80. Guidance for specification option: 500 Hz. 1.00. Guidance for specification option: 1000 Hz and 2000 Hz. 0.85. Guidance for specification option: 4000 Hz. Manufacturer guidanceTo BS EN ISO 354: |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Case studies
JCW solves reverberant noise in Farm Shop Cafe
