Application

Noise reduction panels suitable for perforated metal suspended ceiling grid systems. Used in all types of industrial, commercial and retail developments and in the ticket halls of bus, rail and air terminals.

Description

Noise reduction panels suitable for perforated metal suspended ceiling grid systems.


Noise Blockers are designed to be installed on top of existing tiles within a suspended grid type ceiling. It is important to ensure that the grid system is adequately and securely fixed and supported before installing the Noise Blockers on top. Due to the product weight additional suspension fixings may be required.


Features and Benefits:

  • Cost effective acoustic solution.
  • Economical acoustic solution for new/retrofit installations.
  • Reduces 'room to room' sound transfer.
  • Reduces sound transfer between the separating ceiling.

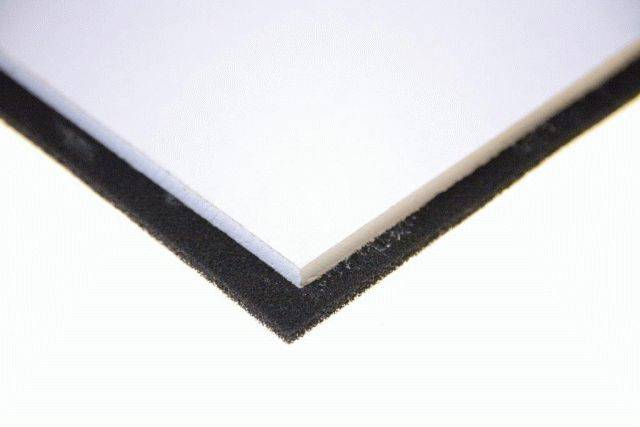

  • Constructed from Class O foam laminated to an acoustic plasterboard layer.

General information

Shape

Square

Material

Plasterboard

Foam

Size

595 x 595 x 16 mm

Guidance for specification option:

3.5 kg.

595 x 595 x 19 mm

Guidance for specification option:

4.5 kg.

595 x 505 x 25 mm

Guidance for specification option:

5.5 kg.

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/265 Infill units

Product range

Acoustic Treatments for Suspended Ceilings

Specification data - Sound attenuator infill units

Form

Panel.

Application

Ceiling mounting.

Wall mounting.

Material

Plasterboard.

Dimensions

-

Size (length x width)

595 x 595 x 16 mm.

Guidance for specification option:

3.5 kg.

595 x 595 x 19 mm.

Guidance for specification option:

4.5 kg.

595 x 505 x 25 mm.

Guidance for specification option:

5.5 kg.

Product Reference

Noise Blocker Panel 16 - 1177

Guidance for specification option:

16 mm thickness; sound reduction: 24 dB.

Noise Blocker Panel 19 - 1179

Guidance for specification option:

19 mm thickness; sound reduction: 26 dB.

Noise Blocker Panel 25 - 1181

Guidance for specification option:

25 mm thickness; sound reduction: 27 dB.

Sustainability data

Country of product manufacture

United Kingdom
