Access Panel with Plasterboard Door and Beaded Frame
Verified by manufacturer 4 months ago
Plasterboard door access panel range, non-fire rated depth 50 mm, suitable for walls and ceilings.
Application
Walls or ceilings.
Description

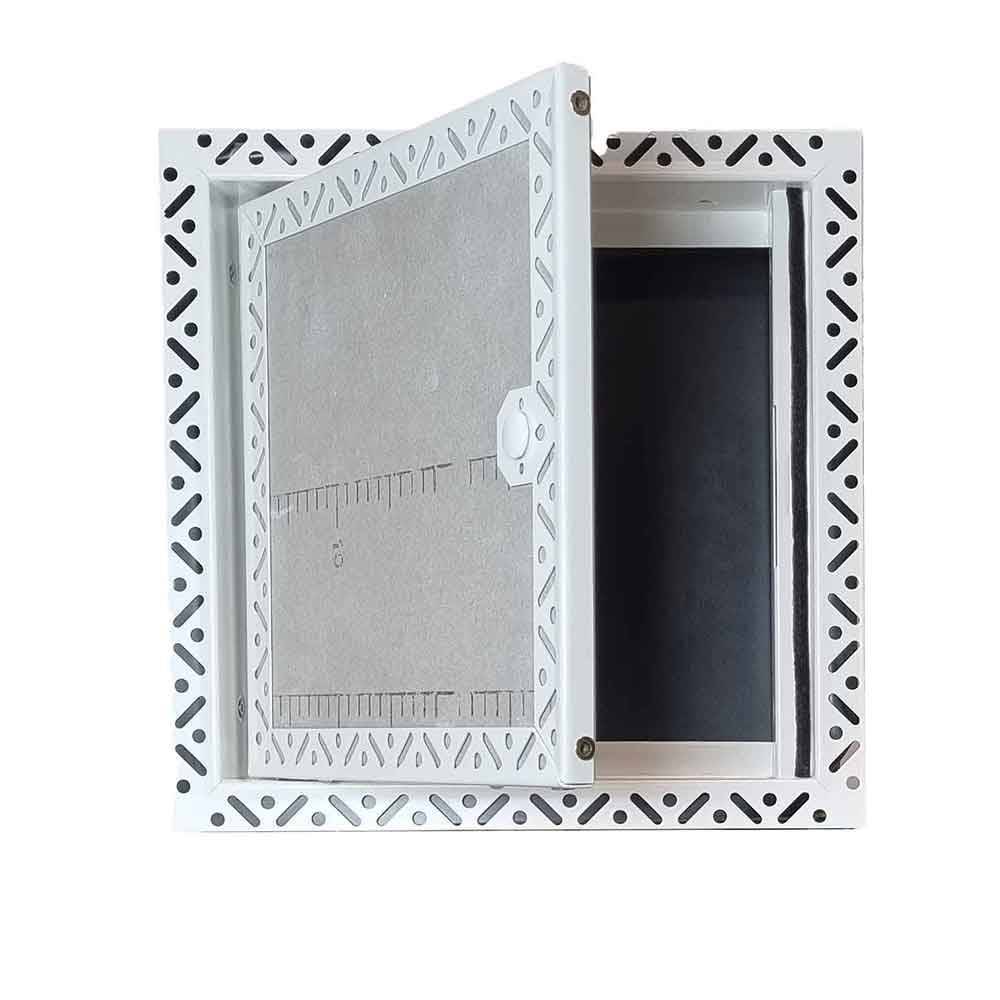

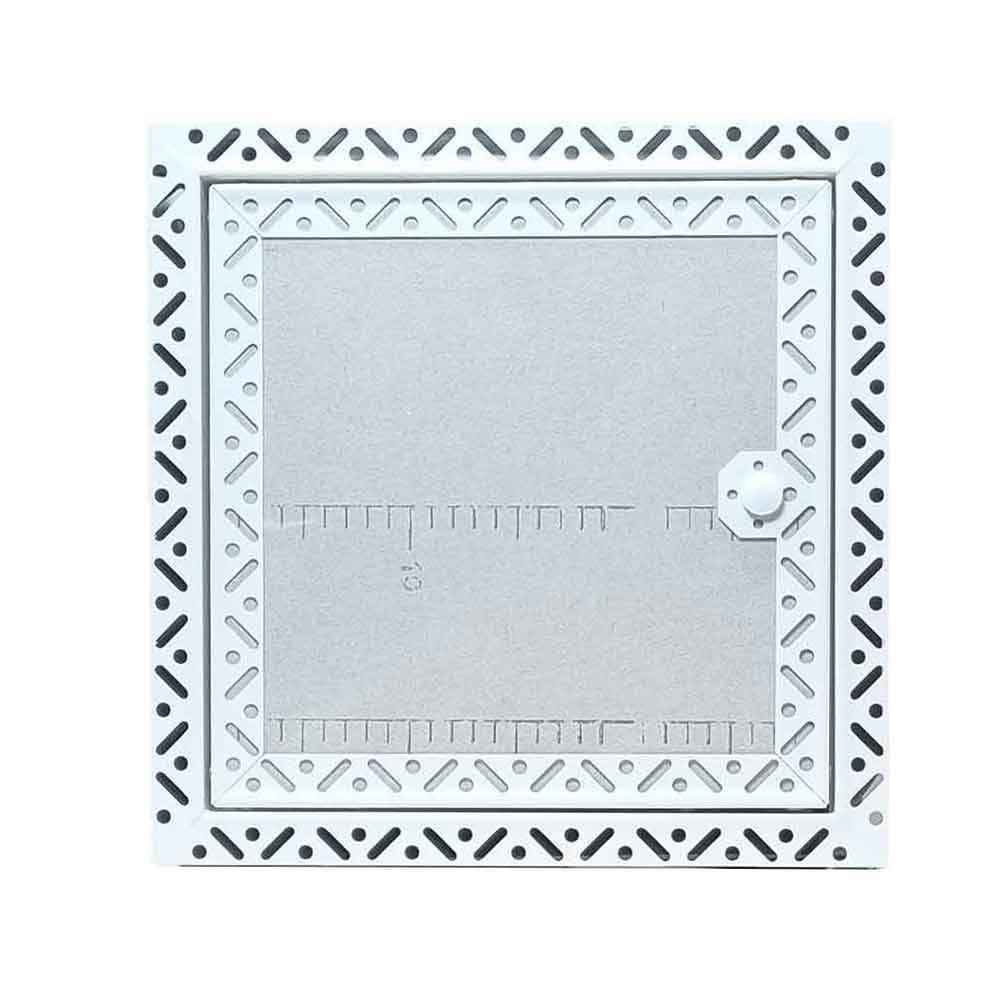

The Non-Fire Rated Plasterboard Door Access Panel range is designed to blend into its surroundings. The beaded frame and door are specially set up for easy application of a plaster finish. The door features spacer pips to ensure a consistent gap between the door and frame. The door can be easily removed for frame fitting or plastering purposes.
Lock: The access panel is equipped with a budget lock, which can be opened using an 8 mm square-ended black plastic T-key. To open, simply twist the key a quarter turn. The lock is discreetly concealed by a push-fit plastic bung (white colour).
Fitting information: The frame comes with pre-drilled 5 mm diameter fixing holes for easy installation. The number of fixing points varies depending on the panel size. Detailed fitting instructions are provided. It's crucial to install the panel before applying the wet finish. Additionally, applying scrim tape to all perforated edges prior to plastering is essential. Failure to use scrim tape may result in poor adhesion of plaster to the access panel frame and potential cracking.
Sizes: When selecting your access panel, please add 5 mm to the size for the structural opening. E.g. An access panel size of 1200 x 600 would fit a structural opening of 1205 x 605 mm.
General information
Color | White |
Finish | Powder-coated |
Material | Plasterboard Zintec steel |
Shape | Square Rectangle |
Width | 200 mm 300 mm 350 mm 450 mm 550 mm |
Height | 200 mm 300 mm 350 mm 450 mm 550 mm |
Warranty description | Two year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Fire performance | |
Fire resistance | Non-fire rated. |
Position | Ceiling-mounted.Wall-mounted. |
Size | 200 x 200 mm.Guidance for specification option: Structural opening: 205 x 205 mm; Clear opening (door at 90°): 140 x 173 mm. 300 x 300 mm.Guidance for specification option: Structural opening: 305 x 305 mm; Clear opening (door at 90°): 240 x 275 mm. 350 x 350mm.Guidance for specification option: Structural opening: 355 x 355 mm; Clear opening (door at 90°): 290 x 322 mm. 450 x 450 mm.Guidance for specification option: Structural opening: 455 x 455 mm; Clear opening (door at 90°): 385 x 424 mm. 550 x 550 mm.Guidance for specification option: Structural opening: 555 x 555 mm; Clear opening (door at 90°): 490 x 520 mm. 600 x 300 mm.Guidance for specification option: Structural opening: 605 x 305 mm. Clear opening (door at 90°): 560 x 224 mm. Hinged on the long side. 600 x 600 mm.Guidance for specification option: Structural opening: 605 x 605 mm; Clear opening (door at 90°): 559 x 514 mm. 900 x 600 mm.Guidance for specification option: Structural opening: 905 x 605 mm; Clear opening (door at 90°): 842 x 540 mm. Hinged on the long side. 1200 x 600 mm.Guidance for specification option: Structural opening: 1205 x 605 mm; Clear opening (door at 90°): 1159 x 522 mm. Hinged on the long side. |
Frame | Bead for taping and jointing. |
Panel | |
Material | Plasterboard infill. |
Latch or lock type | Budget lock. |
Operation | Outward opening. |
Sound insulation | 21 dB. |
Sustainability data
Contains Red List materials | No |
Recyclability | Steel 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 42 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
BFS-Plast Beaded Frame Plaster Door
BFS-PLAST
