Acoustic Deck 37P - Acoustic Flooring

Verified by manufacturer 4 months ago

JCW Acoustic Supplies Limited

Plywood based acoustic deck for direct to joist fitment or onto existing subfloor.

Jump to:
+44 7833 433335 Website

Application

  • For both general and new domestic separating floor upgrades in lofts and extensions.
  • For conversions and new build projects.

Description

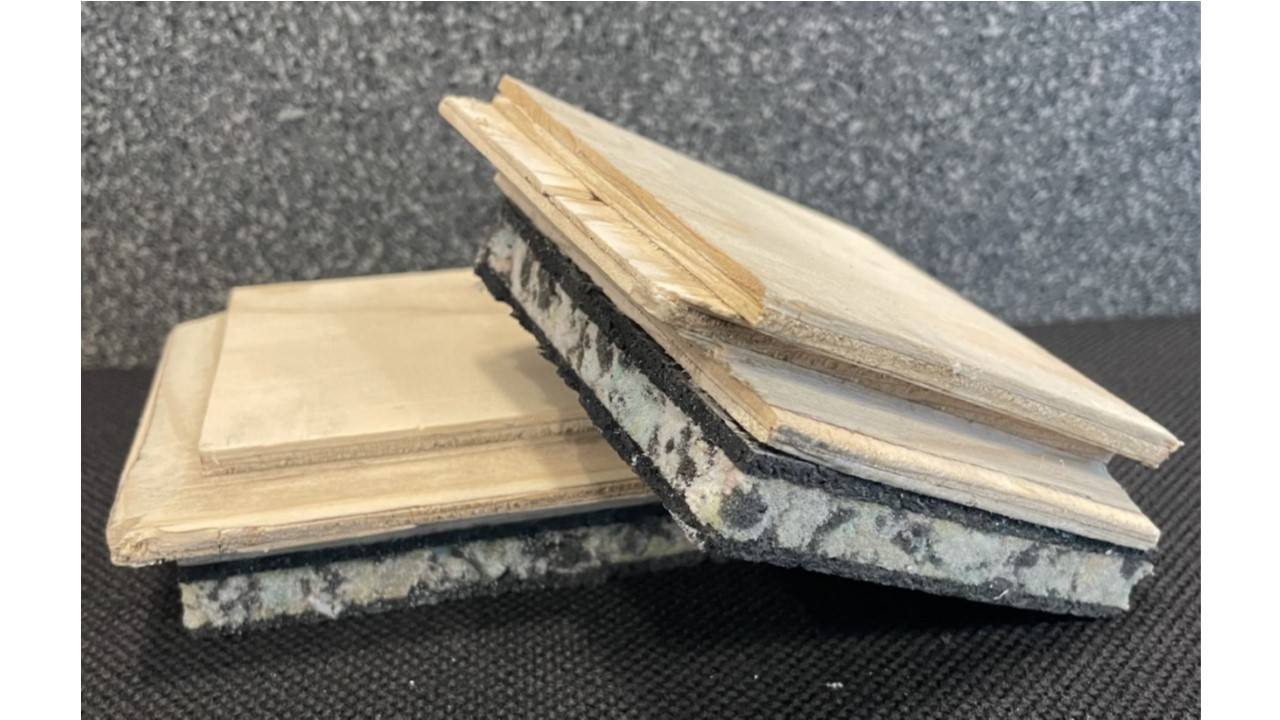

Plywood based acoustic deck for direct to joist fitment or onto existing subfloor comprising a 22 mm thick tongue and grooved plywood board with a pre-bonded 15 mm high performance resilient layer.


Features and benefits:

  • Enhanced impact and airborne sound reduction via 15 mm barrier-foam-barrier pre-bonded backing.
  • A suitable decking for floated wood, laminate, carpet or carpet tiles.
  • Additional floor preparation will be required for tiling and vinyl overlays.
  • Economical system.
  • It is essential recommended components are correctly detailed and installed to meet the requirements where pre-completion sound testing is required. Consult manufacturer for details.

General information

Color

Beige

Material

Foam

Rubber

Plywood

Shape

Rectangle

Length

2400 mm

Width

600 mm

Height

37 mm

Uniclass

Pr_25_71_18_90 Timber-lined composite sound-insulating boardsPrimary

CAWS

K11/225 Particleboard floating floor

K11/25 Particleboard floating floor

K11/275 Acoustic separating floor system

Product range

Acoustic Decking

Specification data - Timber-lined composite sound-insulating boards

Sound insulation rating

Impact 52 dB Ln,w, Airborne: Rw + Ctr 56 dB.

Thickness

37 mm.

Guidance for specification option:

Also available in 33 mm thickness; consult manufacturer for details.

Weight

31 kg.

Size (w x l)

600 x 2400 mm.

Sound insulation

Impact sound reduction: 52 dB Ln,w; Airborne sound improvement: 52 dB Rw + Ctr.

Guidance for specification option:

UKAS laboratory test data based on direct to joist construction.

Accessories

None.

1130 JCW Flat Edging Strip (50 Lm x 150 mm x 5 mm).

1170 JCW Universal L Shaped Strip (2 Lm x 53 mm x 23 mm).

Type

To BS EN 312, type P5.

Grade

Standard.

Format

Standard.

Sustainability data

Country of product manufacture

United Kingdom

Literature

Acoustic Deck 37P

Acoustic Deck 37P
