Acoustic Floor - Isocheck 27C, 23C, 18C and 14C - Platform acoustic floor system
Verified by manufacturer 2 months ago

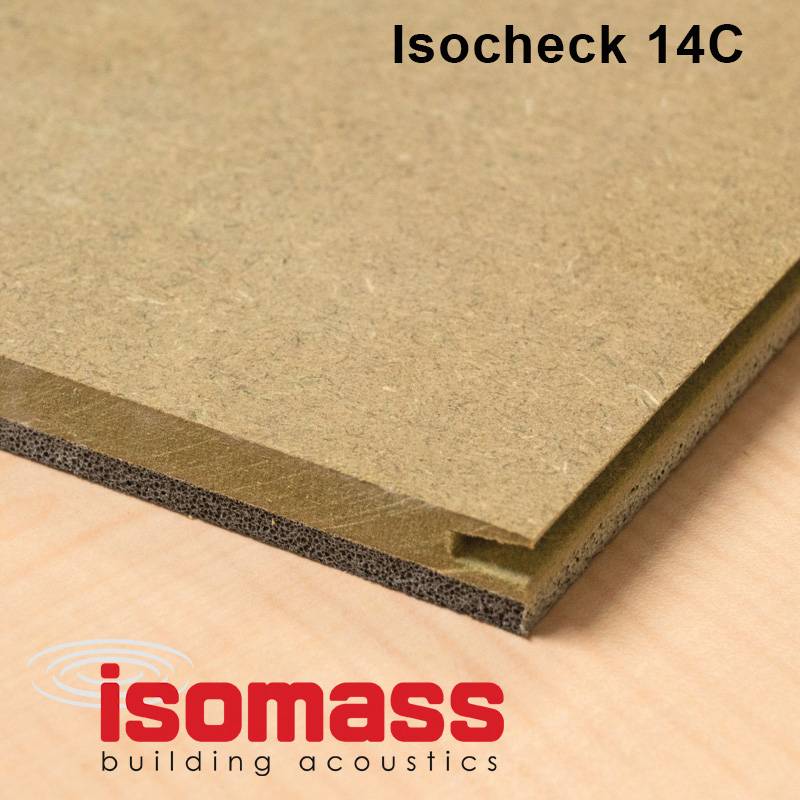

Isocheck 14C
Isocheck 14C
High performance acoustic flooring for concrete floors. Overlay board system.
Application
Acoustic floors to be used over concrete floors.
Suitable for:
- conversions
- refurbishments
- new build projects
- Robust detail compliant
Description
Isocheck 27C, 23C, 18C and 14C acoustic floor systems are designed to reduce impact sound transmission through concrete floors. This system does not need the additional protection of a moisture barrier (VCL) vapour control layer because the Isopoli will not absorb the moisture from a virgin screed.
Isocheck 27C, 23C and 18C consist of a 5.5 mm layer of cross linked Isopoli bonded to 22 mm, 18 mm and 12 mm P5 V313 moisture resistant chipboard respectively, whereas Isocheck 14C consists of a 5.5 mm layer of cross-linked ‘Isopoli’ bonded to 9 mm moisture resistant medium density fibreboard.
When installed as part of an Isomass approved party floor construction it enables a concrete floor to meet the sound transmission standards of Approved Document E 2003 and subsequent amendments in 2004, 2010, 2013 and 2015.
Complies with New Build Robust Detail descriptive FFT5 within E-FC-1, E-FC-2 and E-FS-1.
General information
Material | Chipboard Medium density fibreboard (MDF) Foam Guidance for specification option: Cross linked foam. |
Shape | Rectangle |
Length | 2400 mm 1200 mm |
Width | 600 mm |
Height | 27 mm 23 mm 14 mm 18 mm |
Uniclass | |
CAWS | K11/275 Acoustic separating floor system K11/25 Particleboard floating floor K11/225 Particleboard floating floor |
Specification data - Timber-lined composite sound-insulating boards
Sound insulation rating | Airborne: 51 dB (DnT,w + Ctr); Impact: 52 dB (L’nT,w).Manufacturer guidanceComplies with Building Regulations Approved Document E when incorporated as part of an Isomass design (service available foc). |
Thickness | MDF: 9 mm; Isopoli: 5.5 mm. |
Board materials | Isopoli bonded to moisture resistant medium density fibreboard. |
Edges | Tongued-and-grooved long edges. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Product can be separated and recycled again |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % |
Literature
Isocheck 14C - Safety Data Sheet
Isocheck 27C,23C,18C,14C - v5.5
Isocheck 18C,23C27C - Safety Data Sheet - Sept22
Typical Floor Detail - Isocheck 27C
Case studies
Borough Rd, London
