ACT991M Modulating Actuators w / Gap Detection

Verified by manufacturer 2 months ago

Crane Fluid Systems

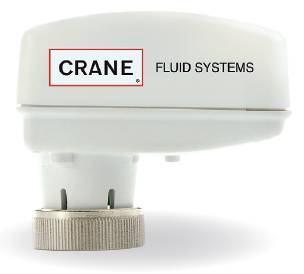

An electro-mechanical actuator.

Jump to:
+44 (0)1473 277300 Website

Application

Suitable for fan coil units and active chilled beams.

Description

An electro-mechanical actuator with Gap Detection technology. The actuator monitors the force exerted from the valve stem and stops when a predetermined value is reached. This ensures the actuator stroke accurately matches the valve stroke (to within 0.1mm).


Features and benefits:

  • Modulating actuators enable flow rate changes, and consequently heat output changes, to quickly match demand requirements.
  • Allow all intermediate flow rates between full flow and no flow.
  • The actuator can actively communicate its stroke position to the control system to monitor building operations.

General information

Specification data - Motor-driven valve actuators

Actuator type

Electro-mechanical.

Action

Equal percentage or linear.

Stroke

6.3 mm (maximum).

Running time

8 s/mm.

Electrical supply

0–10 V Control Signal.

Guidance for specification option:

  • Cable length: 1.5 m.
  • 24 VAC / DC.

Ancillaries

Digital valve position indicator.

Function

Modulating with gap detection.

Ingress protection (IP) rating

IP54.

Sustainability data

Material

Plastic
