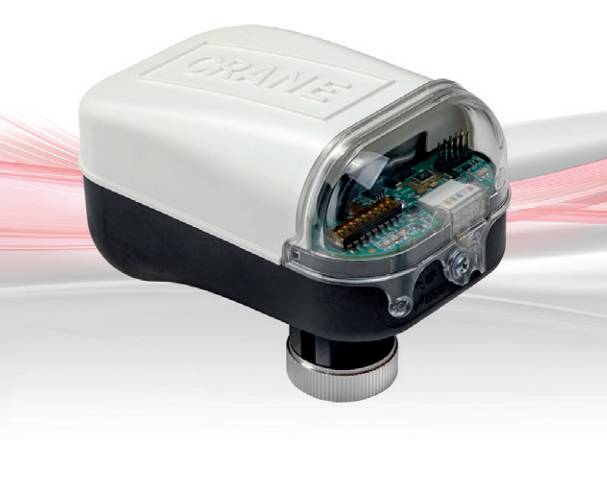

ACTMDBUS Modbus Actuator - Modulating Actuator with Modbus

Verified by manufacturer 22 days ago

Crane Fluid Systems

Modulating actuator with Modbus, providing reduced commissioning time and costs and system optimisation.

Jump to:
+44 (0)1473 277300 Website

Application

Provision of remote and intelligent valve setting, modulating control and indicated flow rate feedback through a fast and reliable Modbus communication protocol for HVAC applications.

Compatible with the Crane FS range of D995 Peak Pro PICVs from DN15 up to DN50 as well as the Dominator Eco.

Description

Modulating actuator with Modbus.


Features and benefits:

  • Reduced commissioning time and costs due to remote commissioning via the Building Management System (BMS) or Crane configurator tool.
  • System optimization using the indicated flow rate and position feedback.
  • Reduced installation labour and cabling costs due to daisy chaining between actuators.
  • Reduced downtime due to error feedback via the BMS.
  • Optimized system efficiency and user comfort due to fast responding actuator.
  • Isolation function with Class IV leakage when paired with Crane FS D995 PICV and DE40.
  • Linear and Equal Percentage Control – configurable control characteristic to suit different applications.

General information

Color

White

Finish

Smooth

Material

Plastic

Guidance for specification option:

Casing.

Shape

Other

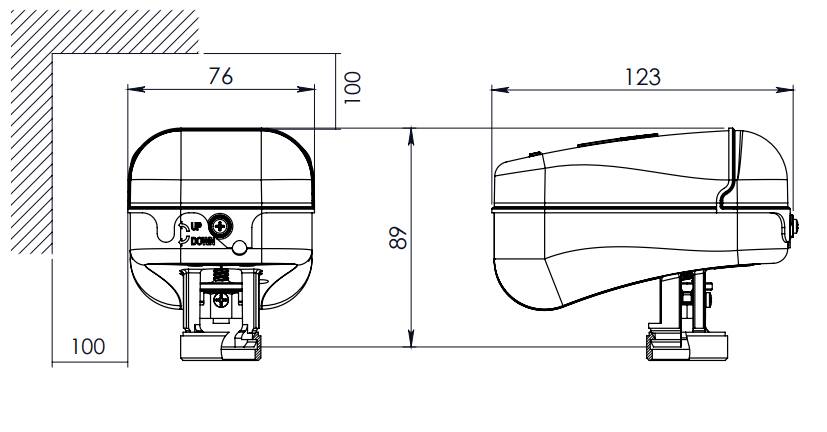

Length

123 mm

Width

76 mm

Height

89 mm

Uniclass

Pr_75_50_02_54 Motor-driven valve actuatorsPrimary
Pr_75_51_52_02 Alternating current (a.c.) semiconductor motor controllers and starters

CAWS

T90/435 Motorized valves

Specification data - Motor-driven valve actuators

Standards

EMC 2014/30/UE according to EN 61326-1:2013.

Actuator type

Electric.

Action

Linear and equal percentage control.

Torque

Force: 300 N.

Stroke

90°.

Operation

Modulating.

Electrical supply

24 V a.c./ d.c.

Guidance for specification option:

±10%.

Transformer sizing: 30 VA.

Consumption: Supercapacitor charging: 12 W; moving: 6 W; holding position: 1.5 W.

Ancillaries

Modbus communication protocol.

Guidance for specification option:

For HVAC applications.

Speed

5 s/mm (default) or 3 s/mm.

Guidance for specification option:

Configurable via Modbus.

Speed in emergency positioning: 3 s/mm.

Ingress protection

IP54.

Weight

0.4 kg.

Operating temperature

-5–55°C.
