AlivaDesign M - Cavity Fixed - External Wall Insulation / ETICS System

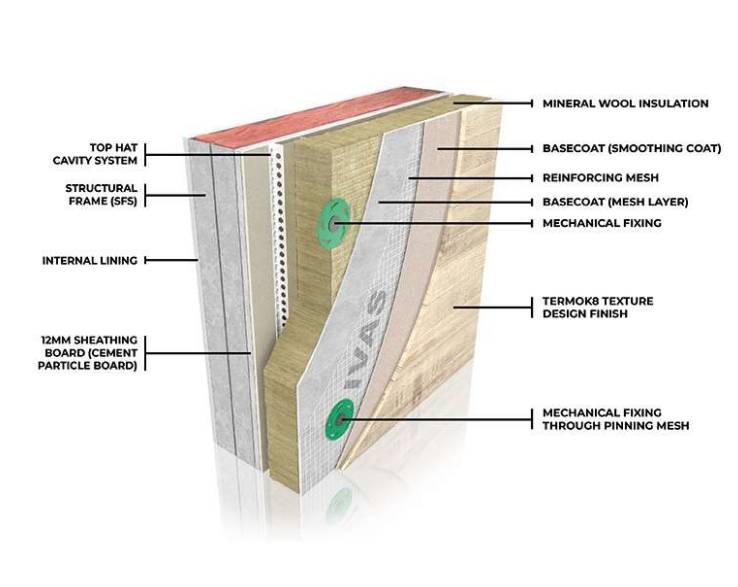

The AlivaDesign M system consists of mineral wool insulation boards which are mechanically fixed to steel top hat rails, which are mechanically fixed into the sheathed lightweight steel frame supporting wall. A layer of basecoat with reinforcement mesh is applied to the mechanically fixed insulation boards and the finishes applied. The system is then finished with a decorative finish with silicone and acrylic properties to replicate various traditional finishes such as Corten steel, brushed concrete, travertine tiles and timber panelling.

Features and benefits:

• Directly fixed with mechanical fixings via 15 mm steel ‘top hat’ channel to create the cavity.
• Finished to replicate various traditional finishes such as Corten steel, brushed concrete, travertine tiles and timber panelling.
• Class A2,s1,d0 fire classification to BS EN 13501-1:2019 (surface spread of flame).
• The system when installed to specification will achieve a design life of in excess of 30 years.
• KIWA BDA certified.

Approved substrates:

Lightweight steel frames with cement or calcium silicate sheathing boards.
