Altitude XP Cubicle System

Verified by manufacturer 2 months ago

Dunhams Washroom Systems

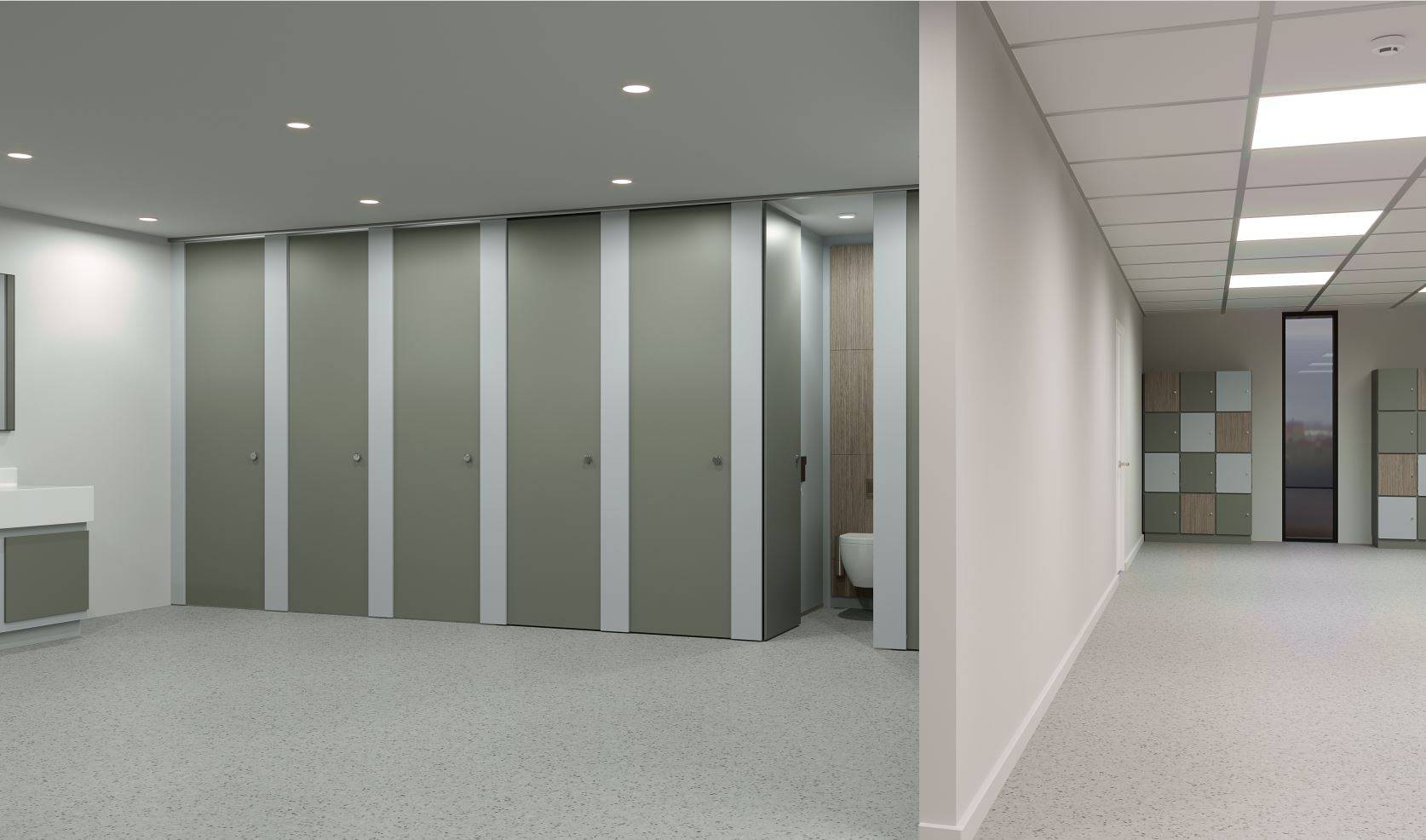

A floor to ceiling, full privacy cubicle system, suitable for gender-neutral, inclusive washroom spaces.

Jump to:
BOS
+44 (0)1603 424855 Website

Application

  • Unisex washrooms.
  • Universities.
  • Schools.
  • Colleges.

Description

The Xtra Privacy (XP) floor to ceiling cubicle system for gender-neutral, inclusive washroom spaces. Manufactured from solid grade laminate, 13 mm nominal thickness.


Full height cubicle system complete with additional floor channel system and minimal floor clearance for extra privacy.


Features and benefits:

  • Cubicle division panels are mounted in a continuous floor channel to prevent anti-social interruption and intimidation during use.
  • Full height floor-to-ceiling pilaster panels.
  • Minimal 10 mm undercut to doors to provide maximum privacy possible.
  • Anti-vandal aluminium hardware.
  • Fully waterproof, high density, solid grade laminate panel construction.



General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Manufacturer guidance

Extensive range available from the Dunhams colour selector.

Finish

Anti-graffiti

Smooth

Material

Solid grade laminate (SGL)

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

15 year

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/120 Panel cubicles

K32/10 Panel cubicles

Specification data - Panel cubicle systems

Panels

Solid grade laminate with colour finish to both sides giving 13 mm nominal thickness.

Doors

Solid grade laminate with colour finish to both sides giving 13 mm nominal thickness. Minimal 10 mm undercut to doors to provide maximum privacy possible.

Lippings

Polished and radiused.

Hardware

Privacy features: Continuous aluminium privacy channel skirting to divisions.
Hinges: High strength insert with anti-breakout sleeve and self-closing cams.
Indicator Bolt: Easy slide action lock with integrated buffer and emergency door release facility.
Partition Fixing: Partitions secured with aluminium D brackets and stainless steel bolt-thru fixings.
Coat Hook: Matching coat hook.

Manufacturer guidance

  • Standard: All fittings manufactured from high quality polished aluminium.
  • Optional: Can be powder coated to match RAL colours. Consult manufacturer for details and insert requirements.

System accessories

Extra privacy channel skirting to divisions for 0 mm floor clearance.

Floor fixed pilaster channel.

Size:

-

Manufacturer guidance

  • Consult manufacturer for details and insert requirements.
  • Depth: 2000 mm (maximum).
  • Ceiling height: 2600 mm (maximum).
  • Width: 800 mm standard.

Colour/ Finish:

-

Manufacturer guidance

From the Dunhams colour selector.

Headrail

'D' section headrail for maximum strength.

Sustainability data

Country of material origin

Europe

Country of product manufacture

United Kingdom

Recyclability

Panels: 0 additional waste during disassembly.
Reuse through local initiatives (Panel product lifespan is 50 years - can be upcycled to products such as table top, bench tops, furniture etc).
Recycling possible through the wood industry.
European Waste Catalog (EWC) code 200301.
Fittings: Aluminium and Stainless steel components can be readily recycled.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
