Vista HPL Cubicle System

Verified by manufacturer 2 months ago

Dunhams Washroom Systems

Full-height Premium cubicle system with a flush facade

Jump to:
BOS
+44 (0)1603 424855 Website

Application

  • 🏢Office.
  • 🛍️Hospitality & Retail.


Description

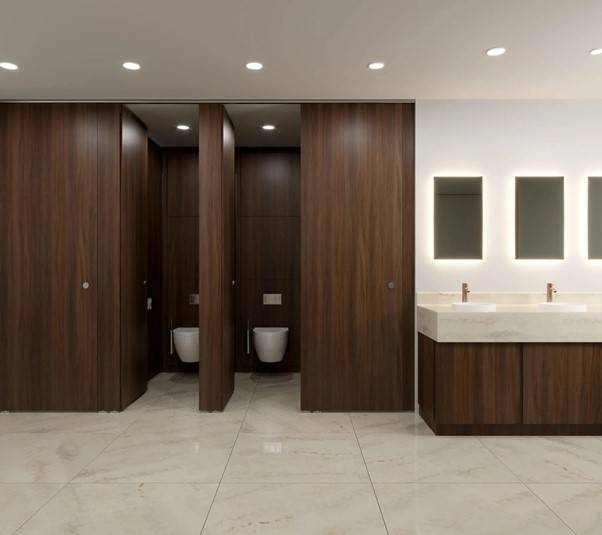

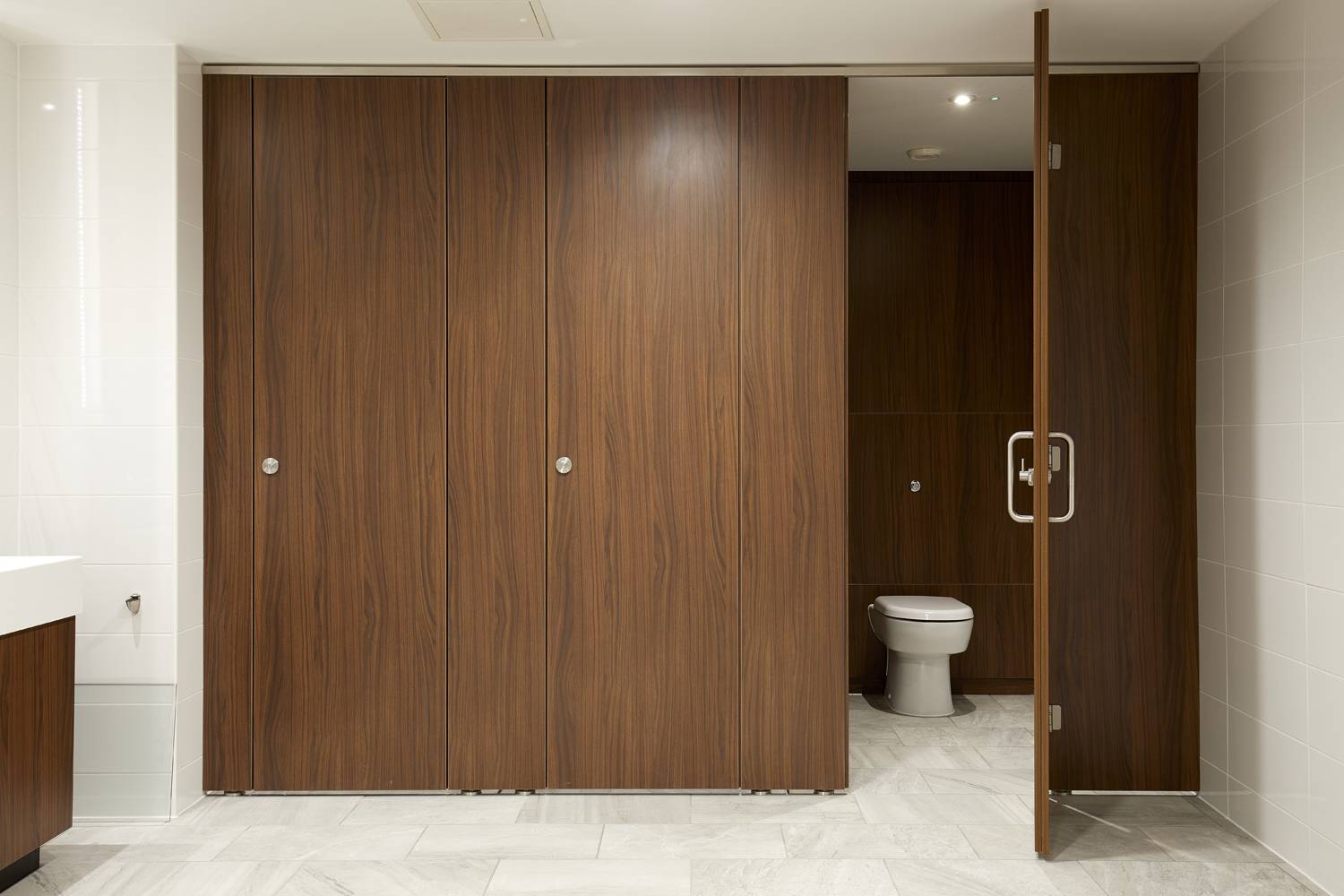

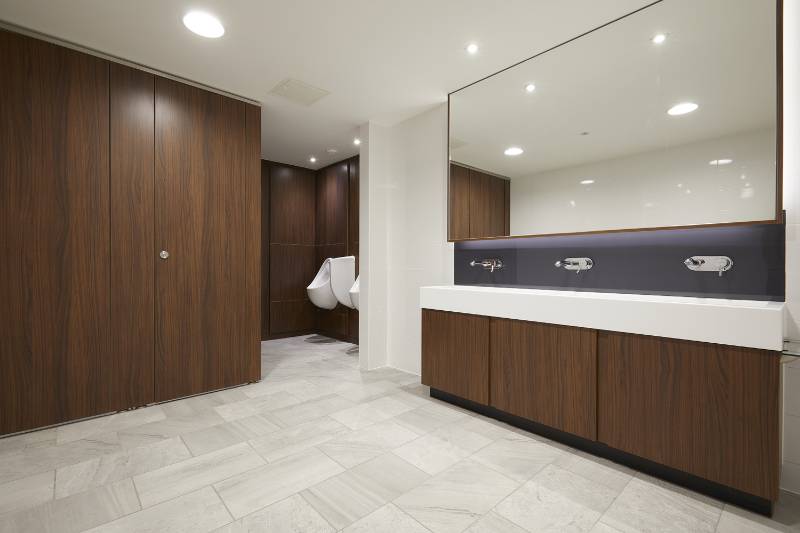

The Vista Cubicle System is a full-height, premium cubicle system with a flush facade. The system features rebated doors, minimal floor clearance, full-height panels and stainless steel fittings.


Dunhams Washrooms recommend this HPL panel system for dry area washrooms.


Features and benefits:

  • Flush front facade.
  • Rebated door sets for enhanced privacy.
  • Premium Stainless steel hardware.
  • Concealed pilaster fixing.
  • 20 mm minimal floor clearance.
  • Continuous stainless steel headrail for system rigidity.
  • Vanity units and duct panel systems are available to complement Vista Cubicles.


Not suitable for showers or high traffic washrooms

General information

Color

Beige

Black

Blue

Cream

Green

Show more

Manufacturer guidance

Extensive range available from the Dunhams colour selector.

Material

High pressure laminate (HPL)

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

2700 mm

Guidance for specification option:

Maximum.

Warranty description

Five year

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Specification data - Panel cubicle systems

Panels

High-density, moisture-resistant particleboard, E1 Grade, faced with 0.8 mm high-pressure laminate (HPL). 19 mm nominal thickness.

Panel supports

Satin stainless steel compact pedestal with height adjustment shims.

Pilasters

High-density, moisture-resistant particleboard, E1 Grade, faced with 0.8 mm high-pressure laminate (HPL). 38 mm nominal thickness.

Doors

High-density, moisture-resistant particleboard, E1 Grade, faced with 0.8 mm high-pressure laminate (HPL). 38 mm nominal thickness.

Lippings

All edges: Matching 2 mm thick impact-resistant ABS lipping. Doors/ pilasters: Lipped rebated vertical edges.

Hardware

Hinges: Stainless steel rise and fall butt hinges.
Indicator bolt and keep: Stainless steel DDA-compliant, lever-operated indicator bolt with circular face plate and emergency release facility.
Coat hook: 1no. satin stainless steel cylindrical coat with buffer and concealed fixings per cubicle.

Size:

-

Manufacturer guidance

  • Consult manufacturer for details and insert requirements.
  • Depth: 1500 mm standard to 2000 mm maximum.
  • Overall height: 2700 mm maximum.
  • Width: 800 mm (clear minimum).
  • Floor and ceiling clearance: 20 mm.

Colour/ Finish:

-

Manufacturer guidance

From Dunhams Washroom Collection. Insert requirements.

Fittings

Stainless steel.

Headrail

Satin stainless steel continuous box section.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Recyclability

Recycling possible through the wood industry.
European Waste Catalog (EWC) code 200301.
Fittings: Aluminium and Stainless steel components can be readily recycled.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %
