Aluminium Access Ramp - Transition Ramps
Verified by manufacturer 7 months ago
RAA104
RAA104
Aluminium transition access ramp.
Application
Designed to provide a transition from two floor coverings of different heights.
Description
Genesis RAA is an aluminium ramp designed to provide a transition from two floor coverings of different heights. Simple to install the RAA provides a perfect safe secure finish to the flooring installation.
General information
Color | Silver |
Finish | Matt |
Material | Aluminium |
Length | 2500 mm |
Width | 65 mm 90 mm |
Height | 10 mm 12.5 mm 15 mm |
Uniclass | |
CAWS | M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/12 Mosaic to M40/120 Mosaic to M40/5 Tiling to M41/110 Terrazzo tiling M41/120 In situ terrazzo M41/130 Precast terrazzo M41/140 Marble tiling |
Product range |
Specification data - One-part floor transition strips
Profile | Ramped. |
Material | Aluminium. |
Finish | Matt Silver 81. |
Colour | Silver. |
Size | 2500 x 65 x 10 mm.Guidance for specification option: (L x W x D). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Literature

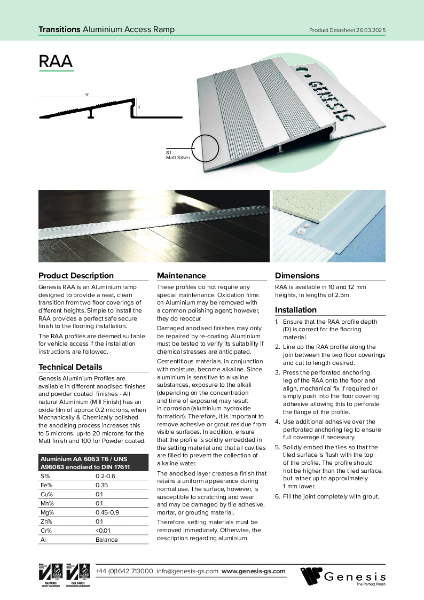

RAA Datasheet
