Tile-In Ramp
Verified by manufacturer 10 months ago
RSA104
RSA104
Aluminium tile-in ramp.
Application
Designed to accommodate and provide a smooth transition from one floor level to another.
Description
An aluminum tile in ramp is designed to accommodate and provide a smooth transition from one-floor level to another. The RSA profile is available in 10, 12 and 15 mm depths and reduces to zero which offers an opportunity for use in some commercial applications
General information
Color | Silver |
Finish | Matt Mill |
Material | Aluminium |
Length | 2500 mm |
Width | 16 mm 19 mm 20 mm 23 mm |
Height | 10 mm 12 mm |
Uniclass | |
CAWS | M40/10 Natural stone covering M40/110 Tiling M40/115 Natural stone covering M40/12 Mosaic M40/120 Mosaic M40/5 Tiling M41/110 Terrazzo tiling M41/120 In situ terrazzo M41/130 Precast terrazzo M41/140 Marble tiling |
SKU Code | RSA104, RSA124, RUA104, RUA124 |
Product range |
Specification data - One-part floor transition strips
Profile | Ramped. |
Material | Aluminium. |
Finish | Mill aluminium 80. Matt silver 81. |
Size | 2500 x 20 x 10 mm. Guidance for specification option: (L x W x D). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Literature

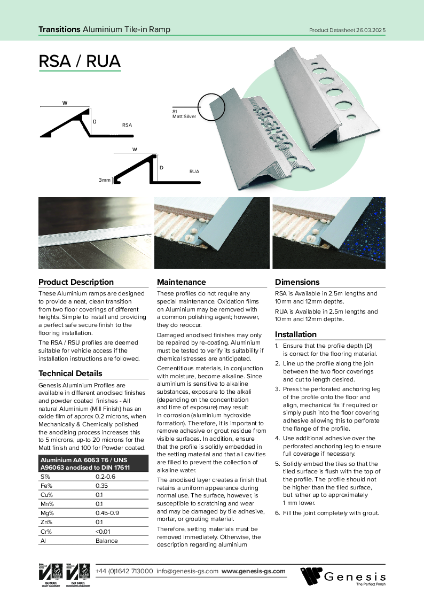

RSA/RUA Datasheet
