Application

For protection of tile edges and corners.


  1. Select EAT according to tile thickness.
  2. Trowel tile adhesive over the area that forms the perimeter of the tiled covering.

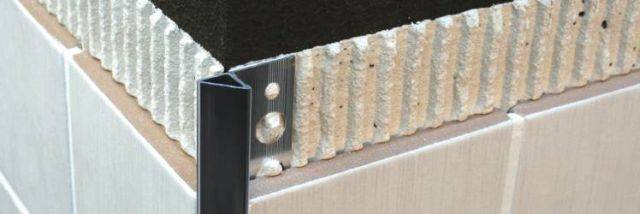

  3. Press the perforated anchoring leg of the EAT into the tile adhesive and align, mechanical fix if required.
  4. Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
  5. Solidly embed the tiles so that the tiled surface is flush with the top of the profile, the profile should not be higher than the tiled surface, but rather up to approximately 1 mm lower.
  6. Fill the joint completely with grout.


Description

Angle trims providing a finish to ceramic tiles with a specially engineered triangular shape to provide strength and protection for tiled edges and corners.

General information

Color

Silver

Finish

Matt

Bright

Brushed

Material

Aluminium

Length

2700 mm

Height

8 mm

10 mm

12 mm

Uniclass

Pr_35_90_31_32 Floor edging stripsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/12 Mosaic to

M40/120 Mosaic to

M40/5 Tiling to

M41/110 Terrazzo tiling

M41/120 In situ terrazzo

M41/130 Precast terrazzo

M41/140 Marble tiling

Product range

Aluminium Tile Trims

Specification data - Floor edging strips

Material

Aluminium.

Finish

Matt silver 81.

Bright silver 91.

Brushed effect 94.

Colour where exposed to view

Silver.

Cross section size

2700 x 11 x 10 mm.

Guidance for specification option:

(L x W x D).

Corners

EET082.

Guidance for specification option:

External corner, depth: 8 mm.

EET102.

Guidance for specification option:

External corner, depth: 10 mm.

EET122.

Guidance for specification option:

External corner, depth: 12 mm.

EIT082.

Guidance for specification option:

Internal corner, depth: 8 mm.

EIT102.

Guidance for specification option:

Internal corner, depth: 10 mm.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Literature

EAT Datasheet

EAT Datasheet

EAT Colour chart

EAT Colour chart
