Aluminium cassette panels with metal frame, weather barrier, insulation, concrete block and plasterboard lining on metal furrings

Verified by manufacturer 8 months ago

NBS

Aluminium cassette panels with metal frame, weather barrier, insulation, concrete block and plasterboard lining on metal furrings.

Jump to:
+44 (0)345 4569594 Website

Description

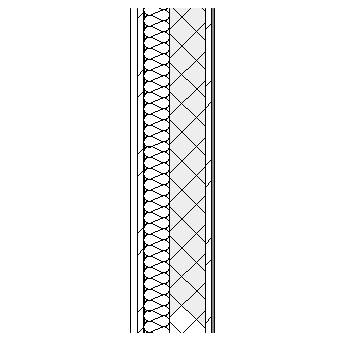

Cladding system comprising: 25 mm aluminium cassette panels, 100 mm metal frame, 2 mm polyethylene weather barrier membrane, 100 mm mineral wool batts insulation and 140 mm aggregate concrete blockwork lined with 25 mm metal furrings and 12.5 mm gypsum plasterboard.

BIM objects

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2013

2
