Brick cavity wall with partial fill insulation and plaster
Verified by manufacturer 9 months ago
Brick cavity wall with partial fill insulation and plaster.
Description

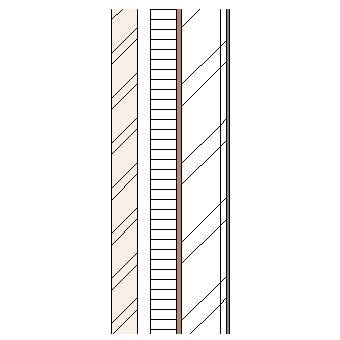

Unit wall system comprising: 102.5 mm clay brick, 50 mm cavity, 50 mm ridged board insulation, 100 mm concrete block and 13 mm plaster.
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2013 | 2 |
 IFC | IFC2X3 | 1 |
