Verified by manufacturer 2 months ago
Overall thickness: 24 mm

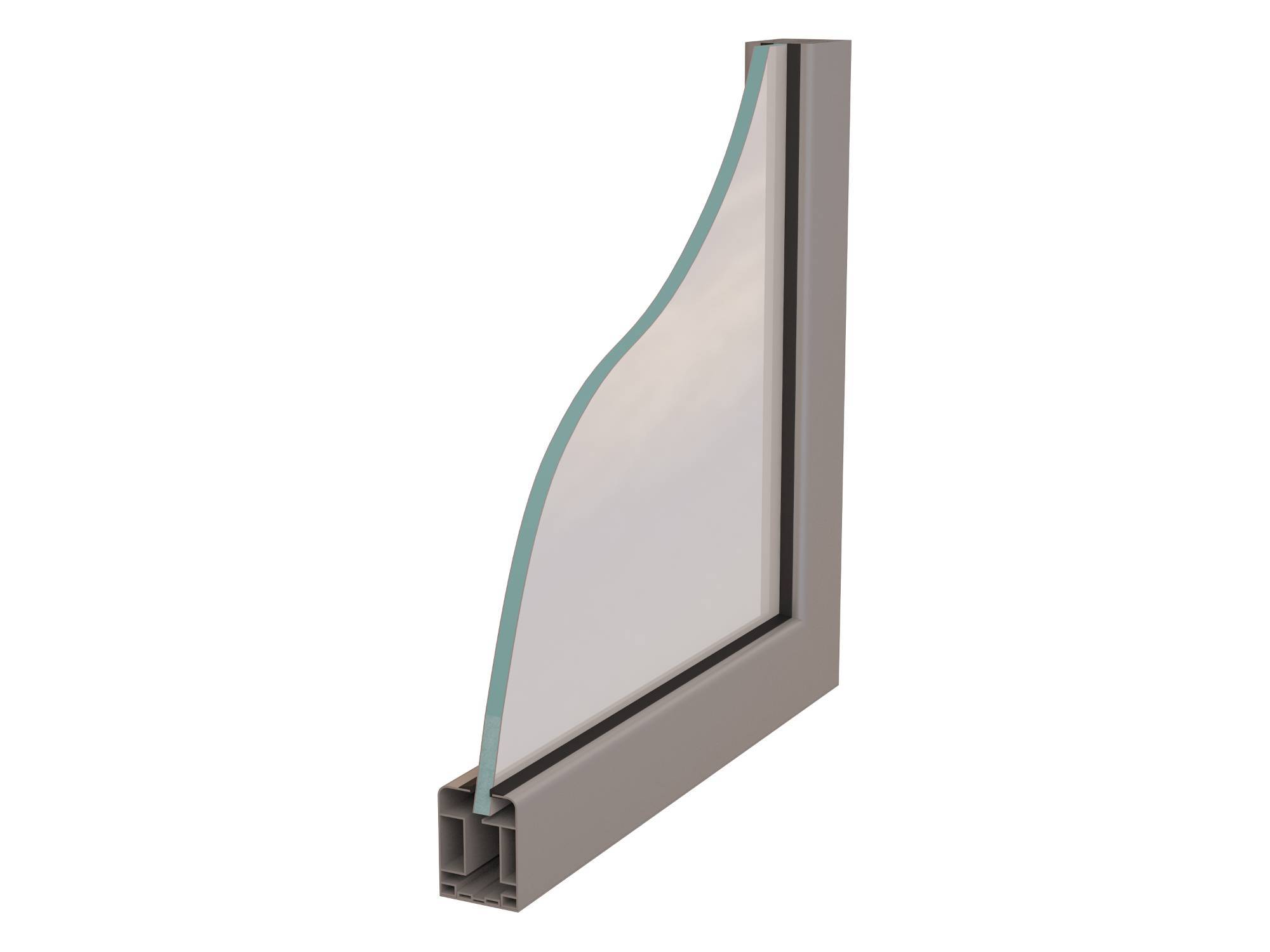

Domestic/trade insulated sandwich panels. Manufactured from powder coated aluminium faces with an XPS (extruded polystyrene) core. (Euroclass E to EN 13501-1)
Domestic/trade aluminium sandwich panels with XPS (extruded polystyrene) core, primarily designed for low-rise domestic applications such as:
Panels are manufactured from a Ravatherm XPS (extruded polystyrene) core faced each side with 0.9–1.0 mm polyester powder coated aluminium. Panels are vacuum bonded using a two-part polyurethane adhesive.
Features and benefits:
Alternative non-combustible cores are available upon request. Please see our 'FR-A' range of non-combustible window infill panels.
Color | Black Blue Brown Cream Green |
Finish | Powder-coated |
Material | Aluminium Extruded polystyrene (XPS) |
Shape | Rectangle Square Other |
Length | Bespoke |
Width | Bespoke |
Height | 24 mm 28 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | H43/120 Metal insulating sandwich panel H43/10 Metal insulating sandwich panel |
Panels | Factory-assembled modular insulating sandwich panels. |
Panel construction | |
Panel external face | |
Material | Aluminium. |
Grade | 1050. |
Profile | Smooth. |
Thickness | 0.9/1.0 mm. |
Panel internal face | |
Material | Aluminium. |
Grade | 1050. |
Profile | Smooth. |
Thickness | 0.9/1.0 mm. |
Core insulation | Extruded polystyrene (XPS). |
Panel dimensions | |
Length | Manufacturer guidanceConsult manufacturer and insert requirements. |
Cover width | Manufacturer guidanceConsult manufacturer and insert requirements. |
Thickness | 24 mm. |
Finish as delivered | |
Outer skin | |
Material | PPC. |
Thickness | Manufacturer's standard. |
Colour | Manufacturer guidanceMost RAL colours are available upon request. Consult manufacturer and insert requirements. |
Inner skin | |
Material | PPC. |
Thickness | Manufacturer's standard. |
Colour | Manufacturer guidanceMost RAL colours are available upon request. Consult manufacturer and insert requirements. |
Fire performance | |
Reaction to fire | |
Core | To EN 13501-1, Euroclass E. |
Adhesive | Two part polyurethane adhesive. |
Thermal conductivity | 0.031 w/mK. |
Typical compressive strength | 300 kpa. |
Tolerances | Length/width: +/- 2 mm. Thickness: +/- 0.75 mm. |
Weight | 6.4 kg/m². |
U-value | 1.13 w/m²k. |
Country of product manufacture | United Kingdom |
Material | Aluminium Extruded polystyrene (XPS) |
