Aluprof MB-86 - Door System

Name: Aluprof MB-86 - Door System
Brand: Aluprof UK
SKU: r9eLUnw63VUjUumobF5jm4

Verified by manufacturer 8 months ago

Aluprof MB-86 ST - standard framed system

Aluprof UK

Third party certifications:

Cradle to Cradle Certified
Certificate type
EPD
Certificate type
ISO 9001 Quality Management
Certificate type
BM Trada
Certificate type
Qualicoat approval
Certificate type
Secured By Design
Certificate type

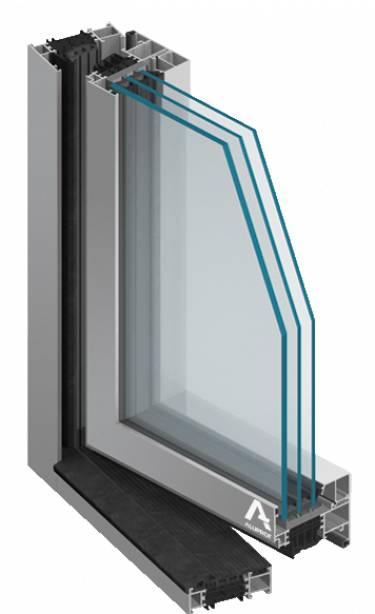

High performance, thermally broken aluminium swing door system with four thermal variations offer the best thermal performance to meet the latest standards and regulations.

Jump to:

+44 (0)161 9414005 Website

Application

Suitable for all project sectors: Commercial, education, healthcare, hospitality, offices, residential, retail and many more.

Description

The MB-86 door series have been designed to offer outstanding insulation properties.

Offered in four thermal varieties, 'ST', 'SI', 'SI+' and 'AERO'. With the high performing AERO version offering exceptionally low values of thermal performance.

In addition, a high level of profile inertia capability allows for greater construction sizes and weights.

Features and benefits:

Large selection of profiles available.
A maximum width of 1400mm and a maximum height of 3000mm per leaf.
Glazing thickness up to 61.5 mm: to enable the use of double and triple glazed options for thermal, acoustic and security solutions.
Centre gasket for improved thermal and weather tightness.
Appropriate for a variety of visible or concealed hardware available in steel, anodised and powder coated finishes.
Highly energy efficient U'value performance.
Clean, sharp lines of narrow extruded aluminium framing.
Various finishes available including powder coating and anodising in a wide range of colours.

Performance:

Air permeability to EN 12207:2001: Class 4.
Wind load resistance to EN 12210:2001: Class C1/B2.
Watertightness to EN 12208:2001: Class E1350.
Thermal insulation performance to meet the latest Part L requirements
PAS 24 and Secured by Design certification available

General information

Finish	Anodized Powder-coated Guidance for specification option: Polyester powder-coated.
Material	Aluminium
Shape	Square Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	25 year Guidance for specification option: Up to 25 years for polyester powder-coated finishes. Ten year Guidance for specification option: Up to ten years for anodized finishes.

Uniclass	Pr_30_59_24_02 Aluminium doorsetsPrimary
CAWS	L20/480 Doorsets L20/55 Doorsets

Specification data - Aluminium doorsets

Standard	Non-fire and/ or smoke rated windows to EN 14351-1 and BS 4873. Manufacturer guidance Consult manufacturer for details.
Third party accreditation	CE marked; Q-Mark; ITB - EPD Certification; Qualicoat/ Qualanod/ Qualideco; Secured by Design. Guidance for specification option: Qualicoat/ Qualanod/ Qualideco dependent on finish specified.
Configuration	Single, open in. Single, open out. Double, open in. Double, open out. Manufacturer guidance Consult manufacturer and insert requirements.
Doorset size	- Manufacturer guidance Add dimensions and/ or drawing references as required. Maximum (door leaf, h x w): 3000 x 1400 mm. Maximum weight: 200 kg.
Performance	-
Acoustic performance	- Manufacturer guidance Insert requirements; dependent on variant specified: Up to 42 (-1,-4) dB Rw.
Strength and durability	Not required. Class 1. Class 2. Class 3.
Thermal	- Manufacturer guidance Consult manufacturer and insert requirements.
Intruder resistance	-
Minimum requirement	Secured by Design. To PAS 24.
Application	Manufacturer's standard.
Conformity	Secured by Design.
Frame	-
Material	Aluminium.
Threshold	Standard rebated frame. Low level threshold. Low level ramped threshold. Low level thermal performance threshold. Automatic drop down threshold.
Perimeter seals or inserts	Ethylene propylene diene monomer (EPDM) weather seal. External mastic seal. Internal mastic seal.
Finish	-
Coating	Anodized by Aluprof to Qualanod standard, 25 µm film thickness. Polyester powder-coated by Aluprof to Qualicoat standard, 60 µm film thickness. Polyester powder-coated by Aluprof to Qualicoat 'seaside' standard, 60 µm film thickness. Polyester powder-coated by Aluprof to Qualideco standard, 60 µm film thickness. Polyester powder-coated by Aluprof to Qualideco 'seaside' standard, 60 µm film thickness. Bespoke. Guidance for specification option: Insert details of external and internal and coatings choices from the list above. Colours specified separately below.
Texture	Dependent on coating specified.
Colour	RAL, Matt. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. RAL, Satin Gloss. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. RAL, High Gloss. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. RAL, Structure. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. RAL, imitation anodized. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. NCS. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. Special effects. Guidance for specification option: Polyester powder-coated coatings only; includes fine and coarse structure, metallic effect or diverse gloss. Consult manufacturer for details and insert requirements. Decoral (wood grain effect). Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. Natural silver. Guidance for specification option: Anodized only. Coloured anodized to Aluprof 'C' range. Guidance for specification option: Anodized only; insert colour requirements.
Installation fasteners	Manufacturer's standard.
Door leaf	-
Thickness	Manufacturer's standard.
Core	Manufacturer's standard.
Material	Aluminium.
Perimeter seals	- Manufacturer guidance Consult manufacturer and insert requirements.
Glazing	-
Type	- Manufacturer guidance Thickness of 13.5–61.5 mm available; insert requirements.
Manifestation	- Manufacturer guidance Consult manufacturer and insert requirements.
Beading	-
Type	- Manufacturer guidance Consult manufacturer and insert requirements.
Material	Aluminium.
Fixing	Manufacturer's standard.
Finish	-
Coating	Anodized by Aluprof to Qualanod standard, 25 µm film thickness. Polyester powder-coated by Aluprof to Qualicoat standard, 60 µm film thickness. Polyester powder-coated by Aluprof to Qualicoat 'seaside' standard, 60 µm film thickness. Polyester powder-coated by Aluprof to Qualideco standard, 60 µm film thickness. Polyester powder-coated by Aluprof to Qualideco 'seaside' standard, 60 µm film thickness. Bespoke. Guidance for specification option: Insert details of external and internal and coatings choices from the list above. Colours specified separately below. Manufacturer guidance Consult manufacturer and insert requirements.
Texture	Dependent on coating specified.
External colour	RAL, Matt. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. RAL, Satin Gloss. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. RAL, High Gloss. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. RAL, Structure. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. RAL, imitation anodized. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. NCS. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. Special effects. Guidance for specification option: Polyester powder-coated coatings only; includes fine and coarse structure, metallic effect or diverse gloss. Consult manufacturer for details and insert requirements. Decoral (wood grain effect). Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. Natural silver. Guidance for specification option: Anodized only. Coloured anodized to Aluprof 'C' range. Guidance for specification option: Anodized only; insert colour requirements. Brushed silver anodized. Heavy brushed silver anodized. Manufacturer guidance Consult manufacturer and insert requirements.
Internal colour	RAL, Matt. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. RAL, Satin Gloss. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. RAL, High Gloss. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. RAL, Structure. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. RAL, imitation anodized. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. NCS. Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. Special effects. Guidance for specification option: Polyester powder-coated coatings only; includes fine and coarse structure, metallic effect or diverse gloss. Consult manufacturer for details and insert requirements. Decoral (wood grain effect). Guidance for specification option: Polyester powder-coated coatings only; insert colour requirements. Natural silver. Guidance for specification option: Anodized only. Coloured anodized to Aluprof 'C' range. Guidance for specification option: Anodized only; insert colour requirements. Brushed silver anodized. Heavy brushed silver anodized. As External colour. Manufacturer guidance Consult manufacturer and insert requirements.
Film thickness (minimum)	60 µm (PPC) or 25 µm (Anodized). Guidance for specification option: Dependent on coating specified.
Door accessories	- Manufacturer guidance Consult manufacturer and insert requirements.
Hardware	Standard, silver. Standard, white. Standard, brown. Standard, silver anodized. Standard, RAL colour to match frame. Guidance for specification option: Specify if interior and exterior values differ. Enhanced Security (PAS 24), silver. Enhanced Security (PAS 24), white. Enhanced Security (PAS 24), brown. Enhanced Security (PAS 24), silver anodized. Enhanced Security (PAS 24), RAL colour to match frame. Guidance for specification option: Specify if interior and exterior values differ. Enhanced Security (RC2), silver. Enhanced Security (RC2), white. Enhanced Security (RC2), brown. Enhanced Security (RC2), silver anodized. Enhanced Security (RC2), RAL colour to match frame. Guidance for specification option: Specify if interior and exterior values differ. Enhanced Security (RC3), silver. Enhanced Security (RC3), white. Enhanced Security (RC3), brown. Enhanced Security (RC3), silver anodized. Enhanced Security (RC3), RAL colour to match frame. Guidance for specification option: Specify if interior and exterior values differ. Enhanced Security (RC4), silver. Enhanced Security (RC4), white. Enhanced Security (RC4), brown. Enhanced Security (RC4), silver anodized. Enhanced Security (RC4), RAL colour to match frame. Guidance for specification option: Specify if interior and exterior values differ.
Architraves	-
Material	Manufacturer's standard.
Finish	- Manufacturer guidance Consult manufacturer and insert requirements.
Colour	- Manufacturer guidance Consult manufacturer and insert requirements.
Accessories	- Manufacturer guidance Consult manufacturer and insert requirements.

Ironmongery	Single point locking. Guidance for specification option: Consult manufacturer and insert requirements. Multipoint locking. Emergency exit (EN 179). Panic Escape (EN 1125). Electric strike single point locking. Electronic multipoint locking. Show more
Installation	The MB-86 door system specified above shall be fabricated and installed by Aluprof approved companies only, in complete accordance with the information and guidance distributed by Aluprof UK Ltd.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Recyclability	Cradle to cradle
Recycled content As defined in clause 7.8 of BS EN ISO 14021	59.57 %
