Anchorwall - Part-Height Steel Partition Wall

Name: Anchorwall - Part-Height Steel Partition Wall
Brand: Westgate Global Ltd
SKU: xwGbQkyNwxR6Y6AQgN1tDf

Verified by manufacturer 6 months ago

Double Skin - 47 mm

Westgate Global Ltd

Third party certifications:

Constructionline Gold
Certificate type
EcoVadis
Certificate type
ISO 9001 Quality Management
Certificate type
JOSCAR
Certificate type
Alcumus SafeContractor
Certificate type
smas WORKSAFE
Certificate type

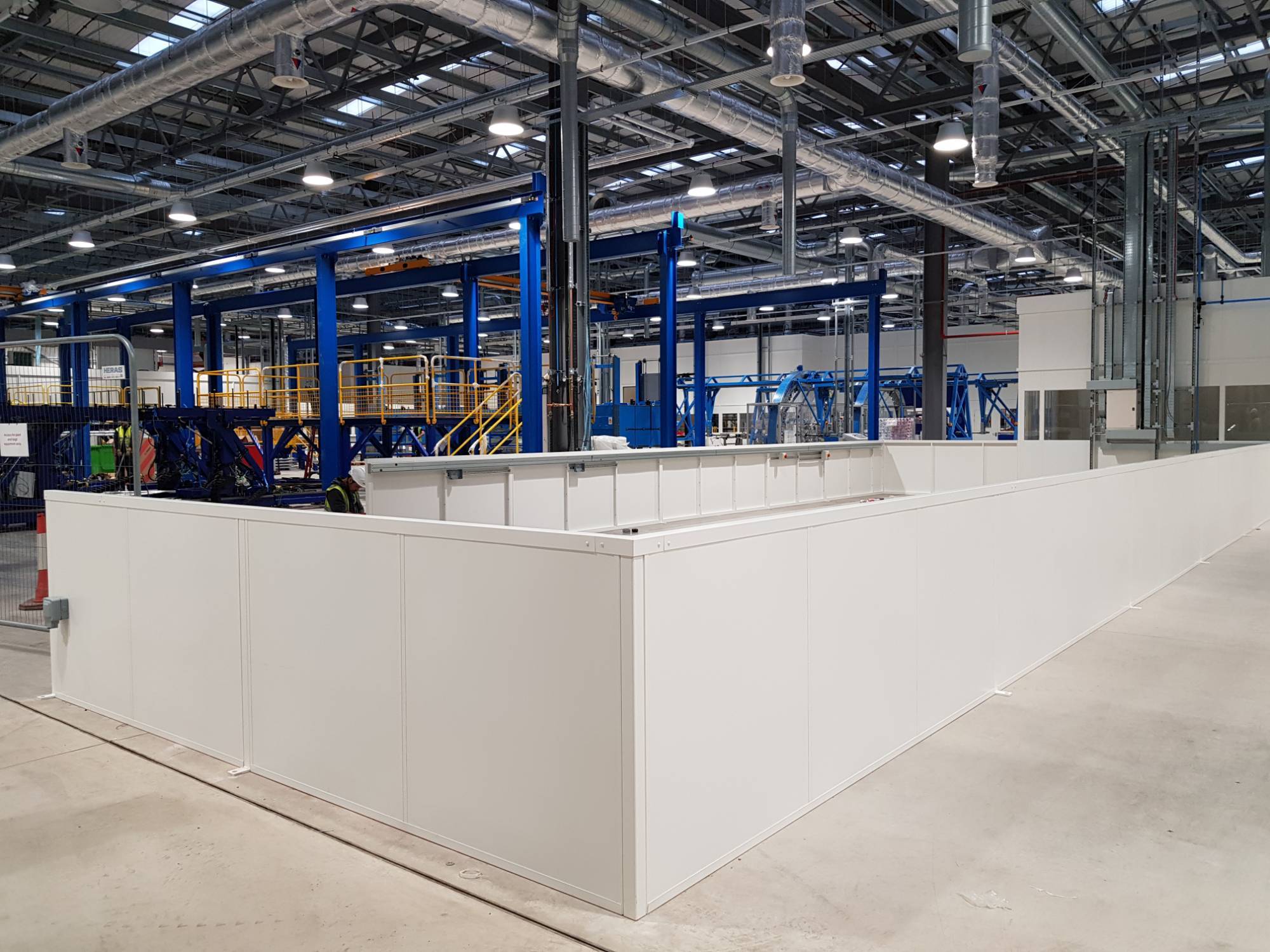

Anchorwall is a part-height steel partition wall system. Typically used in manufacturing, production and warehouse environments.

Jump to:

BOS

+44 (0)1785 242181 Website

Application

Fixed solid partition to separate different operational processes or machines/equipment.
Security segregation to secure high value goods or provide restricted access zones for (e.g. for chemicals and liquids storage).
Subdivide storage areas.
Create enclosed work areas.
Create factory floor site offices.
Create clean rooms.
Create anti-collapse mesh screen racking panels.
Used part-height to create a solid base, with Flexiwall above to deliver a floor-to-ceiling partition in tall buildings.

Description

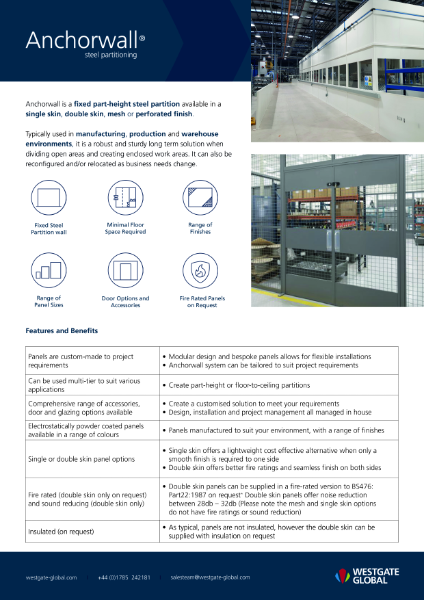

Anchorwall is a fixed part-height steel partition available in a single skin, double skin, mesh or perforated finish. Modular system design allows for clean and quick installations. Typical panel heights are available from 2.4 m to 3 m (or can be custom-made to suit project requirements).

Single skin offers a lighter weight alternative to the double skin option and is suitable when a smooth finish is only required to a single side. The double skin system offers sound reduction and can also be supplied in a fire-rated version on request. Mesh systems retain visibility and light transit. Anchorwall has a comprehensive range of accessories, finishes, colours, door, glazing, and insulation options.

Features and benefits:

Fixed steel partition wall.
Minimal floor space required.
Range of finishes.
Range of panel sizes.
Door options and accessories.
Fire rated panels on request.
Panels are custom-made to project requirements.
Can be used multi-tier to suit various applications.
Comprehensive range of accessories, door and glazing options available.
Electrostatically powder coated panels available in a range of colours.
Single or double skin panel options.
Fire rated (double skin only on request) and sound reducing (double skin only).
Insulated (on request).
Bespoke panels available on request.

General information

Color	Grey White Beige Other
Finish	Powder-coated
Material	Steel Glass
Shape	Rectangle
Width	1000 mm
Height	2400 mm 2700 mm 3000 mm

Uniclass	Ss_25_12_65_65 Panel partition systemsPrimary
CAWS	K30/10 Relocatable partition system K30/135 Relocatable partition/ ceiling system K30/130 Relocatable partition system

Specification data - Panel partition systems

Panel partitioning	Part height partition panels.
Fasteners	Manufacturers standard.
System accessories	Not required. Doors. Ceiling panels.
Samples required	None required. Panel partition or wall product samples.

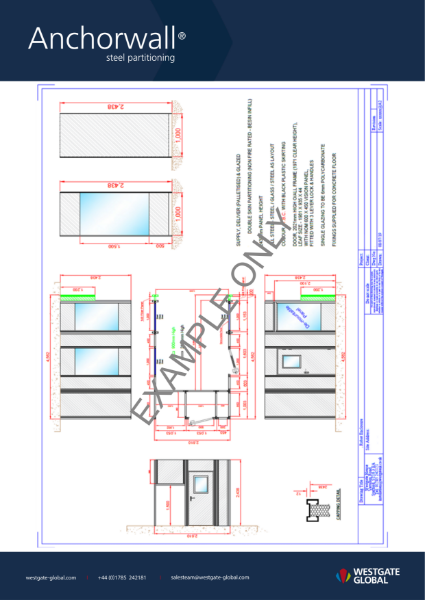

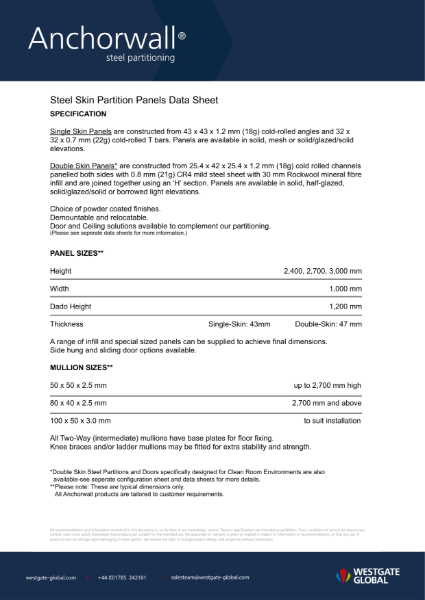

Construction	Double skin. Guidance for specification option: Constructed from 25.4 x 42 x 25.4 x 1.2 mm (18 g) cold rolled channels panelled both sides with 0.8 mm (21 g) CR4 mild steel sheet with 30 mm Rockwool mineral fibre infill and are joined together using an ‘H’ section. Panels are available in solid, half-glazed, solid/glazed/solid or borrowed light elevations.
Panel	Full steel. Half-glazed. Steel/glass/steel. Borrowed light elevations.
Panel finish	Electrostatically powder-coated.
Colour	Light grey. Medium grey. Dark grey. Sandstone. White. Stone. Show more
Panel heights	2400 mm. 2700 mm. 3000 mm.
Panel width	1000 mm.
Panel Thickness	47 mm.
Fire rating	Non-fire rated. To BS 476 Part22:1987 (60 mins integrity). Guidance for specification option: On request.
Sound reduction	28–32 db. Guidance for specification option: As standard.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Recyclability	All components can be repurposed or recycled through appropriate channels where facilities exist.
