Anhydrite Liquid Screed - Gypsol TS-15 - Free-Flowing and Self-Compacting Screed

Verified by manufacturer 3 months ago

LKAB Minerals Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

Gypsol TS-15 is a free-flowing and self-compacting screed. Specially formulated to be laid at just 15 mm deep.

Jump to:
0800 622 6023 Website

Application

Gypsol liquid screed can be laid on either bonded or unbonded over a polythene slip membrane in both commercial and domestic projects.


In general, customers use this particular screed to produce a smooth, flat, and level floor. This floor will form the sub-base for subsequent floor coverings for internal floors in a large variety of building types.


Specially trained screeders use specialized equipment to pump the screed in place. Because Gypsol TS-15 offers very high strength and high resistance to cracking, it is a very cost-effective method of leveling an existing floor slab. Like all Gypsol screeds, TS-15 is a highly environmentally friendly alternative to cement-based screeds.

Description

Gypsol Binder is an integral component of Gypsol TS-15, a specially formulated liquid screed, designed to offer a strong and durable ultra-thin topping to a solid substrate.


Gypsol TS-15 can be laid either bonded or unbonded over a polythene membrane to provide a highly versatile design solution. Gypsol TS-15 can be used in many applications, including as a cost alternative to bagged screeds to renovate existing rough construction floors, to level off pre-cast concrete planks, and where thicker screeds would lead to design problems with floor-to-ceiling heights. Gypsol TS-15 can, in some circumstances, be used in conjunction with low-profile underfloor heating systems subject to suitability.


Features and benefits:

  • Rapid application.
  • Vast coverage: 63 m² per m³.
  • Thin Screed sections: 15 mm Unbonded, 15 mm Bonded.
  • Fast drying: Drying rate more than 1 mm per day*.
  • No reinforcement nor fibres required.
  • No curing agents required.
  • Rapid return to service of work areas.
  • Foot traffic after just 48 hours.
  • Full loading after only seven days.
  • Assured high strength: Minimum Ca-C35 – F6.
  • Reduced requirement for Movement Joints Max 20 m length / Max aspect ratio 6:1.


*Independently tested and based on the fixed depth at 20˚C and 60% RH. Complete test data is available on request.

General information

Color

White

Material

Other

Guidance for specification option:

Gypsol Screed.

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

15 mm

Uniclass

Pr_35_31_06_78 Self-smoothing levelling screed mixesPrimary

CAWS

M12/35 Coated resin flooring

M12/120 Resin flooring

M12/12 Resin flooring

M12/110 Resin flooring

M12/10 Resin flooring

M10/160 Proprietary self smoothing levelling screeds

Specification data - Self-smoothing levelling screed mixes

Binder

Gypsol anhydrite binder.

Membrane

Polythene membrane.

Appearance

Off white fluid mortar.

Density

2000 kg/m³ (dry); 2200 kg/m³ (wet).

Strength

C35—F6.

Manufacturer guidance

Minimum.

Required Flow

To EN 13454-2, 230—270 mm.

Reaction to fire

Class A1fl Non-Combustible.

Working time

2 hours.

Guidance for specification option:

  • Place and finish within 2 hours of batching.
  • Finish within 1 hour of placing.

Drying time

24—48 hours (foot traffic); 7 days (loading).

Guidance for specification option:

Gypsol TS-15 can be force dried after 7 days.

Manufacturer guidance

@20°C/60% RH.

In excess of 1 mm /day.

Depth

15 mm.

Guidance for specification option:

  • Gypsol TS-15 has been independently tested for its suitability to be laid unbonded at 15 mm.
  • Prepare the substrate in accordance with BS 8204:7:2003 using a gritted two coat epoxy resin DPM or similar.

Manufacturer guidance

Minimum.

ThermalConductivity

Up to 2.5 w/mK.

Sustainability data

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

3 kg CO₂ eq/m²

Guidance for specification option:

Minimum: 2 kg/m².

Manufacturer guidance

Maximum.

Third party certifications

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

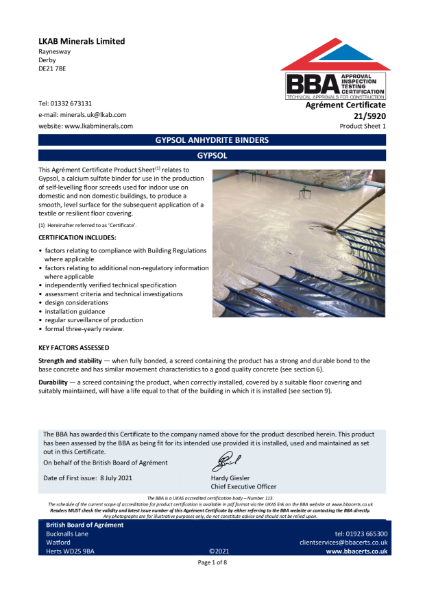

BBA Certificate

EPD

EPD

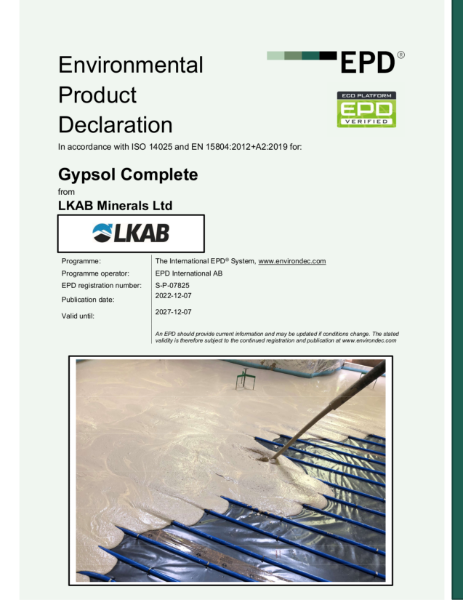

Gypsol Binder and Gypsol Complete Binder EPD

Literature

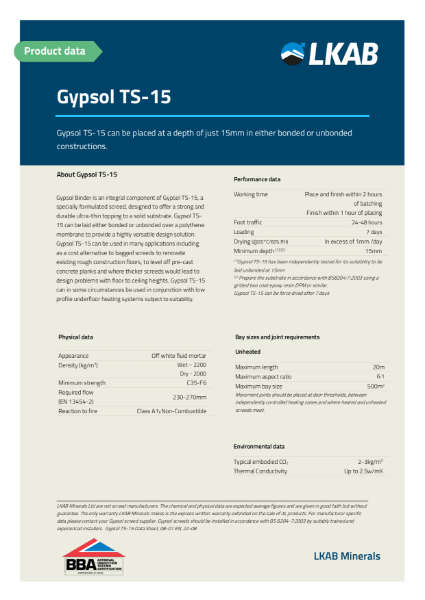

Gypsol TS-15

Gypsol TS-15

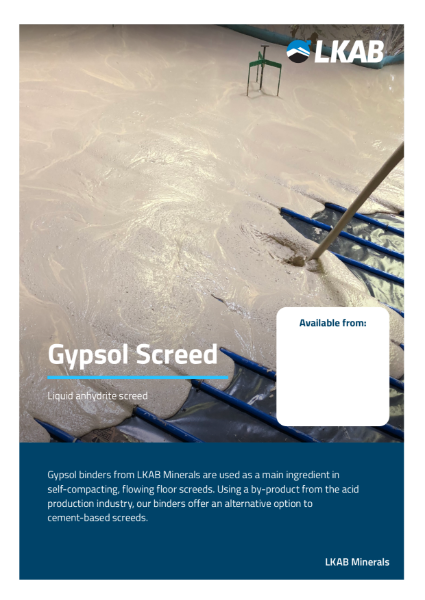

Gypsol Product Brochure

Gypsol Product Brochure

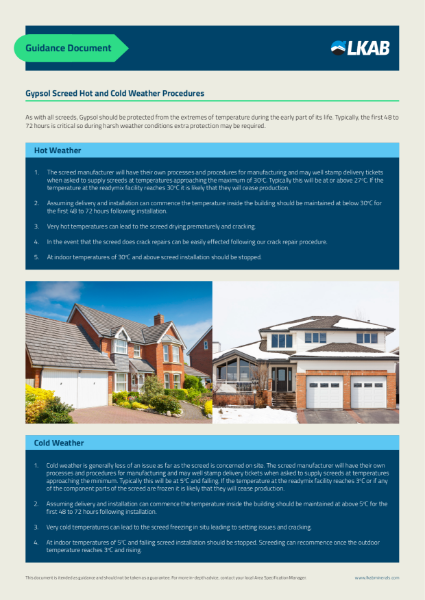

Hot and Cold Weather Guide
