Application

Suitable for all wall and floor applications. Internal or external refurbishment and new build projects.

Description

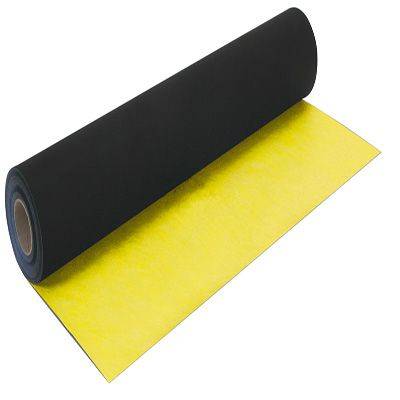

A thin and light waterproof material protects substrates from water damage below tiles. A universal membrane suitable for use on both floors and walls alike, it is set into tile adhesive, building a superior waterproof barrier.


Features and benefits:

  • A very thin membrane, with uniform thickness and no weak points, AquaeGUARD™ is buried within the tile adhesive.
  • Used below all tiles applications, the product creates a waterproof barrier protecting substrates from water damage. The three ply membrane is manufactured from polyethylene sheet sandwiched between two outer layers of non-woven polypropylene.
  • Joints between adjoining materials and awkward shapes are bridged with jointing tape and pre-formed accessories.
  • Suitable for use with all tile adhesives.
  • Tiles can be fitted immediately, improving project installation time.
  • Can be used in all internal sealing projects, with materials such as under tiles or sheet stone slabs.
  • Very easy and quick to use.


General information

Color

Black

Yellow

Material

Polythene

Size

Guidance for specification option:

Roll length: 5 m, 10 m or 30 m.

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J40/120 Loose-laid plastics or rubber sheet damp-proofing

J40/20 Loose-laid plastics or rubber sheet damp-proofing

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/12 Mosaic to

M40/120 Mosaic to

M40/27 Intermediate substrate

M40/470 Intermediate substrate

M40/5 Tiling to

N13/375 Shower units

N13/377 Wet room showers

N13/40 Shower units

Specification data - Plastics sheets

Material

Low-density polyethylene (PE-LD).

Purpose

Water resistance.

Performance characteristics

-

Elongation to break

Lateral elongation at break point: 120%, longitudinal elongation at break point: 80%.

Third-party certification

ETAG 022 (European guideline) for wet room floors/walls.

Physical properties

-

Colour

Black and yellow.

Weight (minimum)

290 g/m².

Dimensions

-

Thickness (minimum)

0.4 mm.

Width (minimum)

1000 mm.

Roll length (minimum)

5 m.

Guidance for specification option:

LW00700500.

10 m.

Guidance for specification option:

LW00700501.

30 m.

Guidance for specification option:

LW00700502.

Adhesive strength designation

>0.5 N/mm.

Low temperature stability

-30°C.

Upper temperature stability

90°C.

Breaking load

Lateral breaking load: 45N/15 mm, Longitudinal breaking load: 89N/15 mm.

Burst pressure

1.5 bar.

Manufacturer guidance

Consult datasheet for chemical stability.

Accessories

None.

05/10 kit, universal barrier 5 m, 10 m joint tape, three way internal corner LW00700513.

10 m JT universal barrier jointing tape, 120 mm wide, 10 m roll LW00700508.

10/15 kit, universal barrier 10 m, 15 m joint tape, three way internal corner LW00700514.

15 m JT universal barrier jointing tape, 120 mm wide, 15 m roll LW00700509.

Show more

Layers

>80 m.

Manufacturer guidance

Equivalent air layer.
