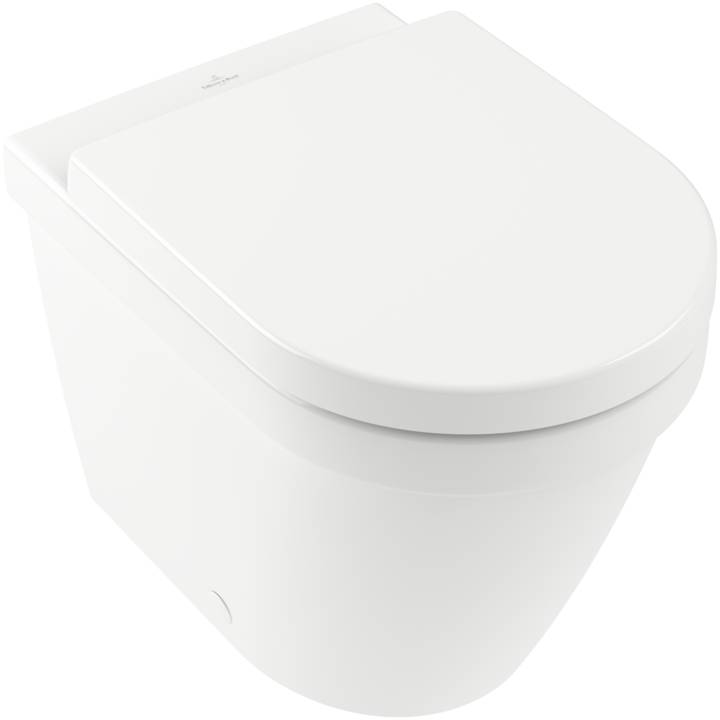

Architectura Washdown WC, Horizontal Outlet 5690R0
Verified by manufacturer 9 months ago
Rimless, washdown toilet.
Application
Suitable for floor mounted, back to wall WC pan.
Description
Rimless, washdown toilet.
Features and benefits:
- DirectFlush.
- Sanitary ceramics.
- With fastening set for concealed fastening.
- Complies with EN 997.
- LEED 4.
- European water label 3,375 l.
- With water-saving AQUAREDUCT® system: flush volume 3/ 4.5 litres.
- Horizontal outlet.
- Vertical outlet possible with Vario drainbend.
- Please order toilet seat separately.
General information
Color | White |
Material | Ceramic Guidance for specification option: Sanitary ceramics |
Shape | Oval |
Width | 370 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC pans
Standard | To BS EN 997. |
Form | Floor-mounted, back to wall. |
Pan height | 400 mm. |
Materials | |
Body | Ceramics.Guidance for specification option: Sanitary ceramics. |
Finish and colour | White. |
Water supply, outlet and seat holes | |
Outlet | Horizontal. |
Integral accessories | Toilet seat and cover SlimSeat (9M7061).Toilet seat and cover SlimSeat (9M70S1).Toilet seat and cover (98M9C1).Toilet seat and cover (98M9D1). |
Weight | 25.5 kg. |
Width | 370 mm. |
Depth | 540 mm. |
Height: | 400 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 3Ds Max | - | 1 |
 IFC | - | 1 |
 ARCHICAD | - | 1 |
 SketchUp | - | 1 |
 Revit | - | 1 |
 OBJ | - | 1 |
