Application

Structural thermal break suitable for furring exterior walls on a new/ existing masonry or steel stud backing.

Description

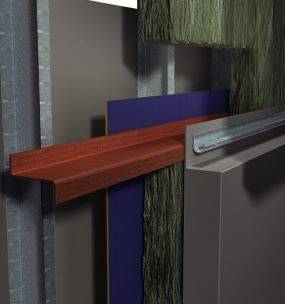

Non-metallic Z-girts are a suitable product for furring exterior walls on a new/ existing masonry or steel stud backing. Armatherm™ Z-girts were developed to reduce heat lost in the building envelope while increasing the effective R-value of the total wall assembly.


Armatherm Z Girt thermal break helps to meet ASHRAE 90.1's requirements for continuous insulation by completely eliminating metal-to-metal contact and highly conductive elements associated with steel stud wall assemblies.


Features and benefits:

  • Thermal break material has high thermal efficiency for clad walls.
  • Provides continuous insulation meeting energy code requirements.
  • Cost-effective in comparison with steel 'Z' girts with additional thermal solutions.
  • As efficiency is increased, overall insulation thickness can be reduced.
  • Can be easily shimmed for alignment.

General information

Color

Red

Brown

Finish

Gloss

Material

Phenolic resin

Shape

Other

Guidance for specification option:

Z shaped.

Length

228.6 mm

Width

38 mm

51 mm

Height

38.1 mm

50.8 mm

63.5 mm

76.2 mm

101.6 mm

Warranty description

Other

Guidance for specification option:

Consult manufacturer for guidance.

Uniclass

Pr_35_90_15_89 Thermal break connection platesPrimary

CAWS

E40/445 Insulating load transfer systems

E40/445 Insulating load transfer systems

E40/448 Thermal break connection plates

E40/448 Thermal break connection plates

E40/440 Load transfer systems

Specification data - Thermal break connection plates

Material

Fibre-reinforced plastic.

Dimensions

-

Length

228.6 mm.

Width

38 ± 0.20 mm.

Thickness (maximum)

4.0 ± 0.2 mm.

Depth

38.1 ± 0.20 mm.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United States

Material

Phenolic resin

Manufacturing plant location

Expected Life

Lifetime
