Armitage Shanks Janitorial Unit c/w monobloc tap (JU)
Verified by manufacturer 5 months ago

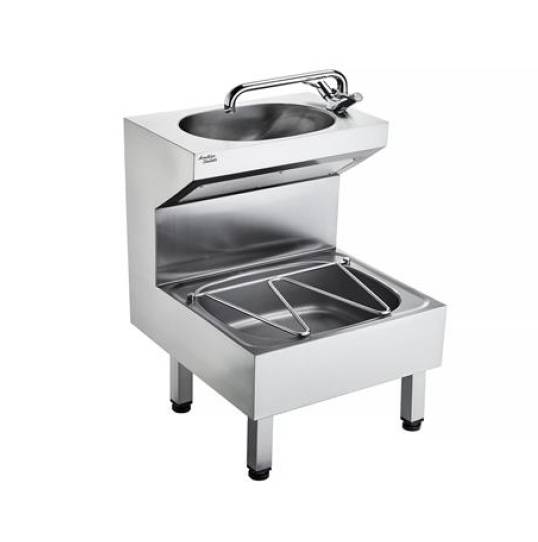

HBN compliant stainless steel healthcare janitorial unit with mixer (ref: JU).
Application
Suitable for hospitals. Typical room applications include cleaners rooms.
Description
Stainless steel healthcare janitorial unit (ref: JU) complete with mixer tap with restricted swivel, tamper proof concealing panel for washbasin trap, hinged bucket grating to sink, stainless
steel legs with adjustable feet and earthing tag.
Features and benefits:
- Manufactured from grade 1.4301 (304) stainless steel.
- Monoblock mixer provided with restricted swivel nozzle.
- Water Regulations Approval Scheme (WRAS) approved.
- Functional Standard: DDA & BS8300 Stainless Steel conforms to BS EN 100088:part 2:2005.
- HBN 00-10 Part C Compliant ref: JU
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 570 mm |
Width | 500 mm |
Height | 880 mm |
Uniclass | |
CAWS | N13/388 Combined slop hoppers and sinks N13/331 Sinks N13/25 Sinks |
Specification data - Janitorial sinks
Form | Stainless steel combination sink and basin janitorial unit with mixer. |
Finish and material | Stainless steel Type 1.4301 (304) to BS EN 10088-1. |
Options | Not required.A5900 - TMV thermostatic mixing valve, 15 mm. |
Dimensions | 880 x 500 x 570 mm. Manufacturer guidanceOverall height x width x depth. |
Literature
Healthcare Brochure
Specifying Healthcare Sanitary Assemblies CPD Synopsis
