KWC DVS 600mm Disposal Unit (DU) - Sink

Verified by manufacturer 6 months ago

Bushboard Washroom Systems Ltd

HBN compliant stainless steel wall hung domestic services disposal unit (ref: DU).

Jump to:
+44 (0)1536 533620 Website

Application

Wall mounted in healthcare settings. For the disposal of liquid and solid waste in connection with clinical procedures. Typical room applications include dirty utility and disposal. For use with panel or wall mounted taps.

Description

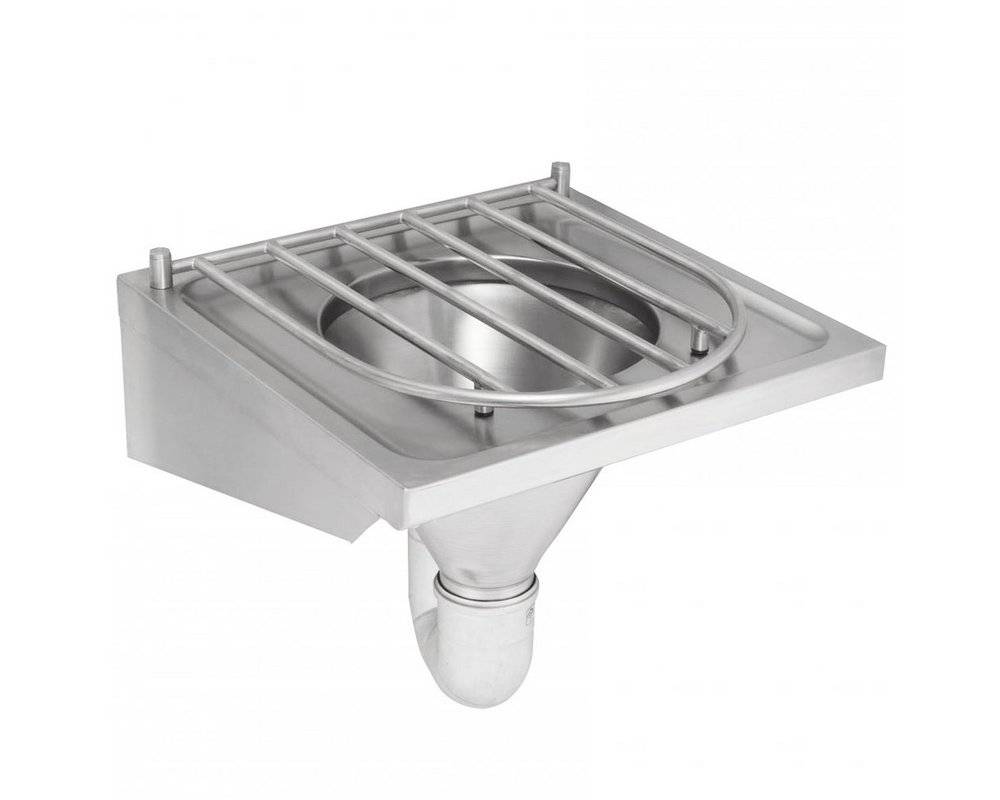

A wall hung domestic services disposal unit manufactured from 1.2 mm thick, grade 1.4301 (304) stainless steel with a satin polish finish. It incorporates a sluice hopper with a back inlet suitable for duct mounted services. The hopper has a 110 mm diameter outlet that can accept a P or S trap, available as an extra. 9 litre capacity plastic cisterns with plastic downpipe are available and fitted with a 13 mm HP brass valve, plastic float and CP metal flushing lever handles. The unit should only be fed from a cistern or tank water supply. It is fixed to the wall using two cantilevered brackets, available as extra (wall fixings are not supplied).


Features and benefits:

  • Grade 1.4301 (304) stainless steel.
  • Satin surface finish.
  • Descaled bowl.
  • Mounted on brackets or front leg supports.
  • Suitable for duct mounting.
  • Manufactured in accordance with the old HTM64 standard and the Health Building Notes 00-10, part C.
  • HBN 00-10 Part C compliant ref: DU

General information

Color

Silver

Finish

Satin

Material

Stainless steel

Shape

Square

Length

600 mm

Width

600 mm

Height

300 mm

Uniclass

Pr_40_20_96_44 Janitorial sinksPrimary

CAWS

N13/382 Slop hoppers

N13/386 Disposal units

N13/331 Sinks

N13/25 Sinks

Specification data - Janitorial sinks

Form

Stainless steel combination sink and basin unit.

Finish and material

Satin stainless steel, Type 1.4301 (304).

Guidance for specification option:

Material thickness: 1.2 mm.

Options

Not required.

9 L plastic cistern with plastic downpipe.

P trap.

S trap.

Mounting

Wall mounted.

OverallDepth

600 mm.

OverallWidth

600 mm.

Overall height

300 mm.

Net weight

11.10 kg.

Capacity

6 Litre.

Manufacturer guidance

Flushing capacity.

Sustainability data

Material

Stainless steel
