ASSA ABLOY - Exidor 285 Door Set for Rebated Double Rebated Doors
Verified by manufacturer 11 months ago

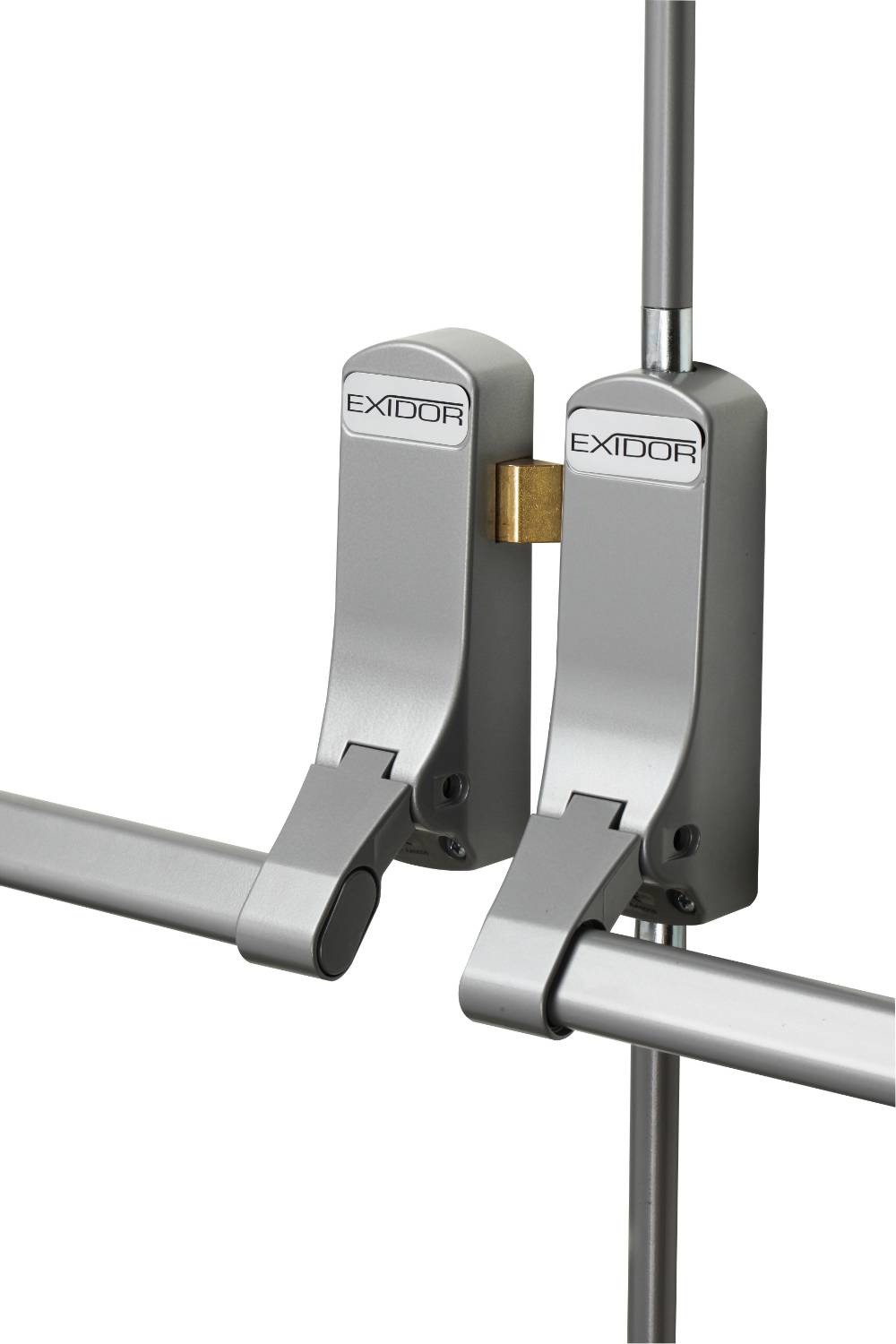

A panic latch, panic bolt and a box keep for rebated double doors.
Application
Fire rated for use on timber and steel doors.
Description
The Exidor 285 for rebated double doors is a complete package consisting of a panic latch (296), a panic bolt (294) and a box keep (300).
Features and benefits:
- Non-handed.
- Fire rated for use on timber and steel doors.
- Surface mounted.
- Closed arm design.
General information
Color | Silver Beige Black Gold Red |
Material | Steel Timber |
Shape | Rectangle |
Length | 55 mm |
Width | 98 mm |
Height | 173.5 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/32 Panic exit devices P21/30 Emergency exit devices P21/577 Panic exit devices P21/571 Emergency exit devices |
SKU Code | 285 |
Specification data - Panic exit devices
Classification data | |
Standard | To BS EN 1125. |
Classification grades (minimum) | |
Category of use | To BS EN 1125, grade 3. |
Durability | To BS EN 1125, grade 7. |
Door mass | To BS EN 1125, grade 6. |
Suitability for use on fire and smoke doors | To BS EN 1125, grade 1. |
Safety | To BS EN 1125, grade 1. |
Corrosion resistance | To BS EN 1125, grade 3. |
Security | To BS EN 1125, grade 2. |
Projection of bar | To BS EN 1125, grade 2. |
Type of bar operation | To BS EN 1125, grade A. |
Field of door application | To BS EN 1125, grade A. |
Material and finish | Hot-dip galvanized carbon steel, powder-coated. |
Colour | Silver. |
Execution | Fasteners for hardware |
Accessories | 298 Outside access device - knob operated. 302EA Outside access device with Euro aperture - knob operated. 302EC Outside access device with Euro cylinder - knob operated. 302OA Outside access device with oval aperture - knob operated. 302OC Outside access device with oval cylinder - knob operated. 322EA Outside access device with Euro aperture - lever operated. 322EC Outside access device with Euro cylinder - lever operated. 304 Exit alarm. 299 Dogging device. CL1 Mechanical push button outside access device. CL2 Mechanical push button outside access device with passage facility. CL3 Quick code mechanical push button outside access device. CL4 Quick code mechanical push button outside access device with passage facility. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Steel Timber |
Recyclability | Manufacturer guidanceMetals widely recycled. |
Literature
Exidor 200/300 Series Brochure
