ASSA ABLOY - Exidor 302EA Outside Access Device
Verified by manufacturer 4 months ago

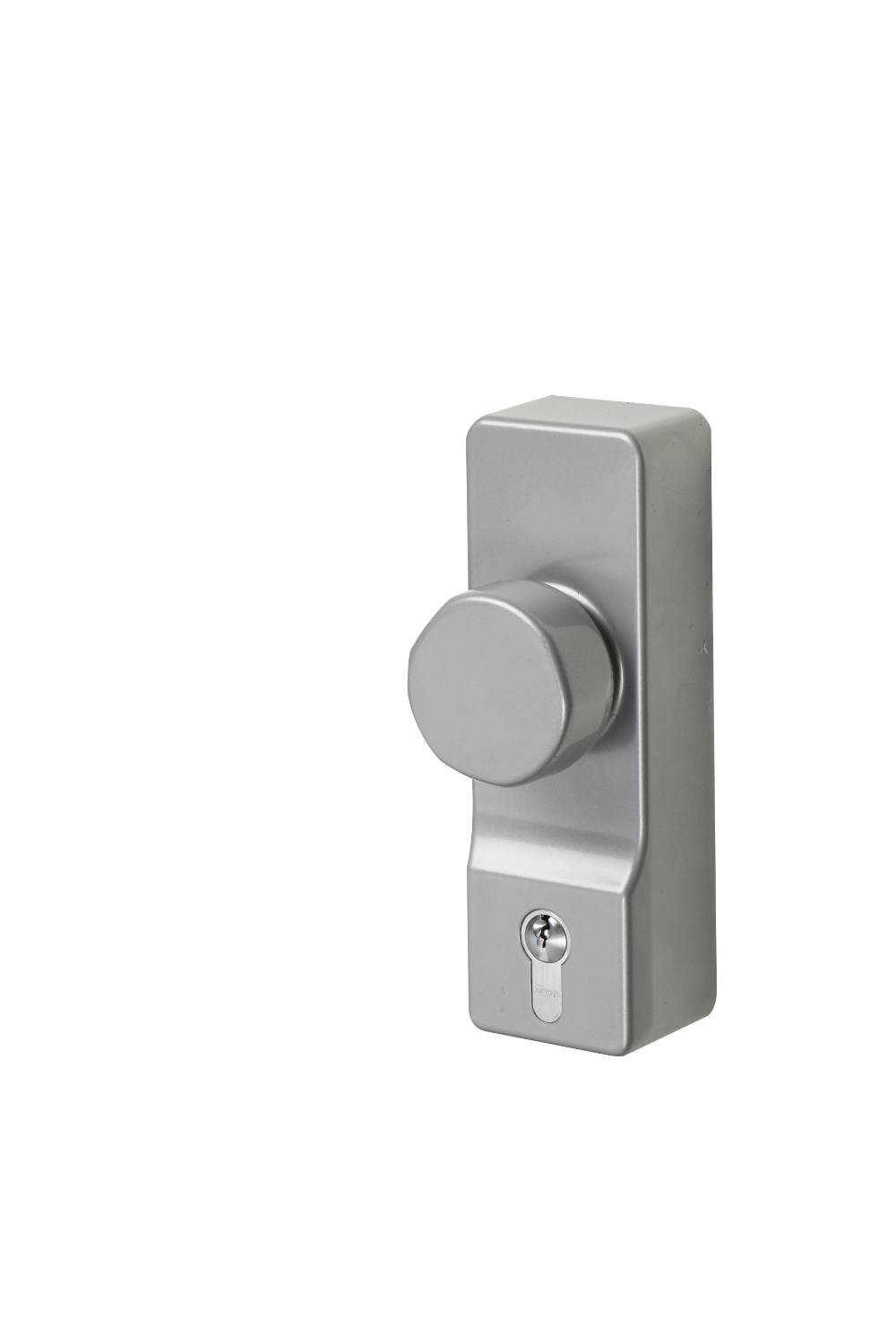

Knob outside access device with Euro aperture.
Application
- Fire rated for use on timber and steel doors.
- Suitable for timber, steel and aluminium doors.
Description
Suitable for use with the Exidor 200 & 300 series bolts and latches, the Exidor 302 offers access from the outside of a door up to 45 mm thick.
Features and benefits:
- Non-handed.
- Surface mounted.
- Fire rated for use on timber and steel doors.
- Surface mounted on the outside of the door using concealed machine screws.
- Supplied as standard for doors up to 45mm thick.
- Longer spindles and screws are available on request for door thicknesses over 45 mm.
- Can be used with a 40 mm Euro profile cylinder (cylinder not supplied).
General information
Color | Silver Black White Gold |
Shape | Rectangle |
Length | 60 mm |
Width | 42.5 mm |
Height | 178 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/40 Door knobs P21/32 Panic exit devices P21/30 Emergency exit devices P21/620 Door knobs P21/577 Panic exit devices P21/571 Emergency exit devices |
Specification data - Emergency exit devices
Colour | Silver.Black.White.Stainless Steel.Brass. |
Integral accessories | External locking attachment suited with other locks. |
Execution | Fasteners for hardware. |
Dimensions | 100 x 58 x 68 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | Manufacturer guidanceMetals widely recycled. |
