Aurubis Copper Fully Supported Roofing and Facade Cladding Shingle - Copper Fully-Supported Shingle
Verified by manufacturer 6 months ago
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Certificate type
EPD
Certificate type
ISO 9001 Quality Management
Certificate type
A copper fully-supported shingle for roofing, dormer covering, facade cladding, and interior wall/ceiling finishes.
Application
Shingles are normally installed to a ventilated plywood substrate, however other substrates can be considered. A standard range of details are also available, consult manufacturer for details. Suitable as a fully supported roof covering, dormer roof covering, wall facade cladding and can also be used as a decorative copper wall covering.
Installation:
Contact Metal Solutions for a list of approved installers by postcode.
Email:
gaynor@metalsolutions.uk.com
Description

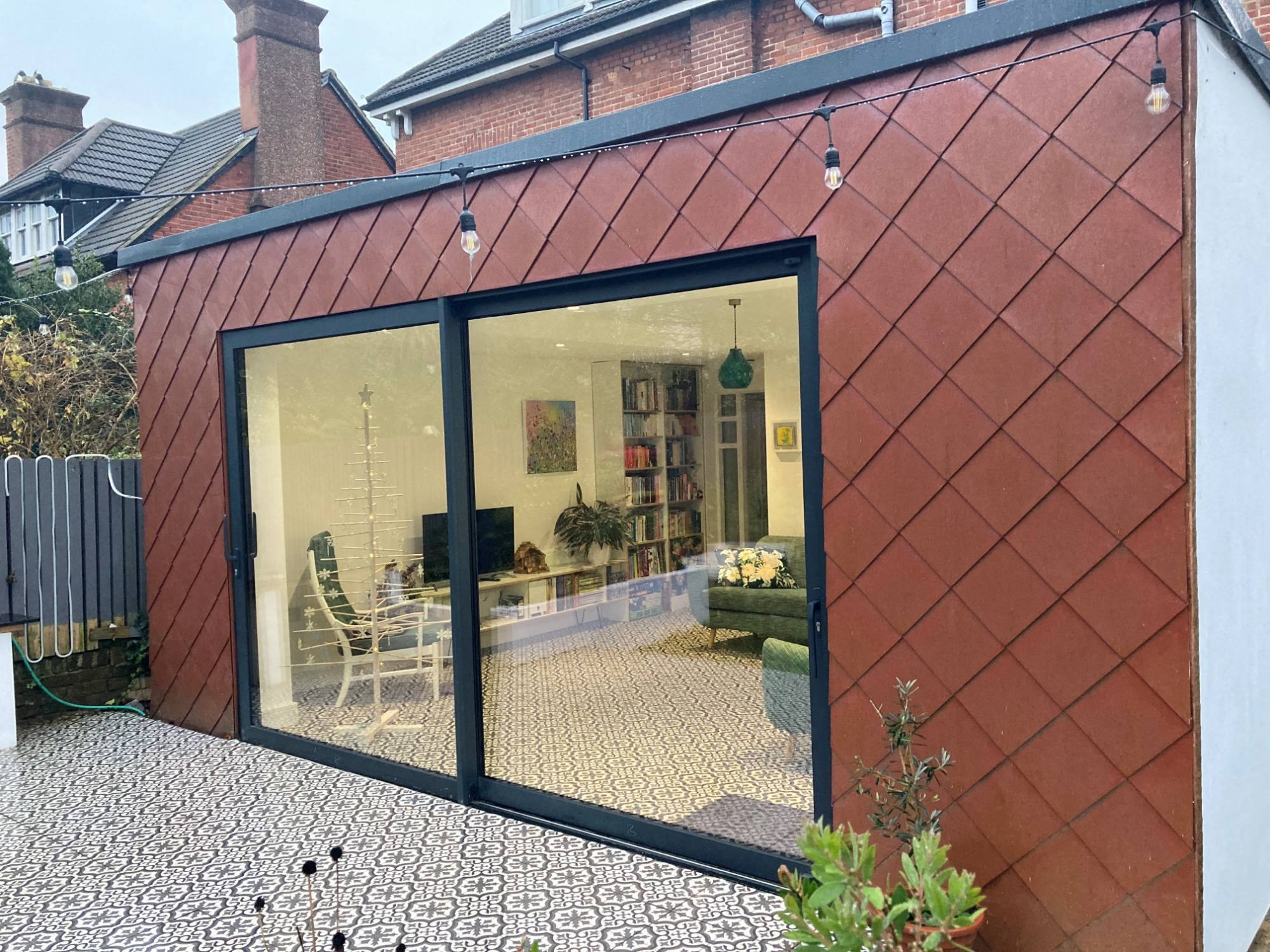

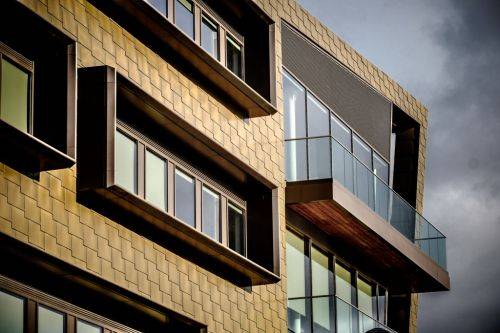

Aesthetically pleasing shingles as a versatile roofing and cladding solution, available as square, rectangular, triangular, diamond ,rhomboid and Flatlock (elongated shingle) in a range of different sizes.
Available in a variety of copper finishes.
Features and benefits:
- Manufactured from lightweight corrosion resistant phosphorus deoxidized copper (Cu-DHP, 99.9% pure) which complies with EN 1172.
- Material - A1 fire rated, anti microbial.
- Exceptional, indefinite lifespan demonstrated over hundreds of years.
- The covering can be laid both horizontally, vertically and diagonally. This method is used mostly for facades.
- The single joint means that a roof slope of no less than 25° is required so that the roof is made sufficiently tight.
- Shingles can also be employed to clad small surfaces such as dormers, fascias or gables.
Substructure:
Suitable substructure materials:
- Ventilated 18 mm-thick weather and boil proof (WBP) plywood (standard).
- Ventilated oriented strand board OSB3.
- Composite panel.
- Rigid insulation.
- Profiled metal deck.
Underlay:
ISO-Mat Pro® underlay is recommended for cold roof applications.
ISO-Mat Metal® underlay is recommended for warm roof applications.
Available from:
roofing- tools.com
Fixing clips:
SM-ELH-27.
Available from:
roofing-tools.com
Installation:
A list of Approved Installers by postcode is available on request. Contact Email:
gaynor@metalsolutions.uk.com
General information
Finish | Copper |
Material | Copper |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | H73/5 Copper sheet fully supported covering to dormers H73/15 Weathering to H73/150 Copper sheet fully supported covering to dormers H73/130 Copper sheet fully supported wall covering H73/110 Copper sheet fully supported roof covering H73/3 Copper sheet fully supported roof covering H73/250 Weathering to |
Specification data - Copper long strips
Standards | |
Sheet, strip and plate | Roof and facade cladding sheet manufactured from coil. |
Material designation | To EN 1172, Cu-DHP.Guidance for specification option: 99.9%. |
Identification | Manufacturer guidanceSee manufacturer's literature for guidance. |
Dimensions | Manufacturer guidanceVarious options available; consult manufacturer and insert requirements. |
Temper | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Thickness | Manufacturer's standard. |
Factory finishes | Aurubis Nordic Standard.Guidance for specification option: Traditional 'bright' mill finish. Aurubis Nordic Brown, Light.Guidance for specification option: Pre-oxidized; minimizes hand and other construction marks that may occur during installation. Aurubis Noridc Brown, Dark.Guidance for specification option: Pre-oxidized; minimizes hand and other construction marks that may occur during installation. Aurubis Nordic Brass.Guidance for specification option: Copper/ zinc alloy with distinctive yellow colour which darkens to a dark brown over approx. a year when exposed to the atmosphere. Aurubis Nordic Brass WeatheredAurubis Nordic Bronze.Guidance for specification option: Copper/ tin alloy. Initially colour is similar to Nordic Standard; changes to a dark chocolate brown when exposed to the atmosphere. Aurubis Nordic Green.Guidance for specification option: Pre-patinated (mineral based). Speckled finishes can be requested; consult manufacturer for details. Aurubis Nordic Blue.Guidance for specification option: Pre-patinated (mineral based). Speckled finishes can be requested; consult manufacturer for details. Aurubis Nordic Royal.Guidance for specification option: Alloy of copper with aluminium and zinc. Rich gold colour, with a thin protective oxide layer. Matt finish. |
Reaction to fire | |
External face | To BS EN 13501-1, Class A1. |
Internal face | To BS EN 13501-1, Class A1. |
Standards | To EN 1172:1997. |
Product Reference | Aurubis Shingles |
Design | Diamond. Flatlock. Guidance for specification option: Large format rectangle. Rectangular. Rhomboid. Square. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Finland |
Country of product manufacture | United Kingdom |
Material | Copper |
Manufacturing plant location | |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 4.19 kg CO₂ eq/kg |
Recyclability | 99% recyclable after use |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 97 % |
Third party certifications
Third party certifications
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Aurubis - Fire Accreditation
EPD
Aurubis - Nordic Brass EPD
EPD
Aurubis - Nordic Bronze EPD
EPD
Aurubis - Nordic Brown EPD
EPD
Aurubis - Nordic Green EPD
EPD
Aurubis - Nordic Royal EPD
EPD
Aurubis - Nordic Standard Antique EPD
EPD
Aurubis Sustainability Report 2023
ISO 9001 Quality Management
ISO 9001 Metal Solutions
