Automatic (AOV) Rectangular EIS smoke control damper (SCD) -fire resistance up to 120 minutes- AA, Multi, C10.000, shaft installation c/w. grille, including aesthetical, architectural design option
Application
AVANTAGE MP - Automatic Smoke Control Damper (AOV) - 60-90-120 minutes, with "aesthetic design" grille option
Automatic (AOV) Rectangular EIS smoke control damper (SCD) -fire resistance up to 120 minutes- AA, Multi, C10.000, shaft installation
c/w. grille, including aesthetical, architectural design option
Avantage MP Certified installations and sealing methods
- In shaft:
- Rigid: concrete, masonry, builders work.
- Other shaft material per D.o.P.
- Deviations from D.o.P. see additional supporting document.
- For full details: D.o.P. (associated content).
Avantage MP Fields of application
- Automatic Opening Vent (AOV).
- Smoke & Heat Exhaust Ventilation Systems (SHEVS)
- Natural and/or mechanical.
- Pressure Differential Systems (PDS).
- Both for air supply and for smoke control / evac.
- Combined comfort and smoke control ventilation.
Avantage MP Building applications:
- High rise buildings.
- Industrial, commercial & residential buildings.
- Hospitals and care houses.
- Student housing.
- Underground car parks.
- Detention institutes.
- Universities, colleges and schools.
Description
AVANTAGE MP - Automatic Smoke Control Damper (AOV) - 60-90-120 minutes, with "aesthetic design" grille option
Automatic (AOV) Rectangular EIS smoke control damper (SCD) -fire resistance up to 120 minutes- AA, Multi, C10.000, shaft installation
c/w. grille, including aesthetical, architectural design option
Avantage MP Distinct Product Features
(incl. specifications)
- CE certified against EN 1366-10 and EN 12101-8.
- UKCA certified.
- Single blade ("door" like).
- I certified.
- Minimal pressure loss.
- Up to 1500 Pa, pressure level 3 (high rise buildings).
- Light weight, less than 27 kg (maximum size).
- 24 V d.c. drive (motorized open & close).
- manual also possible.
- Optional mounting frame.
- Optional trailing lead (3 m).
- Optional aesthetical (black) cover plate.
- hiding all drive electronics behind the grill.
Avantage MP Installer & User Benefits:
- "Easy" installation compared to many other
- No need for special tooling.
- Screws or mortar mounting (only).
- With or without a (pre-) mounting frame.
- Light weight.
- Maximum free air passage.
- Ultimately leading to lower system investments and energy consumption.
- Allowing the combination of smoke control and comfort ventilation thanks to C10.000 specification.
Avantage MP Range: (Width/Height)
- Smallest: 350 * 385 mm.
- Largest: 700 * 1075 mm.

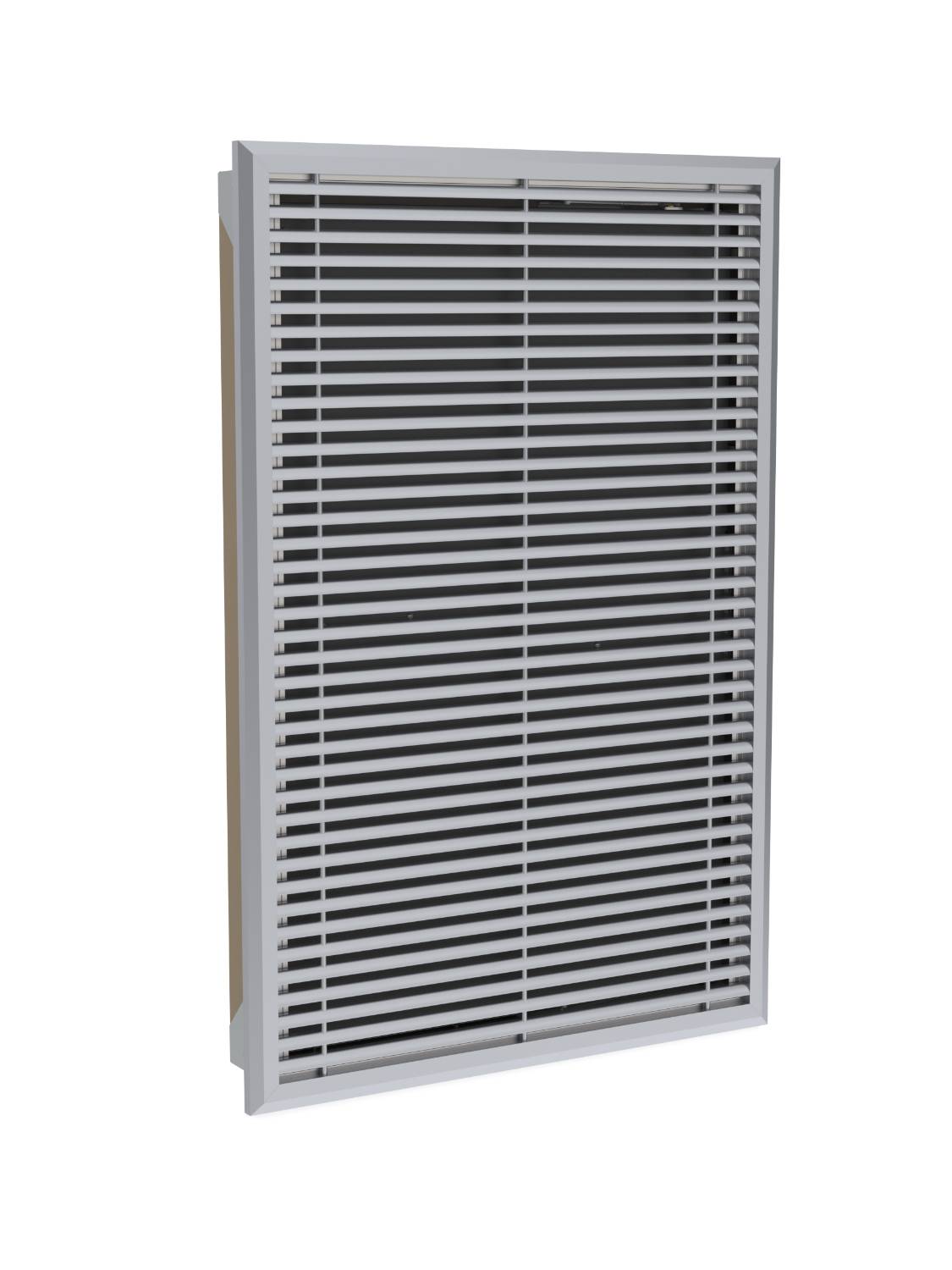

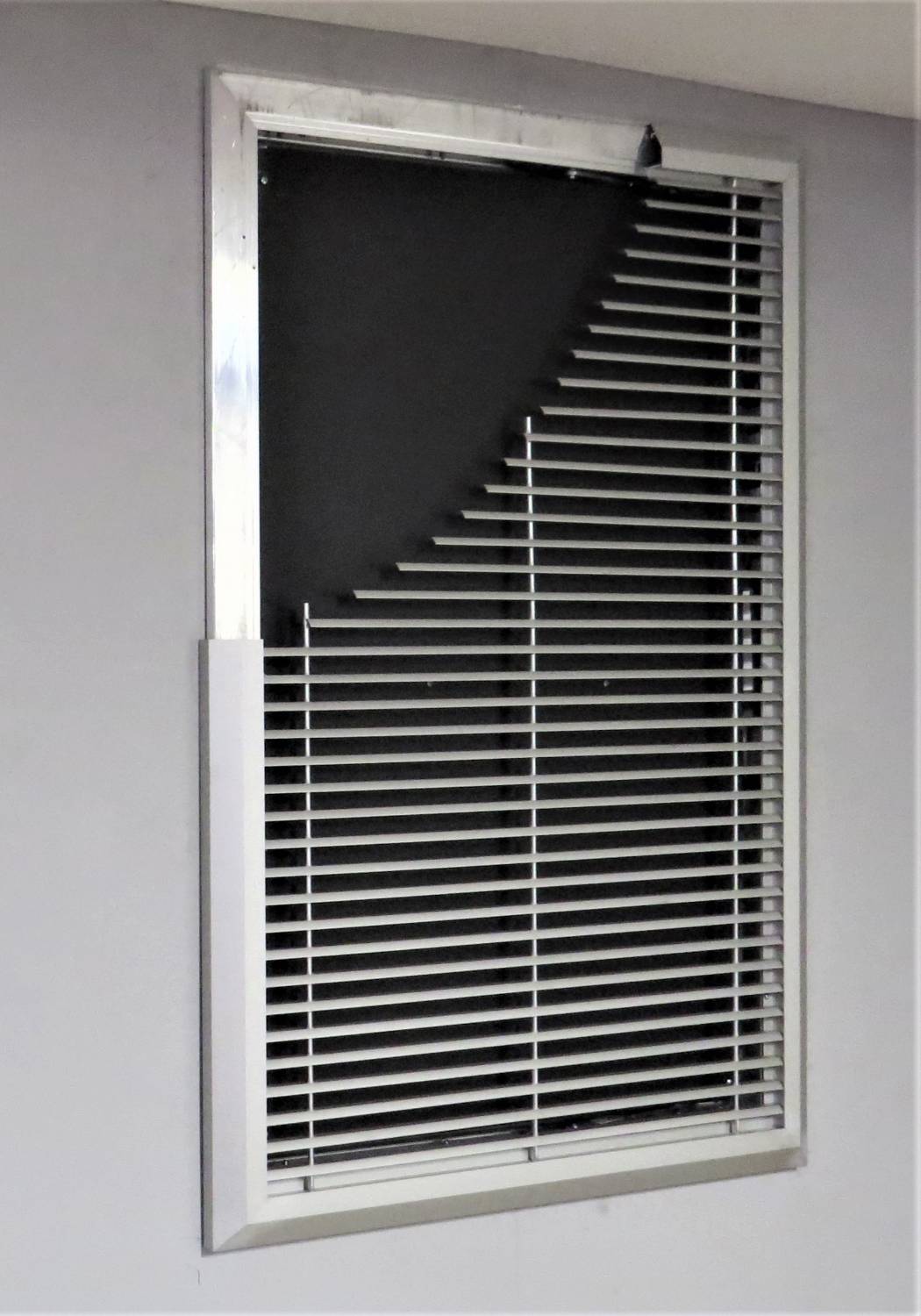

Avantage MP Aesthetical Grille Option:
- Optional aesthetical (black) cover plate.
- hiding all drive electronics behind the grill.
Notes:
- For information about the different types of installation and sealing methods please consult the Avantage MP Product application field and or the Declaration of Performance (DoP).
General information
Color | Silver Other Guidance for specification option: Choice of colour (RAL). |
Finish | Natural |
Material | Aluminium |
Shape | Rectangle |
Length | 250 mm Guidance for specification option: Depth. |
Width | 350 mm 400 mm 450 mm 500 mm 550 mm Manufacturer guidanceNominal. |
Height | 385 mm 415 mm 445 mm 475 mm 505 mm Manufacturer guidanceNominal. |
Warranty description | One year |
Uniclass | |
CAWS | U90/445 Dampers, smoke |
Specification data - Smoke dampers
Standard | To EN 12101-8:2011. |
Classification | |
Standard | To EN 13501-4. |
Multi-compartment | |
Integrity class | EI 90.Guidance for specification option: Minimum. EI 120.Guidance for specification option: Consult manufacturer for installation requirements on how to achieve classification. |
Suitability | Ve duct. |
Smoke leakage | S. |
Under pressures | 1500. |
Inside or outside | (i ↔ o). |
Smoke control use | C10000. |
Activation | AA – automatic. |
Actuators | Motorized - drive open & close, 24 V d.c.Guidance for specification option: -10/ +15%. Motorized - drive open & close, 48 V d.c.Guidance for specification option: -10/ +15%. Not required (manual).Guidance for specification option: Key provided. |
Dimensions | Guidance for specification option: Consult manufacturer's literature for performance details and insert requirements:
Overall height = nominal height + 54 mm. Overall width = nominal width + 54 mm. Consult manufacturer unit weights based on requirements (10.1–31.7 kg). |
Accessories | VD24 - natural magnet 24 V DC. FDCU - Limit switch (open/ closed). EASY-KAP ME/MP - mounting frame. EASY-KGC ME/MP 1V - mounting frame with hinged drop guard grid. TL - trailing lead 3 m for external connection. |
Third-party certification | CE marked EFECTIS_1812_CPR_1830. |
Sustainability data
Material | Aluminium |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
DoP

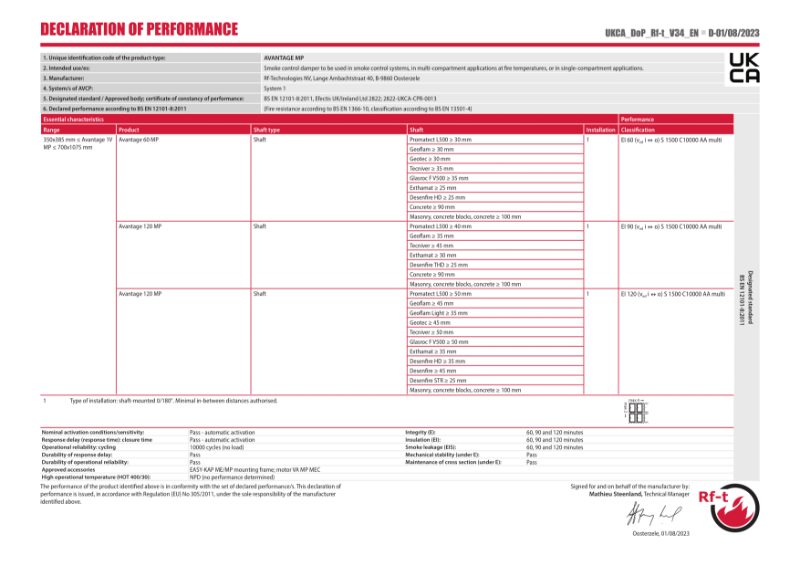

Avantage MP Declaration of Performance (DoP)

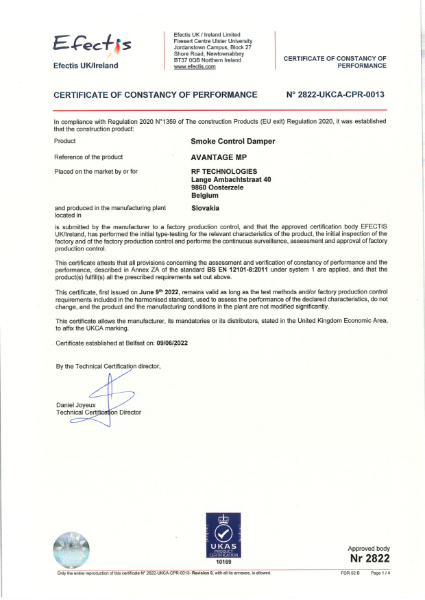

UK Conformity Assessed (UKCA)
Avantage MP UKCA Certificate
Classification report acc. to EN 13501-4
Avantage MP Classification Report
Certificate of Compliance

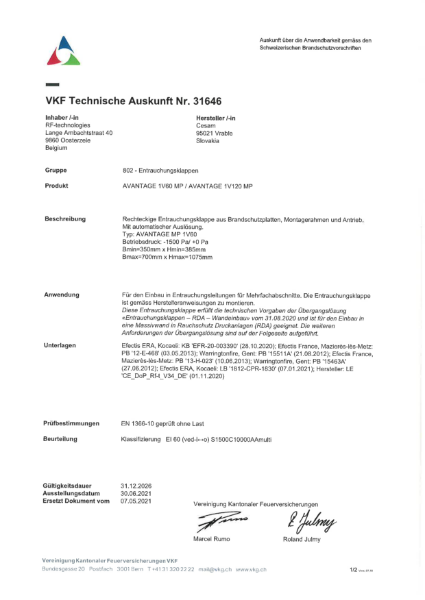

Avantage MP VKF / AEAI certificate
