Application

Designed for use with single hollow metal doors.

Description

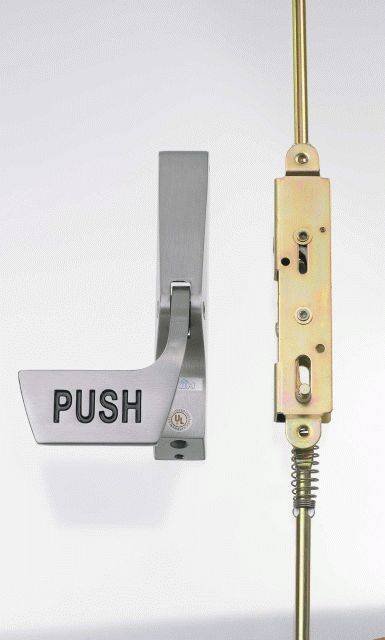

Concealed vertical rod panic exit device, with paddle handle, available in three finishes.


Features and benefits:

  • Heavy duty lever springs and internal mechanism for durable operation of lever and arm.
  • Plated steel and stainless steel components.
  • 8.5 mm diameter steel locking rods with 16 mm throw.
  • Bolt length adjustable ensuring correct alignment.
  • Lever handles are satin chrome finish to complement most door colours and are clearly marked 'PUSH’.
  • Handed, for left or right hand operation.
  • External access options are available.
  • Complies with BS EN 179.

General information

Color

Silver

Finish

-

Manufacturer guidance

[Finish, Anodized silver types are stock items; Other anodized finishes are not always held in stock and are subject to special order and delivery]

Material

Aluminium

Warranty description

One year

Uniclass

Pr_30_36_08_63 Panic exit devicesPrimary

CAWS

P21/32 Panic exit devices

P21/571 Emergency exit devices

P21/577 Panic exit devices

Specification data - Panic exit devices

Standard

To BS EN 179.

Material and finish

Anodized aluminium.

Colour

Silver.

Integral accessories

Not required.

DP-713 Dogging pin.

PH-715-AL Pull handle.

Guidance for specification option:

Silver.

PH-715-ML Pull handle.

Guidance for specification option:

Mill finish.

PH-785-AL-LH Paddle handle.

PH-785-AL-RH Paddle handle.

PRE-7085 Concealed rod mechanism.

RC-700-BZ key blanks.

RE-712 extension rod.

Handing

Left - LHRB.

Right - RHRB.

Type

RC-785-AL.

Guidance for specification option:

Silver.

RC-787-AL.

Guidance for specification option:

Extended, silver.

Manufacturer guidance

Rim Cylinder.

  • For access from outside.
  • An extended version is available.
  • Supplied with two keys. Replacement key blanks are available.

Mounting pad

Not required.

MP-786-AL.

Guidance for specification option:

Silver. Available on request.

Manufacturer guidance

Rim Cylinder.

Size

Guidance for specification option:

Consult manufacturer and insert requirements. Standard model suitable for all door widths up to 2135 mm high.

Manufacturer guidance

Door size.

Sustainability data

Contains Red List materials

No

Country of material origin

Taiwan

Country of product manufacture

Taiwan

Recyclability

Alumnium fully recyclable at end of life
