Axim PR-7100 Series Panic Exit Device

Verified by manufacturer 4 months ago

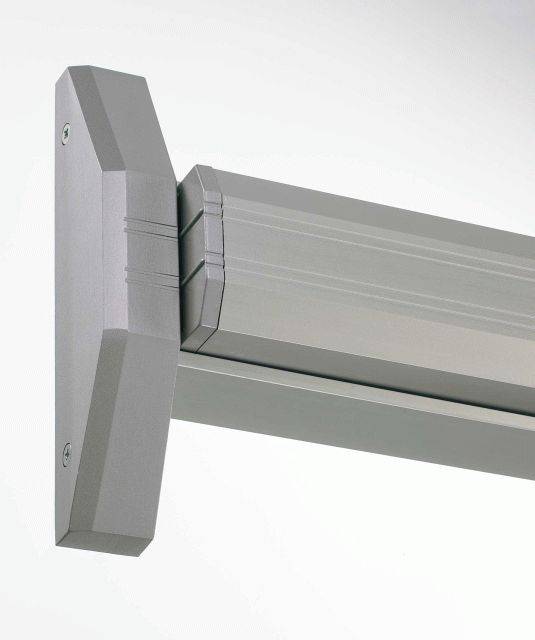

Axim PR-7100-AL Panic Exit Device

Comar Architectural Aluminium Systems Variant:

Concealed rod, soft touch panic exit device.

Jump to:
+44 (0)20 8685 9685 Website

Application

Designed for use with single/double hollow metal doors.

Description

Concealed rod, soft touch panic exit device, available in three finishes.


Features and benefits:

  • Heavy duty lever springs and internal mechanism for durable, smooth operation.
  • Plated steel and stainless steel internal components.
  • 8.5 mm diameter steel locking rods with 16 mm bolt throw.
  • Bolt length adjustable ensuring correct alignment.
  • Extruded aluminium touch bar, with anodized finish and coloured alloy end caps to match.
  • Handed, for left or right hand operation.
  • External acccess options available
  • Complies with BS EN 1125.

General information

Color

Silver

Black

Finish

Anodized

Material

Aluminium

Shape

Other

Warranty description

One year

Uniclass

Pr_30_36_08_63 Panic exit devicesPrimary

CAWS

P21/32 Panic exit devices

P21/577 Panic exit devices

Specification data - Panic exit devices

Standard

To BS EN 1125.

Material and finish

Anodized aluminium.

Colour

Silver.

Integral accessories

Not required.

PEC-7100-AL End covers.

PH-715-AL Pull handle.

Guidance for specification option:

Silver.

PH-715-ML Pull handle.

Guidance for specification option:

Mill finish. For powder coating by others after purchase.

PR-7100-AK Screw pack.

RC-700-BZ key blanks.

RE-712 extension rod.

Guidance for specification option:

For doors over 2135 mm high.

Handing

Left - LHRB.

Right - RHRB.

Type

RC-785-AL.

Guidance for specification option:

Silver.

RC-785-BK.

Guidance for specification option:

Black.

RC-787-AL.

Guidance for specification option:

Extended, silver.

RC-785-AL-S.

Guidance for specification option:

Keyed alike, silver.

Manufacturer guidance

Rim cylinder.

  • For access from outside.
  • An extended version is available.
  • Supplied with two keys. Replacement key blanks are available.
  • A version 'keyed alike' is available.

Mounting pad

MP-786-AL.

Guidance for specification option:

Silver.

MP-786-BK.

Guidance for specification option:

Black.

Manufacturer guidance

Rim cylinder.

Size

Guidance for specification option:

Consult manufacturer and insert requirements.

Standard model suitable for widths as narrow as 700 mm and 2135 mm high.

Manufacturer guidance

Door size.

Sustainability data

Contains Red List materials

No

Country of material origin

Taiwan

Country of product manufacture

Taiwan

Recyclability

Aluminium fully recylable at end of life
