Bailey Zenith™ Expanded Mesh Facade Treatment

Name: Bailey Zenith™ Expanded Mesh Facade Treatment
Brand: Bailey - Total Building Envelope
SKU: jZnMf63FzVVChPuPPXWesj

Verified by manufacturer 10 days ago

Bailey - Total Building Envelope

Third party certifications:

BS EN 13501-1
Certificate type

Ventilated façade system.

Jump to:

+44 (0) 1403 261844 Website

Application

Designed for use in projects requiring air flow through the facade, especially those where air flow restrictions would be hazardous, for example car parks; and where water penetration is not an issue.

It is also used for visually screening otherwise unsightly elements such as structural steelwork.

Description

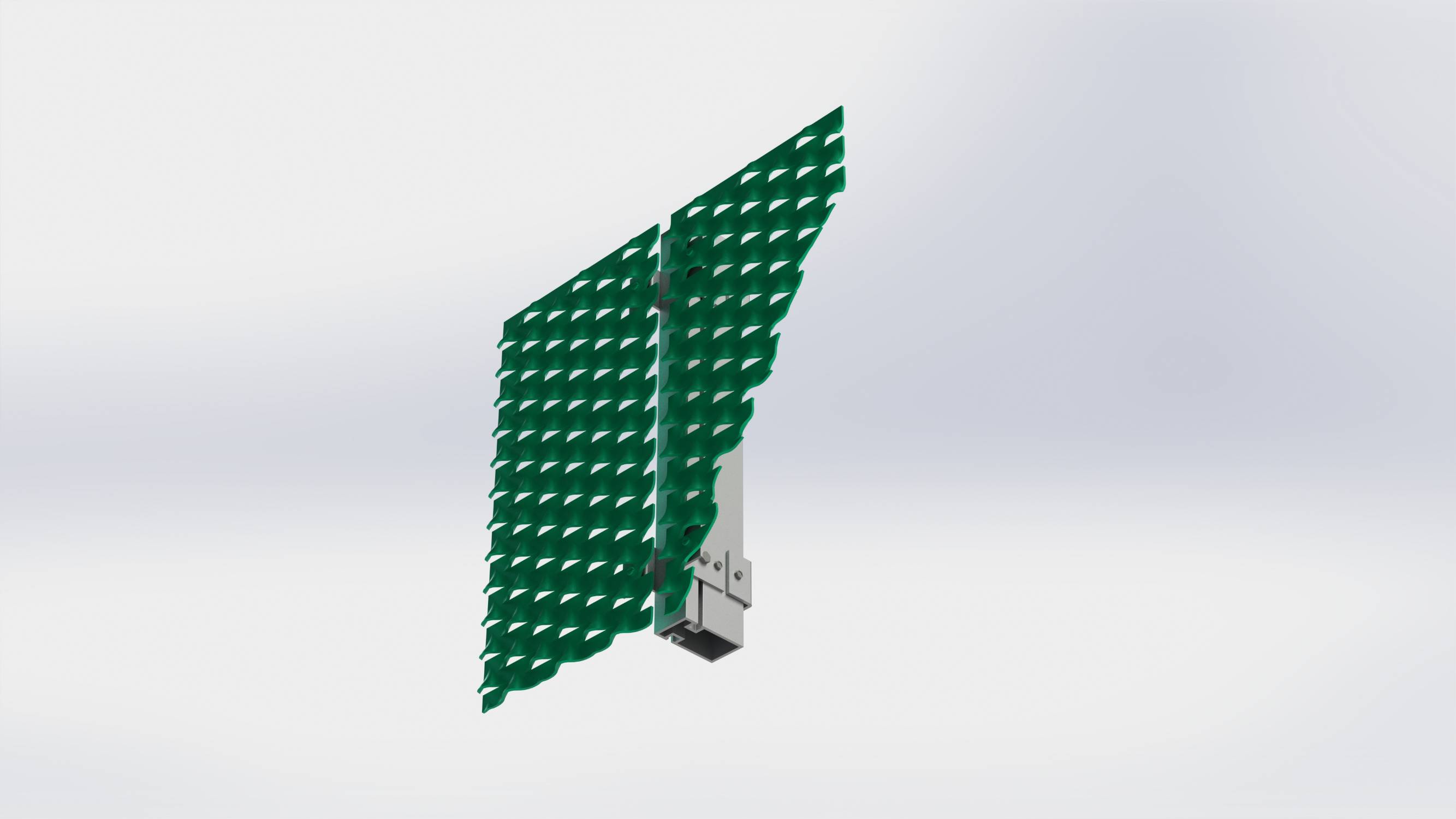

A ventilated façade created using expanded metal which can be used to realise stunning designs. The system is available in framed, or frameless versions providing a complete choice of fix and appearance.

A range of mesh designs are available based on the airflow requirements for the project, with Bailey’s designers available to assist in choosing the best option. Zenith™ can be produced for use in a standard, flat setting or to fit with more complex design features. Finishes include powder coating and anodizing.

Features and benefits:

Ideal where airflow is required e.g., car parks.
Aesthetic solution for concealing unsightly structure
Speedy installation.
Offers design flexibility.

Associated products:

Platinum Modular™;
Platinum Linear™;
Synergy™;
Harmony™;
Samson™ Helping Hands fixing.

General information

Color	Other Manufacturer guidance The product is available in any standard RAL polyester powder coat colour and anodised colour ranges.
Finish	Powder-coated Anodized Natural
Material	Aluminium
Shape	Other Diamond Manufacturer guidance The standard product has an expanded diamond mesh pattern referenced as 200 x 80 x 25 x 3mm
Length	Bespoke Manufacturer guidance Product is available in lengths up to 3000mm
Width	- Manufacturer guidance Product is available in widths up to 1200mm. 1000mm is the preferred width for cost effective material usage
Height	- Manufacturer guidance Product height (or depth actually) is 40mm
Warranty description	- Manufacturer guidance Project specific.

Uniclass	Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary
CAWS	H92/120 Rainscreen cladding K30/170 Mesh panel partitions K30/40 Mesh panel partitions

Product range	Rainscreen Cladding Systems

Specification data - Drained and back-ventilated rainscreen cladding systems

Cladding panels	-
Material	Aluminium mesh panels.

Panel Type	Mesh.
Profile	Flat.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Manufacturing plant location	Horsham RH13 5RF, UK
Material	Aluminium
Recyclability	Fully Recyclable
Expected Life	30 year
