BauderPIR FA-TE Flatboard Insulation

Name: BauderPIR FA-TE Flatboard Insulation
Brand: Bauder Ltd
SKU: fJhucfinSeNiNxncBGBYgS

Verified by manufacturer 30 days ago

Bauder Ltd

Product certifications:

EPD
Certificate type

A polyisocyanurate (PIR) insulation board with an aluminium foil facing.

Jump to:

+44 (0)1473 257671 Website

Application

For use within Bauder warm roof systems to provide efficient thermal insulation. This product has been specially developed for use with Bauder self-adhesive underlayers to allow a superior bond strength.

Description

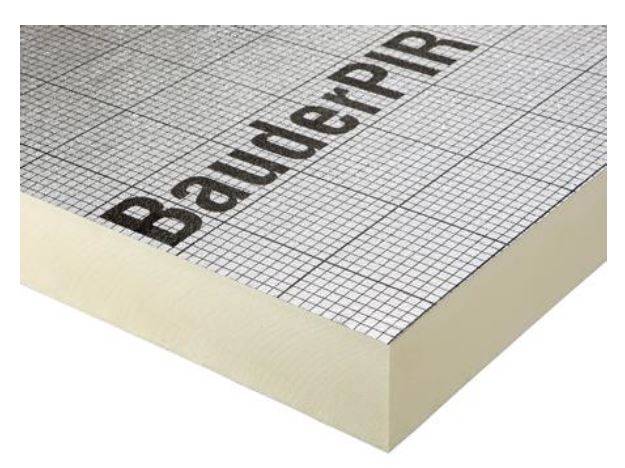

Rigid polyurethane foam board facing on both sides with aluminium foil. The top facing features a printed grid pattern to aide cutting.

Only to be used as part of a full Bauder Waterproofing System.

General information

Finish	Foil Guidance for specification option: Aluminium foil.
Material	Polyisocyanurate (PIR)
Shape	Rectangle
Length	1200 mm
Width	600 mm
Height	30 mm 40 mm 50 mm 60 mm 80 mm 100 mm 120 mm 140 mm 160 mm Show more
Warranty description	- Manufacturer guidance A comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information.

Uniclass	Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary
CAWS	J42/120 Inverted roof covering J42/110 Warm deck roof covering J42/430 Warm deck roof insulation J42/10 Warm deck roof covering

Specification data - Polyisocyanurate (PIR) foam boards

Classification data
Standard	To BS EN 13165.

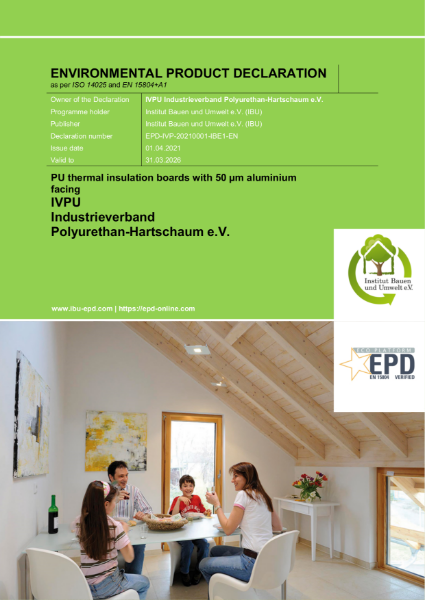

Third-party certification	BBA Certificate 16/5365, EPD-IVP-20140207-IBE1-EN.
Fire performance	To EN 13501-1: Class E.
Thermal conductivity (maximum)	0.022 W/mK.
Compressive strength at 10% deformation	≥0.12 N/mm².
Cross section	Uniform thickness.
Thickness (nominal)	30 mm. 40 mm. 50 mm. 60 mm. 80 mm. 100 mm. 120 mm. 140 mm. 160 mm.
Face size (length x width)	1200 x 600 mm.
Density	30 kg/m³.
Facing	Aluminium foil.
Edges	Square.

Sustainability data

Country of product manufacture	Germany
Material	Polyisocyanurate (PIR)
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 13.8 Manufacturer guidance Please refer to EPD. Value guidance: A1-A3 at 120mm
