Beaufort Slabs | Concrete Paving Slab
Verified by manufacturer 2 months ago
EPD
Certificate type

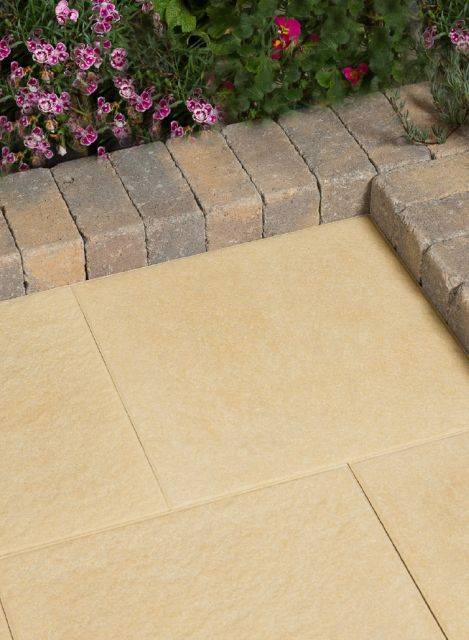

Contoured paving slab manufactured to appear like stone.
Application
Suitable for all pedestrian areas and traffic-free zones.
Description
Contoured paving slab that resembles the aesthetics of natural stone, manufactured to BS EN 1339.
Features and benefits:
- Manufactured with a contoured face.
- Hard-wearing surface.
- Vibrant long-lasting colours.
- Significantly reduced efflorescence.
- BREEAM rating: A. ('A+' rating can be achieved by using a recycled sub-base).
- 100% renewable energy used.
- 100% water used from rainwater harvesting system.
General information
Color | Other Guidance for specification option:
|
Finish | Manufacturer guidanceContoured |
Material | Concrete |
Shape | Rectangle Square |
Length | 400 mm 600 mm |
Width | 400 mm 600 mm |
Height | 40 mm |
Uniclass | |
CAWS | J21/465 Precast concrete paving slabs J21/85 Precast concrete paving slabs J31/370 Precast concrete paving slabs J31/80 Precast concrete paving slabs J41/465 Precast concrete paving slabs J41/90 Precast concrete paving slabs Q25/31 Concrete flag paving systems Q25/315 Concrete flags |
Product range |
Specification data - Concrete flags
Standard | To BS EN 1339. |
Physical properties | |
Colour | Buff.Charcoal.Natural. |
Finish | Contoured. |
Dimensions and associated tolerances | |
Nominal sizes | 400 x 400 x 40 mm.600 x 600 x 40 mm. |
Tolerances on diagonals | ±2 mm (length and width). |
Weathering resistance | ≤1.0 kg/m² as a mean with no individual value >1.5 kg/m² Class 3. |
Slip resistance | Extremely low (>75 USRV). |
Bending strength | Not less than 3.6 MPa. |
Recycled content (minimum) | Not less than 5%. |
SurfaceLayer | Hard-wearing surface layer with a minimum layer of 4 mm and >390 kg/m³ cement. |
Efflorescence | Minimum 12-hour vapour curing to significantly reduce the possibility of efflorescence. |
Strength | >3.5 MPa. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Concrete |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 10.27 kg CO₂ eq/m² Manufacturer guidance400 x 400 x 40 mm - 18 kg Co²e/m². 600 x 400 x 40 mm - 17 kg Co²e/m². |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 5 % |
Third party certifications
Third party certifications
EPD
Environmental Product Declaration (EPD) Flags- Classica Flags, Mayfair Step Flag 400x400x50mm, Historic Flags & Circles, Tactile Flags 400x400x50mm, 400x400x40mm Beaufort Flags
Literature
Tobermore Professional Paving Flag Brochure v1.3
