Classica Slabs | Concrete Paving Slab
Verified by manufacturer 2 months ago
EPD
Certificate type
Durable non-slip smooth paving slabs.
Application
Suitable for all pedestrian areas and traffic-free zones.
Description
Classica slabs are on-slip smooth paving slabs with a tough, durable surface finish, available in various sizes and in four standard colours.
Features and benefits:
- 100% Renewable energy used.
- 100% water used from rainwater harvesting system.
- BREEAM rating A (A+ can be achieved when used with recycled sub-base).
Consult with the latest British Standard to ensure the correct flag size to suit your application.
General information
Color | Gold Other Guidance for specification option:
|
Finish | Smooth |
Material | Concrete |
Shape | Square |
Length | 400 mm 450 mm 600 mm |
Width | 400 mm 450 mm 600 mm |
Height | 32 mm 40 mm 50 mm 35 mm |
Uniclass | |
CAWS | Q25/52 Concrete flags Q25/315 Concrete flags |
Product range |
Specification data - Concrete flags
Standard | To BS EN 1339. |
Physical properties | |
Colour | Buff.Charcoal.Natural.Golden. |
Finish | Smooth. |
Profile | |
Arrises | Chamfered edge. |
Dimensions and associated tolerances | |
Nominal sizes | 400 x 400 x 32 mm.400 x 400 x 40 mm.450 x 450 x 35 mm.450 x 450 x 50 mm.600 x 600 x 40 mm. |
Tolerances on plan dimension and thickness (nominal) | Guidance for specification option: Tolerances:
|
Slip resistance | Extremely Low (>45 USRV). |
Recycled content (minimum) | Not less than 5%. |
Strength | >3.5 MPa. |
Efflorescence | Minimum 12 hour vapour curing to significantly reduce the possibility of efflorescence. |
BREEAM rating | A (A+ can be achieved when used with recycled sub-base). |
Surface finish | Hard wearing surface layer with a minimum layer of 4 mm and >390kgs/m³ cement. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Concrete |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidance
|
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceNot less than 5% |
Third party certifications
Certified
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
EPD

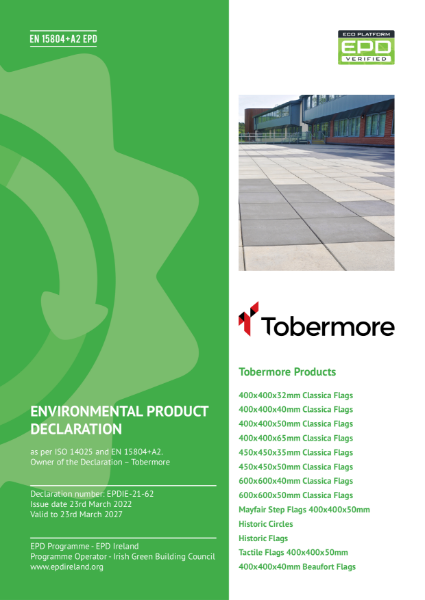

Environmental Product Declaration (EPD) Flags- Classica Flags, Mayfair Step Flag 400x400x50mm, Historic Flags & Circles, Tactile Flags 400x400x50mm, 400x400x40mm Beaufort Flags
Literature
Tobermore Professional Paving Flag Brochure v1.3
