BEMO Combi-Bar Liner Deck System

Name: BEMO Combi-Bar Liner Deck System
Brand: BEMO Project Engineering UK Ltd
SKU: pNScyrfWmJZXo9sjRVR5Xx

Verified by manufacturer 21 hours ago

0.11 W/m²·K - N65

BEMO Project Engineering UK Ltd

Product certifications:

BBA Agrément Certificate
Certificate type
European Technical Approval (ETA)
Certificate type

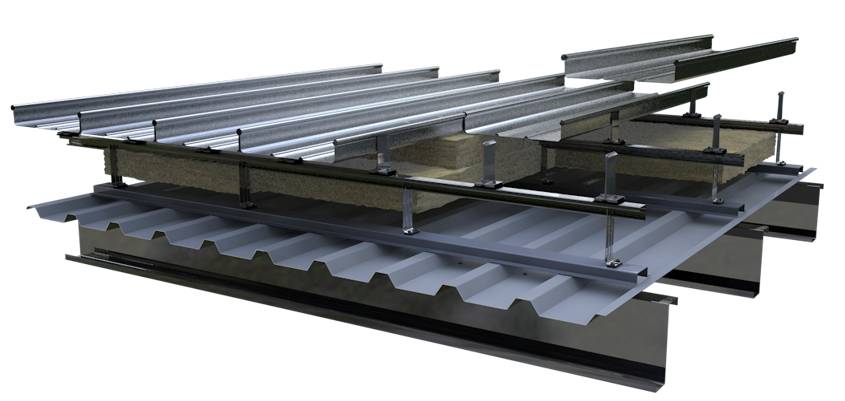

BEMO aluminium halter on a liner deck.

Jump to:

+44 (0)1773 853694 Website

Application

Suitable for roofs 1.5–70° pitch.

Description

BEMO standing seam aluminium panel on various height aluminium halters; 5 mm barrier pads, various height combi-bar bracket system, fixed to various height top-hat sections, through the vapour control layer to liner deck.

Features and benefits:

Non-penetrative.
For roofs 1.5–70° pitch.
BBA Agrément Certificate.
In compliance with ISO 9001, 14001, and 45001.
Halter height and top-hat height determined by thermal calculation – please contact BEMO technical for specific u-value requirements.

General information

Color	Grey White Other
Finish	Mill PVdF Anodized Zinc plated Embossed Other Show more
Material	Aluminium Steel Other
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Ss_30_40_65_50 Metal profiled sheet self-supporting roof covering systemsPrimary
CAWS	H31/10 Metal H31/120 Metal

Specification data - Metal profiled sheet self-supporting roof covering systems

Classification data
Liner sheets	-
Material	TP 32-200-1000 TS structural liner deck, 0.7 mm, BWLE, steel.
Primary fasteners	- Manufacturer guidance Refer to BEMO calculations for fixing type and frequency and insert requirements.
End and side laps	Stitched. Guidance for specification option: Side laps of sheets to be stitched together with rivets. Side laps must be stitched as each adjacent sheet is laid. Minimum 65 mm to coincide with purlin / support position. Subject to project engineering requirements.
Air and vapour control layer	-
Material	BEMO Clear (>500 MN s/g). BEMO Foil (>7000 MN s/g). BEMO Foil-Plus (A2, s1, d0). Manufacturer guidance Lay as work proceeds ensuring continuity with reflective side facing the interior of the building. Vertical and horizontal overlaps should be a minimum of 150 mm.
Sealing	Tape. Guidance for specification option: Seal all edges of overlaps and perimeter with the appropriate VCL tape (as recommended by BEMO).
Thermal insulation	Superglass Cladding Mat 32 – 340 mm thick compressed to 320 mm. Manufacturer guidance Dependent on halter centres, please contact BEMO Technical for project specific calculations. Acoustic slabs can also be included, accommodate acoustic requirements.
External sheets	-
Material	Aluminium profiled sheets, N65/400. Aluminium profiled sheets, N65/305. Aluminium profiled sheets, N65/333. Aluminium profiled sheets, N65/500. Aluminium profiled sheets, N65/ Bespoke cover width. Aluminium profiled sheets, N65/ Tapers. Manufacturer guidance Other materials available – please contact BEMO to discuss.
Primary fasteners	- Manufacturer guidance Please refer to BEMO Technical for project specific fixed-point calculations.
Secondary fixings	- Manufacturer guidance Closure of roll-formed profile by means of mechanical seaming around the head of supporting halters.
System accessories	- Manufacturer guidance As per project requirements.
External finish	Natural stucco embossed mill finish (SEMF). PVdF painted finish. Anodized. Eurazinc. BEMO-FLON.
Thermal break	Thermal barrier pads (402-CB12) 5 mm thick.
Verge detail	Extruded aluminium alloy (EN AW 6063 T6) verge channel. Extruded aluminium alloy (EN AW 6063 T6) gable hooks. Fabricated aluminium alloy (EN AW 1050A) tolerance flashing. Manufacturer guidance Verge components.
Ridge detail	Extruded aluminium alloy (EN AW 6063 T6) zed spacer. Fabricated aluminium alloy ridge filler plates. Profiled ridge filler blocks (LDPE) to suit. Manufacturer guidance Ridge components.
Eaves detail	Profiled eaves filler blocks (LDPE) to suit. Self-adhesive (PUR Flexible Foam) eaves tape. Extruded aluminium alloy (EN AW 6063 T6) drip angle. Manufacturer guidance Eaves components.
Halters	Extruded aluminium alloy halters - 100 mm. Extruded aluminium alloy halters - 120 mm. Extruded aluminium alloy halters - 140 mm. Extruded aluminium alloy halters - 160 mm. Extruded aluminium alloy halters - 180 mm. Extruded aluminium alloy halters - 200 mm. Extruded aluminium alloy halters - 220 mm. Manufacturer guidance Varying heights available, consult manufacturer and insert requirements. Please refer to BEMO Technical for project specific u-value calculations.
Top hats	Fabricated galvanized structural steel (S280GD minimum) top hats - bespoke heights. Aluminium top hats - bespoke heights. Manufacturer guidance Varying heights available, consult manufacturer and insert requirements. Please refer to BEMO Technical for project specific u-value calculations.
Bracket	Galvanized structural steel combi-bar and bracket system. Manufacturer guidance Varying heights available, consult manufacturer and insert requirements.
