BEMO GFK Structural Deck System

Name: BEMO GFK Structural Deck System
Brand: BEMO Project Engineering UK Ltd
SKU: hoVTzG5xeBK8WqapYwnFFA

Verified by manufacturer 22 hours ago

0.13 W/m²·K - N65

BEMO Project Engineering UK Ltd

Product certifications:

BBA Agrément Certificate
Certificate type
European Technical Approval (ETA)
Certificate type

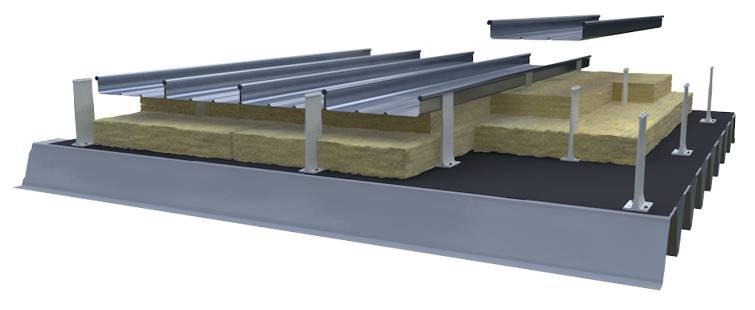

BEMO GFK thermal halter on a structural deck.

Jump to:

+44 (0)1773 853694 Website

Application

Suitable for roofs 1.5–70° pitch.

Description

BEMO standing seam aluminium panel on various height GFK halters; 20 mm spacer pads (if required) fixed to various height top-hat sections, through the vapour control layer to deck.

Features and benefits:

Non-penetrative.
For roofs 1.5–70° pitch.
BBA Agrément Certificate.
In compliance with ISO 9001, 14001, and 45001.
Halter height and top-hat height determined by thermal calculation – please contact BEMO technical for specific u-value requirements.

General information

Color	Grey White Other
Finish	Mill PVdF Anodized Zinc plated Embossed Other Show more
Material	Aluminium Steel Other
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Ss_30_40_65_50 Metal profiled sheet self-supporting roof covering systemsPrimary
CAWS	H31/10 Metal H31/120 Metal

Specification data - Metal profiled sheet self-supporting roof covering systems

Classification data
Liner sheets	-
Material	TP 32-200-1000 TS structural deck, steel. TP 35-150-900 TS structural deck, steel. TP 46-225-900 TS structural deck, steel. TP 100-233.33-700 TS structural deck, steel. TP 135-310-930 TS structural deck, steel. TP 137-310-930 TS structural deck, steel. TP 153-280-840 TS structural deck, steel. TP 159-250-750 TS structural deck, steel. TP 200-375-750 TS structural deck, steel. TP 210-424-600 TS structural deck, steel. Manufacturer guidance Structural deck (subject to calculations). Thicknesses available: 0.7 mm, 0.9 mm, 1.2 mm. Consult manufacturer and insert requirements.
Primary fasteners	- Manufacturer guidance Refer to BEMO calculations for fixing type and frequency and insert requirements.
End and side laps	Stitched. Guidance for specification option: Side laps of sheets to be stitched together with rivets. Side laps must be stitched as each adjacent sheet is laid. Minimum 65 mm to coincide with purlin / support position. Subject to project engineering requirements.
Air and vapour control layer	-
Material	BEMO Clear (>500 MN s/g). BEMO Foil (>7000 MN s/g). BEMO Foil-Plus (A2, s1, d0). Manufacturer guidance Lay as work proceeds ensuring continuity with reflective side facing the interior of the building. Vertical and horizontal overlaps should be a minimum of 150 mm.
Sealing	Tape. Guidance for specification option: Seal all edges of overlaps and perimeter with the appropriate VCL tape (as recommended by BEMO).
Spacers	Not required. Spacer pad (PPC 7712) 20 mm. Guidance for specification option: Optional.
Thermal insulation	Superglass Cladding Mat 32 – 320 mm thick compressed to 300 mm. Manufacturer guidance Dependent on halter centres, please contact BEMO Technical for project specific calculations. Acoustic slabs can also be included, accommodate acoustic requirements.
External sheets	-
Material	Aluminium profiled sheets, N65/400. Aluminium profiled sheets, N65/305. Aluminium profiled sheets, N65/333. Aluminium profiled sheets, N65/500. Aluminium profiled sheets, N65/ Bespoke cover width. Aluminium profiled sheets, N65/ Tapers. Manufacturer guidance Other materials available – please contact BEMO to discuss.
Primary fasteners	- Manufacturer guidance Please refer to BEMO Technical for project specific fixed-point calculations.
Secondary fixings	- Manufacturer guidance Closure of roll-formed profile by means of mechanical seaming around the head of supporting halters.
System accessories	- Manufacturer guidance As per project requirements.
External finish	Natural stucco embossed mill finish (SEMF). PVdF painted finish. Anodized. Eurazinc. BEMO-FLON.
Verge detail	Extruded aluminium alloy (EN AW 6063 T6) verge channel. Extruded aluminium alloy (EN AW 6063 T6) gable hooks. Fabricated aluminium alloy (EN AW 1050A) tolerance flashing. Manufacturer guidance Verge components.
Ridge detail	Extruded aluminium alloy (EN AW 6063 T6) zed spacer. Fabricated aluminium alloy ridge filler plates. Profiled ridge filler blocks (LDPE) to suit. Manufacturer guidance Ridge components.
Eaves detail	Profiled eaves filler blocks (LDPE) to suit. Self-adhesive (PUR Flexible Foam) eaves tape. Extruded aluminium alloy (EN AW 6063 T6) drip angle. Manufacturer guidance Eaves components.
Halters	GFK thermal halter - 125 mm. GFK thermal halter - 165 mm. GFK thermal halter - 205 mm. GFK thermal halter - 225 mm. GFK thermal halter - 245 mm. Manufacturer guidance Varying heights available, consult manufacturer and insert requirements. Please refer to BEMO Technical for project specific u-value calculations.
Top hats	Fabricated galvanized structural steel (S280GD minimum) top hats - bespoke heights. Aluminium top hats - bespoke heights. Manufacturer guidance Varying heights available, consult manufacturer and insert requirements. Please refer to BEMO Technical for project specific u-value calculations.
