BN59SL Brass Stair Nosings - Stair Nosings

Verified by manufacturer 5 months ago

Antique Brass

CAT (Carpet Accessory Trims) Limited Variant:
Third party certifications:
  • Made in Britain

    Made in Britain

    Certificate type

Brass stair nosings with concealed fixings 2.5 mm gauge for carpet, carpet tiles and resilient flooring.

Jump to:
BOS
 +44 (0)1582 561500 Website

Application

  • Suitable to butt to flooring or installed with BNE Nap Detail, for carpet installations.
  • Can be rebated to sit flush in wooden steps.

Description

Brass stair nosing with concealed fixings. Suitable to butt up to flooring, or used with BNE brass nap lock profile, for use with broadloom installations.


Features and benefits:

  • Available in a range of finishes.
  • A wide variety of coloured polyvinyl chloride (PVC) infill options, to offer suitable light reflectance values (LRV) contrasts to the floor covering installed.
  • PVC infills are available in smooth PVC or CAT Castellated PVC, for greater slip resistance value (SRV).
  • Solid brass inserts are available.
  • Also available with Olympic grip carborundum inserts, for use in very high traffic or exterior areas.

General information

Color

-

Manufacturer guidance

Range available dependent on infill and light reflectance values, consult manufacturer for details.

Finish

-

Manufacturer guidance

Available Finishes:

​

  • Polished Brass
  • Satin Brass
  • Antique Brass
  • Antique Bronze

​


Material

-

Manufacturer guidance

Castellated PVC, Brass, Smooth PVC, Carborundum

Shape

-

Manufacturer guidance

Single channel/ square front.


Length

3200 mm

Guidance for specification option:

  • Polished       3.2m


2700 mm

Guidance for specification option:

  • Satin          2.7m
  • Antique Brass   2.7m
  • Antique Bronze 2.7m


Manufacturer guidance

Max Lengths

​

  • Polished       3.2m
  • Satin          2.7m
  • Antique Brass   2.7m
  • Antique Bronze 2.7m


Width

59 mm

Height

30 mm

Uniclass

Pr_35_90_31_74 Rigid stair nosingsPrimary

CAWS

L30/30 Proprietary stairs

L30/310 Proprietary stairs

L30/590 Applied stair nosings

M50/75 Stair nosings and trims

M50/750 Stair nosings and trims

M51/550 Stair nosings and trims

Product range

Brass Stair Nosings

Specification data - Rigid stair nosings

Profile

Single channel/ square front.

Guidance for specification option:

With ramped back edge.

Base section

-

Material

Solid brass grade H/H CZ108.

Finish

Antique brass, LRV 29.55.

Manufacturer guidance

Average LRV.

Size

-

Rise x going

30 x 59 mm.

Gauge

2.5 mm.

Inserts

-

Material

PVC, Castellated.

Guidance for specification option:

  • Interior use only,  for hidden fixings.
  • Pendulum test value (PTV): Dry: 85; wet: 76.


BTI 49.5 castellated brass.

Guidance for specification option:

  • Interior use only, for hidden fixings.
  • Supplied with self-adhesive tape, pre-applied to underside.
  • Slip resistance value (SRV): Dry: 82 TRL; wet: 54 TRL.


PVC, Smooth Textured.

Guidance for specification option:

  • Interior use only,  for hidden fixings.
  • Pendulum test value (PTV): Dry: 65; wet: 56.


Olympic Grip Carborundum.

Guidance for specification option:

  • Interior or exterior use.
  • Slip resistance value (SRV): Dry: 92 TRL; wet: 86 TRL.


Colour

Black LRV:4.25.

Guidance for specification option:

Castellated PVC only.


White LRV:84.22.

Guidance for specification option:

Castellated PVC only.


Light Grey LRV:12.33.

Guidance for specification option:

Castellated PVC only.


Flint LRV:11.27.

Guidance for specification option:

Castellated PVC only.


Granite LRV:7.02.

Guidance for specification option:

Castellated PVC only.


Rustic LRV:5.52.

Guidance for specification option:

Castellated PVC only.


Fawn LRV:11.27.

Guidance for specification option:

Castellated PVC only.


Ivory LRV:37.42.

Guidance for specification option:

Castellated PVC only.


Spruce LRV:6.38.

Guidance for specification option:

Castellated PVC only.


Jade LRV:7.33.

Guidance for specification option:

Castellated PVC only.


Regency LRV:5.16.

Guidance for specification option:

Castellated PVC only.


Mid Blue LRV:6.53.

Guidance for specification option:

Castellated PVC only.


Nimbus LRV:4.77.

Guidance for specification option:

Castellated PVC only.


Peat LRV:5.88.

Guidance for specification option:

Castellated PVC only.


Yellow LRV:54.91.

Guidance for specification option:

Castellated PVC only.


Poppy LRV:10.01.

Guidance for specification option:

Castellated PVC only.


Claret LRV:5.83.

Guidance for specification option:

Castellated PVC only.


Porth Stone LRV:52.91.

Guidance for specification option:

Castellated PVC only.



Polar Grey LRV:42.53.

Guidance for specification option:

Castellated PVC only.

Polished Brass Avg. LRV 71.45.

Guidance for specification option:

Brass BTI Insert only.


Satin Brass Avg. LRV 59.55.

Guidance for specification option:

Brass BTI Insert only.


Antique Brass Avg. LRV 29.55.

Guidance for specification option:

Brass BTI Insert only.


Antique Bronze Avg. LRV 9.15.

Guidance for specification option:

Brass BTI Insert only.


Black LRV 4.47.

Guidance for specification option:

Smooth PVC only.


Light Grey LRV 12.74.

Guidance for specification option:

Smooth PVC only.


Polar Grey LRV 42.73.

Guidance for specification option:

Smooth PVC only.


Porth Stone LRV 53.11.

Guidance for specification option:

Smooth PVC only.


Olympic Black LRV: 4.85.

Guidance for specification option:

Olympic Grip Carborundum only.


Installation

To be supplied pre-drilled and countersunk in the channel for concealed fixing.

To be supplied pre-drilled in the channel for on-site retro fitting of the infill.

To be supplied undrilled for adhesive fixing using F. Ball & Co. Ltd Stycco Flex Rapid Curing Flexible Adhesive.

Length

2700 mm.

Manufacturer guidance

Maximum.

Sustainability data

Country of material origin

Europe

Country of product manufacture

United Kingdom

Material

-

Manufacturer guidance

Castellated PVC, Brass, Smooth PVC, Carborundum

Recyclability

100% recyclable at suitable disposal centres

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

1

IFC
 -

1

Third party certifications

Made in Britain

Made in Britain

Made in Britain

Literature

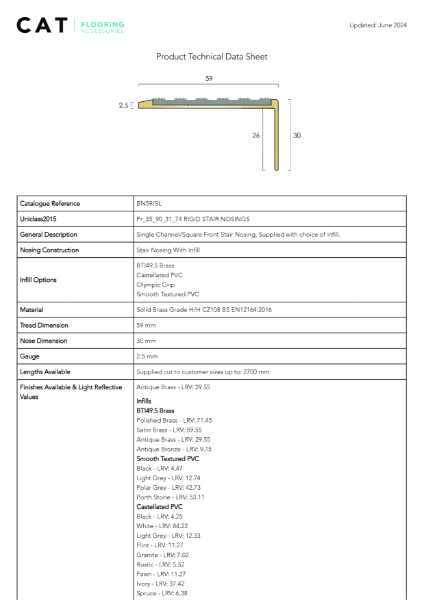

BN59SL ANTIQUE BRASS TDS

BN59SL ANTIQUE BRASS TDS

BN59SL ANTIQUE BRONZE TDS

BN59SL ANTIQUE BRONZE TDS

BN59SL POLISHED TDS

BN59SL POLISHED TDS

BN59SL SATIN TDS

BN59SL SATIN TDS
