BN67 Brass Stair Nosings - Stair Nosings
Verified by manufacturer 7 months ago
Polished brass
Polished brass

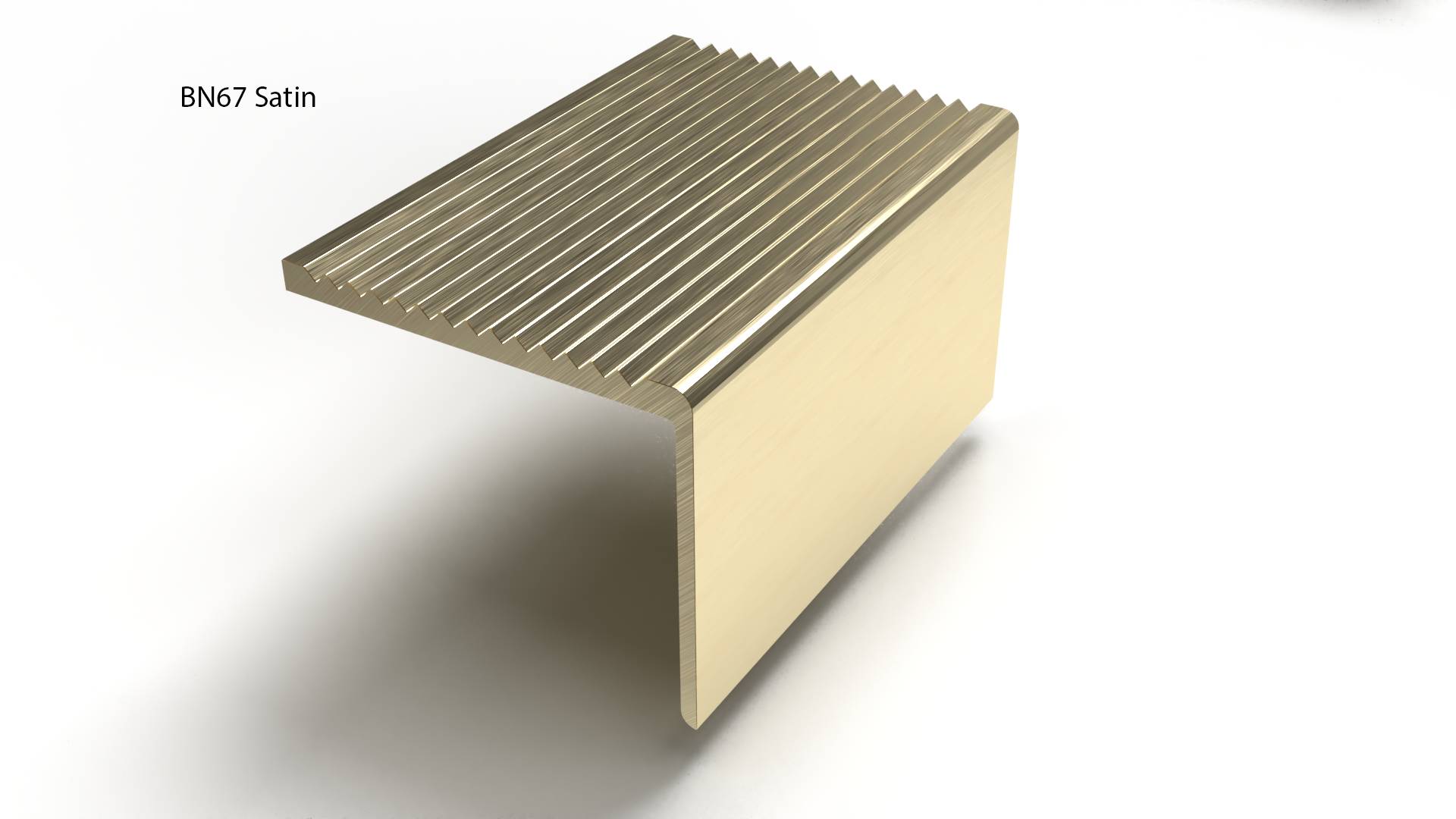

Brass stair nosings 4.6 mm gauge with ribbed tread for carpet, carpet tile and resilient flooring.
Application
- For abutting to carpet and carpet tiles, to finish the nose edge of stairs.
- Can be rebated to sit flush in wooden steps.
- Suitable for medium to high traffic areas.
Description
Solid brass stair nosing with ribbed treads. Suitable to butt up to flooring, or used with BNE brass nap lock profile, for use with broadloom installations.
Features and benefits:
- Suitable for use where a heavy duty 50 x 50 mm visual stair nosing is required.
- Available in a range of four colours.
- Typically installed with carpet or resilient flooring, such as Amtico or Karndean.
General information
Finish | Manufacturer guidanceAvailable Finishes:
|
Material | Brass Guidance for specification option: Solid brass: Grade H/H CZ108. |
Length | 3200 mm 2700 mm Manufacturer guidanceMax Lengths
|
Width | 67 mm |
Height | 55 mm |
Uniclass | |
CAWS | L30/30 Proprietary stairs L30/310 Proprietary stairs L30/590 Applied stair nosings M50/75 Stair nosings and trims M50/750 Stair nosings and trims M51/550 Stair nosings and trims |
Product range |
Specification data - Rigid stair nosings
Profile | Solid ribbed tread/ square front. |
Base section | |
Material | Solid brass grade H/H CZ108. |
Finish | Polished brass, LRV 71.45.Manufacturer guidanceAverage LRV. |
Size | |
Rise x going | 55 x 67 mm. |
Gauge | 4.6 mm. |
Installation | To be supplied pre-drilled and countersunk for flush fit screws. To be supplied undrilled for adhesive fixing using F. Ball & Co. Ltd Stycco Flex Rapid Curing Flexible Adhesive. |
Length | 3200 mm. Manufacturer guidanceMaximum. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Brass Guidance for specification option: Solid brass: Grade H/H CZ108. |
Recyclability | 100% recyclable at suitable disposal centres |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
BN67 ANTIQUE BRASS TDS
BN67 ANTIQUE BRONZE TDS
BN67 POLISHED TDS
BN67 SATIN TDS
Case studies

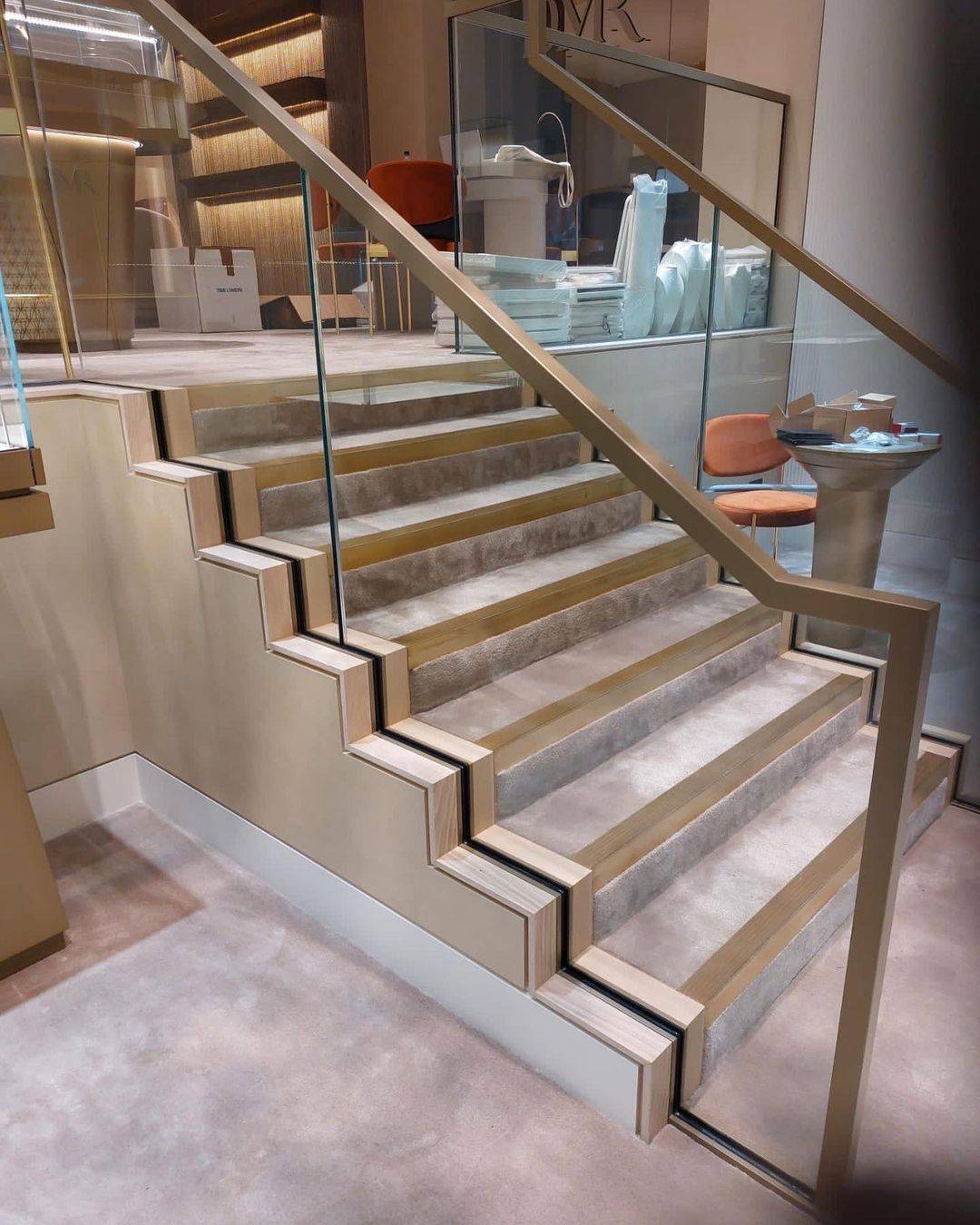

Heythrop Park
