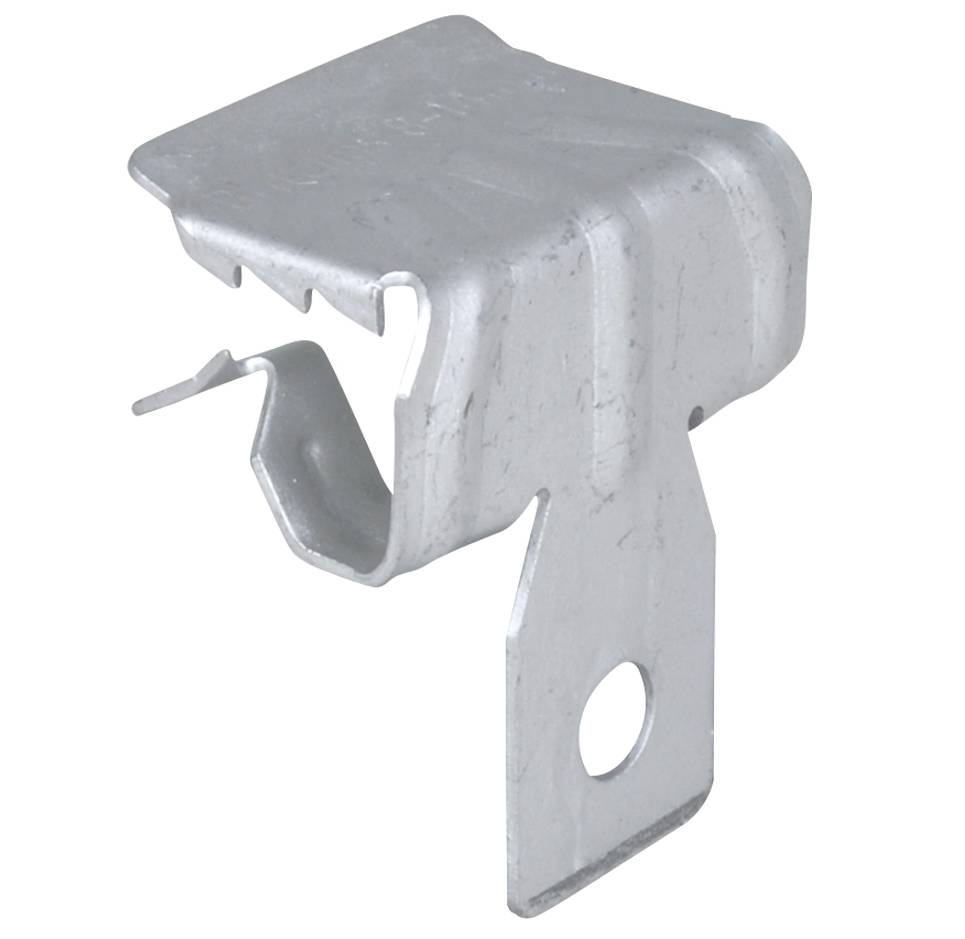

Britclips® - Beam Clip
Verified by manufacturer 1 day ago
BC125
BC125
Beam clips covering flange widths 2–28 mm, providing a solid fixing to steel construction without the need for welding or drilling.
Application

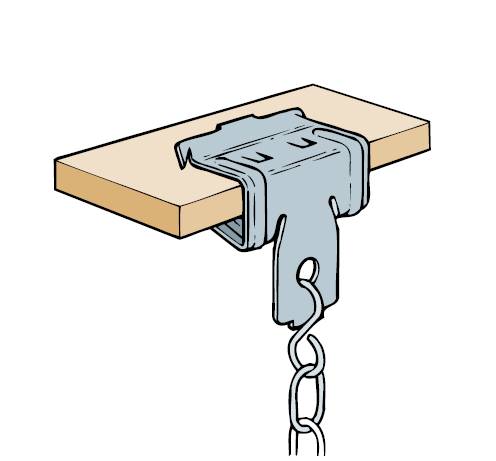

For a solid fixing to steel construction without the need for welding or drilling. For use with static loads only.
Description
Beam clips covering flange widths 2–28 mm, providing a solid fixing to steel construction without the need for welding or drilling.
Features and benefits:
- Includes fixing hole, 6.5 mm diameter, to fix S-hook, bolt/nut, etc.
- Manufactured from spring steel (type CS70).
- Surface treatment: Delta-Tone 9000 (480 hours).
- Available in packs of 25 or 100 (BC1000 in packs of 100 only).
General information
Color | Silver |
Finish | Manufacturer guidanceSurface treatment: Delta-Tone 9000 (480 hours). |
Material | Steel Guidance for specification option: Spring steel, type CS70. |
Uniclass | |
CAWS | P20/30 Proprietary P20/170 Proprietary |
Specification data - Beam clips
Clip type | Hammer on, suitable for S-hook, bolt/nut etc. |
Material | Spring steel, type CS70. |
Finish | Surface treatment: Delta-Tone 9000.Guidance for specification option: 480 hours. |
Load capacity | 450 N. |
Flange size | 2–4 mm.Guidance for specification option: Height: 27 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
