CAB-125 ECOWATT
Low profile acoustic cabinet fans.
Cabinet fan.

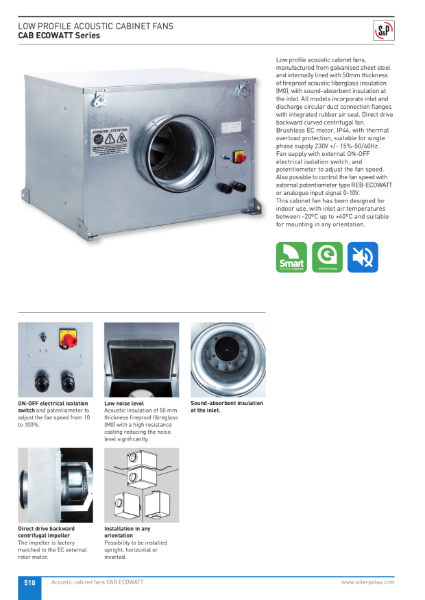

Low profile acoustic cabinet fans, manufactured from galvanised sheet steel and internally lined with 50 mm thickness of fireproof acoustic fiberglass insulation (M0), with sound-absorbent insulation at the inlet. All models incorporate inlet and discharge circular duct connection flanges with integrated rubber air seal. Direct drive backward curved centrifugal fan.
Brushless EC motor, IP44, with thermal overload protection, suitable for single phase supply 230V +/- 15%-50/60Hz. Fan supply with external ON-OFF electrical isolation switch, and potentiometer to adjust the fan speed. Also possible to control the fan speed with external potentiometer type REB-ECOWATT or analogue input signal 0-10V. This cabinet fan has been designed for indoor use, with inlet air temperatures between -20ºC up to +40ºC and suitable for mounting in any orientation.
Consult technical literature for information on performance values including airflow, speed and sound pressure level.
Features and benefits:
Color | Grey |
Finish | Galvanized |
Material | Steel |
Shape | Rectangle |
Warranty description | Two year |
Uniclass |
Standards | |
Configuration category | To ISO 5801. |
Fan blades | Backward inclined plate. |
Duty | |
Air volume | Up to 700 l/s. |
Air temperature | -20°C to 40°C. |
Material | Galvanized sheet steel. |
Accessories | ACOPEL F400 N.Guidance for specification option: Circular flexible couplings. AIRSENS RF.Guidance for specification option: Single-phase speed controller. APC.Guidance for specification option: Discharge protective guard CAR.Guidance for specification option: Non-return damper CONTROL ECOWATT AC/DC.Guidance for specification option: Control element for demand controlled ventilation systems. CONTROL ECOWATT BASIC.Guidance for specification option: Speed control and single-phase ON/ OFF. CPFL-S / CPFL-E.Guidance for specification option: Pressure sensor. KSE-45.Guidance for specification option: Rubber anti-vibration supports that dampen vibrations and reduce the installation’s noise level. (1KSE = 4 supports per bag). REB-ECOWATT.Guidance for specification option: Speed controller. REC.AIRSENS RF.Guidance for specification option: Single-phase speed controller. REMP.Guidance for specification option: Motorised dampers. SCHT-AD.Guidance for specification option: CO2 sensor, temperature and relative humidity with display. SCO2-A.Guidance for specification option: C02 and temperature sensor. SCO2-AD.Guidance for specification option: CO2 and temperature sensor. With display. TDP-D.Guidance for specification option: Pressure transmitter. TDP-S.Guidance for specification option: Pressure sensor. MULTI-REG. |
Weight | 13 kg. |
Size: | 420 x 433 x 389 mm. |
