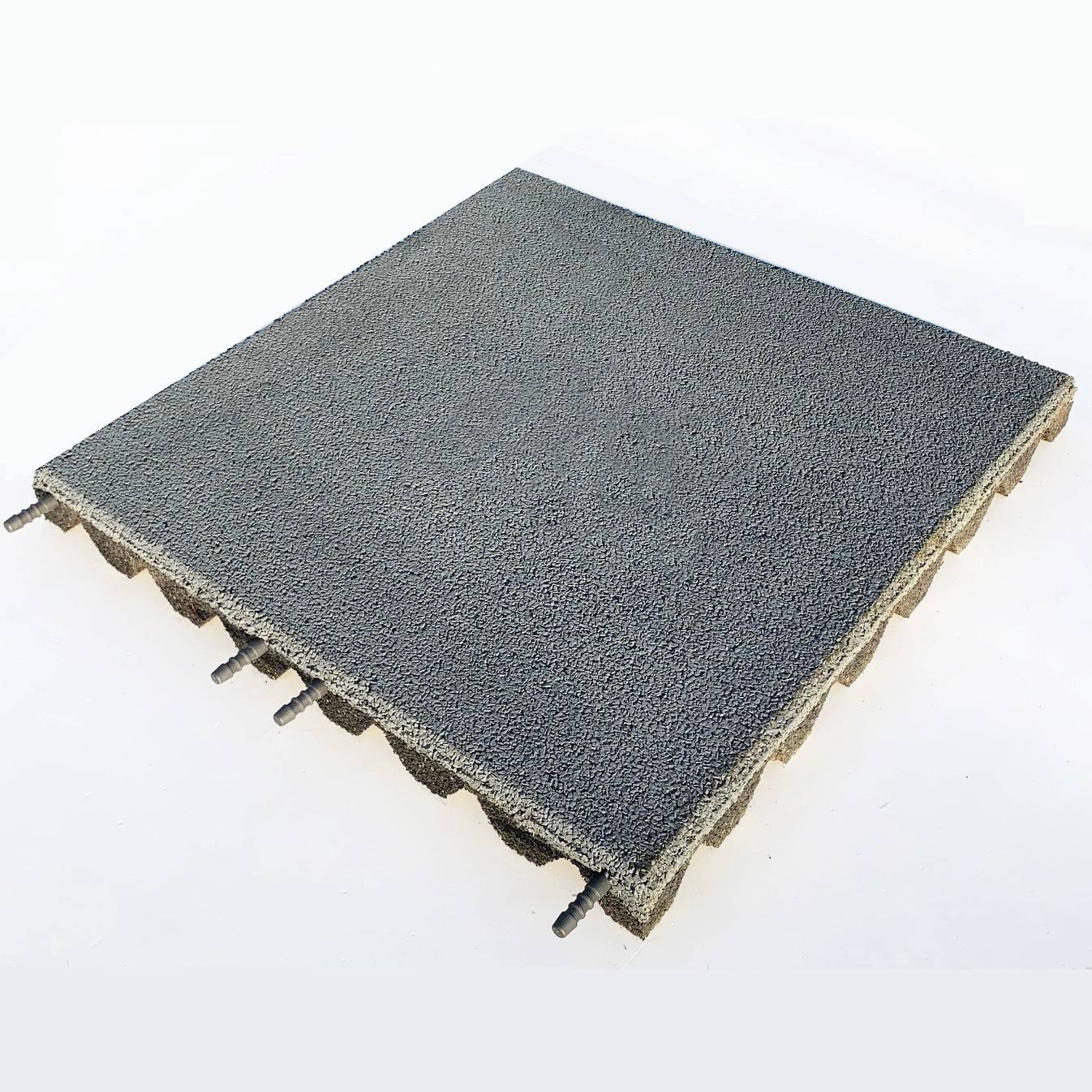

Castleflex EPDM Coated Tile - Rubber Tile
Verified by manufacturer 2 months ago
ISO 9001 Quality Management
Certificate type
Styrene-butadiene rubber (SBR) granulate balcony and promenade tiles with a polyurethane (PU) binding agent and a top layer of ethylene propylene diene monomer (EPDM).
Application
Suitable for use on balconies, flat roofs, walkways and many other applications.
Description
Styrene-butadiene rubber (SBR) granulate balcony/ promenade tiles with a polyurethane (PU) binding agent and a 5 mm top layer of ethylene propylene diene monomer (EPDM).
Supplied with interlocking pins for laying - when the tiles are laid in a brick bond formation with the interlocking pins, they form a large mat-type surface, meaning they only need to be adhered to the surface around the outside edges where an upstand does not exist. This reduces adhesive requirements, but still allows easy inspection of the surface underneath if required.
Features and benefits:
- REACH compliant.
- Provides a high level of fire and smoke resistance.
- Available in a range of colours.
- 100% recyclable.
- TUV certified.
- Manufactured with drainage channels on the underside to allow for water movement.
General information
Color | Black Green Grey Red |
Finish | Anti-slip |
Material | Styrene-butadiene rubber (SBR) EPDM |
Shape | Square |
Length | 500 mm |
Width | 500 mm |
Height | Bespoke |
Warranty description | Three year Guidance for specification option: For wear-resistance. |
Uniclass |
Product range |
Specification data - Ethylene propylene diene monomer (EPDM) rubber tiles
Thickness (minimum) | 25 mm.30 mm.40 mm.45 mm.50 mm.65 mm.80 mm.100 mm. |
Size | 500 x 500 mm. |
Colour | Black.Green forest.Grey charcoal.Red rustic. |
Slip potential | |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | To BS EN 7976 & EN1339 Annex 1, Dry: 102 Wet: 62.Guidance for specification option: Low Potential For Slip. |
Recycled content | 80%. |
Third-party certification | REACH compliant and TUV certified. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Literature
Castleflex Rubber Tile - Install Guide
Castleflex - Coated EPDM
2435 PU Adhesive - Data
