Dflect EPDM Coated Tile - Rubber Tile

Verified by manufacturer 26 days ago

Castle Composites Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Styrene-butadiene rubber (SBR) granulate playground tiles with a polyurethane (PU) binding agent and a top layer of ethylene propylene diene monomer (EPDM).

Jump to:
BOS
+44 (0) 1555 870 003 Website

Application

Suitable for use within playground applications.

Description

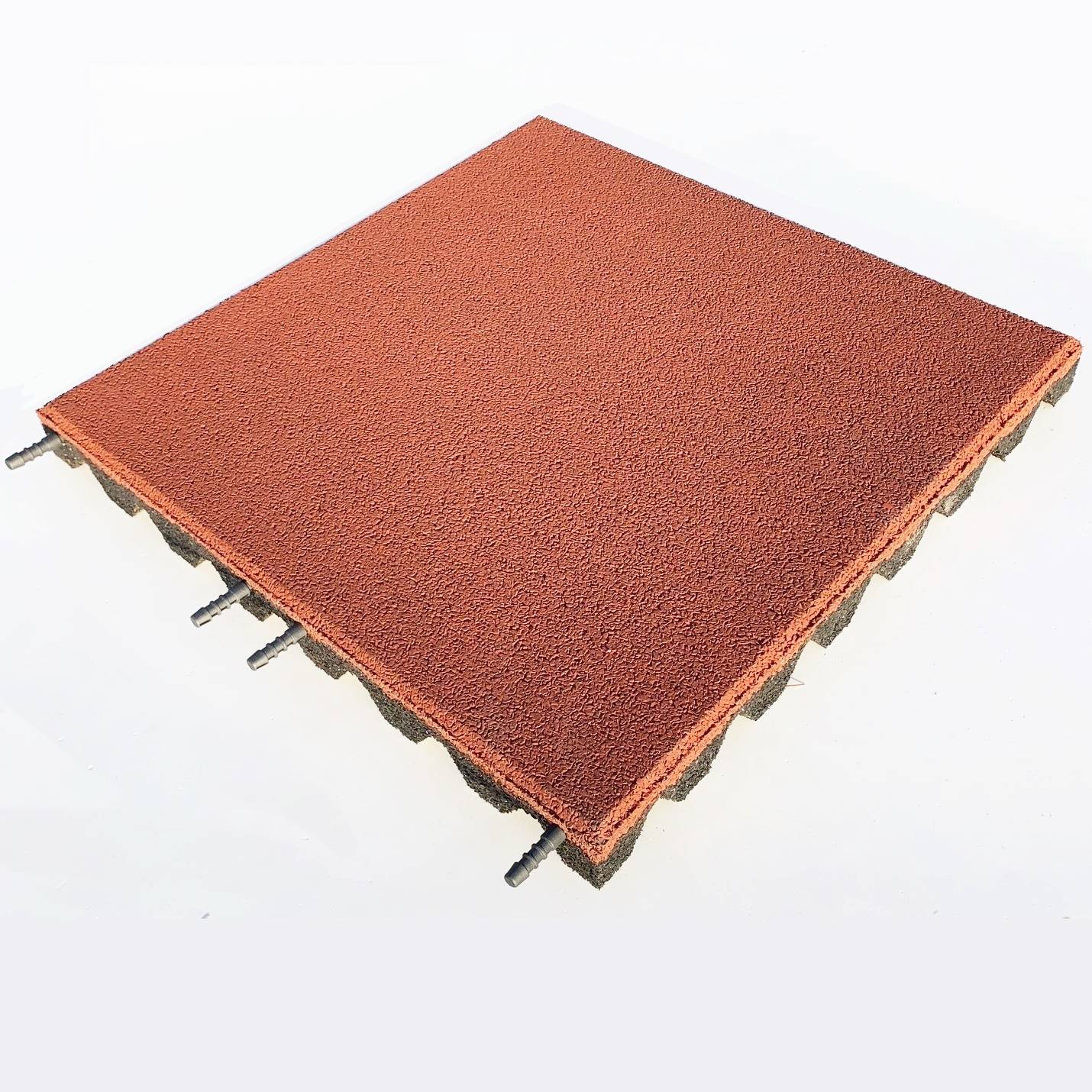

Styrene-butadiene rubber (SBR) granulate playground tiles with a polyurethane (PU) binding agent and a 5 mm top layer of ethylene propylene diene monomer (EPDM).


Features and benefits:

  • REACH compliant.
  • TUV certified.
  • Provides a high level of fire and smoke resistance.
  • Available in a range of colours and sizes.
  • Manufactured in accordance with EN 1177.
  • Three-year guarantee for wear resistance.
  • 100% recyclable.

General information

Color

Black

Green

Grey

Red

Other

Guidance for specification option:

Sand.

Finish

Anti-slip

Material

EPDM

Rubber

Shape

Square

Length

500 mm

Width

500 mm

Height

30 mm

Warranty description

Three year

Guidance for specification option:

  • For wear-resistance, with the exception of tiles that are used intensively.
  • Does not apply to colour.

Uniclass

Pr_35_57_71_25 Ethylene propylene diene monomer (EPDM) rubber tilesPrimary

CAWS

M50/10 Resilient floor tiling

M50/110 Resilient floor tiling

Product range

Rubber Tiles

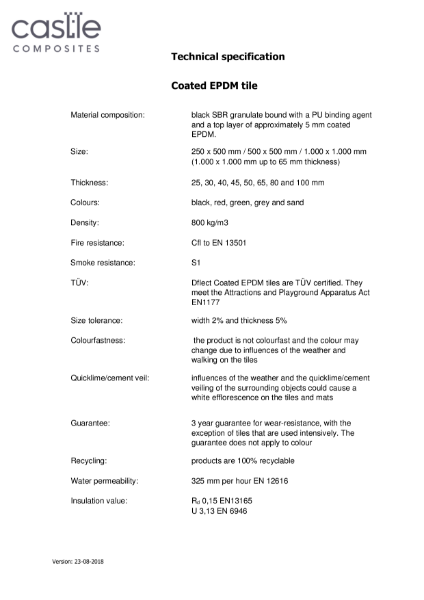

Specification data - Ethylene propylene diene monomer (EPDM) rubber tiles

Standard

To BS EN 1177 and BS EN 1176.

Thickness (minimum)

25 mm.

30 mm.

40 mm.

45 mm.

50 mm.

65 mm.

80 mm.

100 mm.

Size

500 x 500 mm.

Colour

Black.

Green.

Grey.

Red.

Sand.

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

To BS EN 7976 & EN1339 Annex 1, dry: 102 wet: 62.

Guidance for specification option:

Low potential for slip.

Recycled content

80%.

FireRating

CFL to EN 13501-1.

Water permeability

325 mm per hour to EN 12616.

Smoke classification

S1 to EN 13501-1.

Insulation value

Rd: 0.15 to EN 13165; U-value: 3.13 W/m²·K to EN 6946.

Density

800 kg/m³.

Material:

Styrene-butadiene rubber (SBR) with EPDM coating.

Third-party certification

REACH compliant and TUV certified.

Sustainability data

Contains Red List materials

No

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

80 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Certification

Literature

Castleflex - Coated EPDM

Castleflex - Coated EPDM

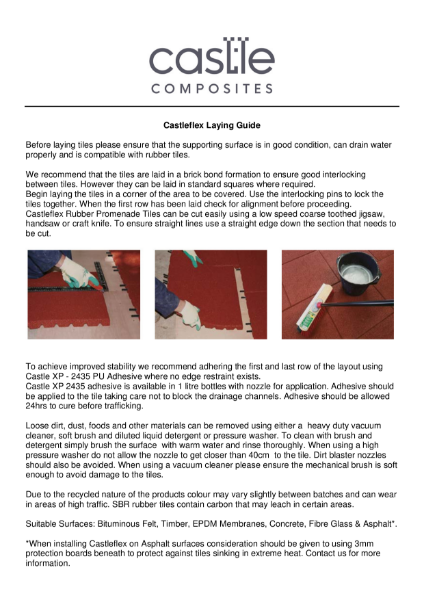

Castleflex Rubber Tile - Install Guide

Castleflex Rubber Tile - Install Guide

Dflect Brochure

Dflect Brochure
