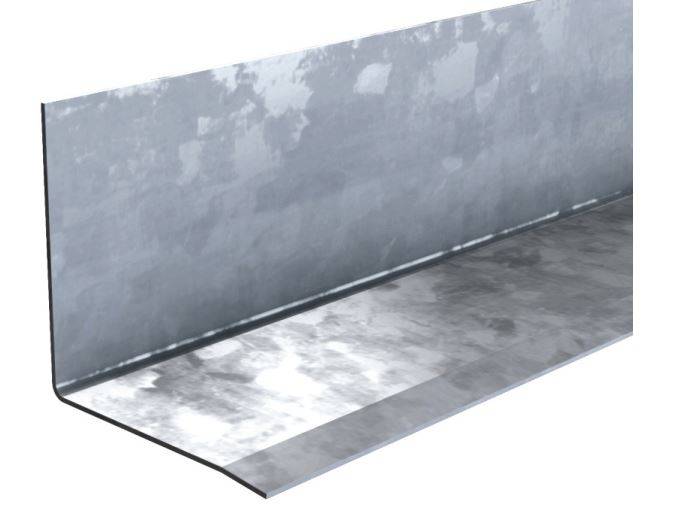

Catnic Single Leaf Angle Lintel

Name: Catnic Single Leaf Angle Lintel
Brand: Catnic, a Tata Steel Enterprise
SKU: jYBfknSqGv94uTaRjGbAGb

Verified by manufacturer 10 days ago

Catnic Single Leaf Angle Lintel Standard Duty – ANG0900

Catnic, a Tata Steel Enterprise

Third party certifications:

BBA Agrément Certificate
Certificate type

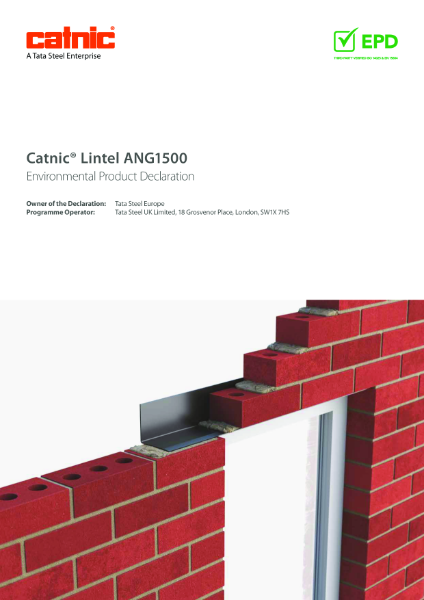

EPD
Certificate type

Single leaf wall lintels.

Jump to:

+44 (0)29 2033 7900 Website

Application

Standard duty steel lintel for use in solid wall construction, designed to support uniform distribution of masonry load. Manufactured from galvanised steel and Catnic's signature black powder coating

Standard duty loading applications.
Prop and laterally restrain during construction.

Description

Browse Catnic single leaf lintels for use over openings in single layer solid masonry wall construction. Available in light and standard duty lintel applications

ANG single leaf angle lintel: Standard Duty.
MBA meter box angle lintel: Light Duty.
Single leaf wall lintels for use in brick or block walls.
Standard lengths are available in increments of 150 mm at lengths up to 3000 mm, 300 mm at 3000–3900 mm.
Supplied in galvanized finish in lengths 750–2400 mm (Duplex Coating available upon request).
Duplex Coating finish in lengths 2550–3900 mm.

Safe working load (SWL) and weight are dependent on lintel's length.

General information

Color	Silver Black
Finish	Galvanized Powder-coated
Material	Steel
Shape	Other
Length	Bespoke
Width	91 mm 88 mm
Height	88 mm 131 mm 167 mm 215 mm 213 mm

Uniclass	Pr_20_85_48_11 Carbon steel lintelsPrimary Pr_20_85_03_50 Masonry angle supports
CAWS	F30/85 Prefabricated steel lintels F30/755 Prefabricated steel lintels

SKU Code	ANG0900, ANG1050, ANG1200, ANG1350, ANG1500, ANG1650, ANG1800, ANG1950, ANG2100, ANG2250, ANG2400, ANG2550, ANG2700, ANG2850, ANG3000, ANG3300, ANG3600, ANG3900, ANG0900

Specification data - Carbon steel lintels

Standard	To EN 845-2.
Lintel type	Single.
Material finish and coating reference	Galvanized. Powder coated.
Sizes	- Manufacturer guidance ANG range: Standard lengths are available in 150 mm increments. Consult technical literature for details. Standard lengths: 900–3900 mm.
Characteristics	-
Deflection under load	Dependent on length specified. Guidance for specification option: Deflection is proportional to the product length. Calculated as follows: (length as specified - 150)/325. Example values - length of 4800 or 1200 mm: (4800-150)/325 = 14.3 mm. (1200-150)/325 = 3.2 mm.
Mass	2.7 kg/m.
Resistance to fire	Non-combustible.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Steel
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	15.2 kg CO₂ eq/unit Manufacturer guidance Refer to EPD.
Recyclability	96%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	17 %
Expected Life	60 year
